1/05

8d-138

DocuColor 12/DCCS50

PL 18.4

Reissue

Finisher/Sorter

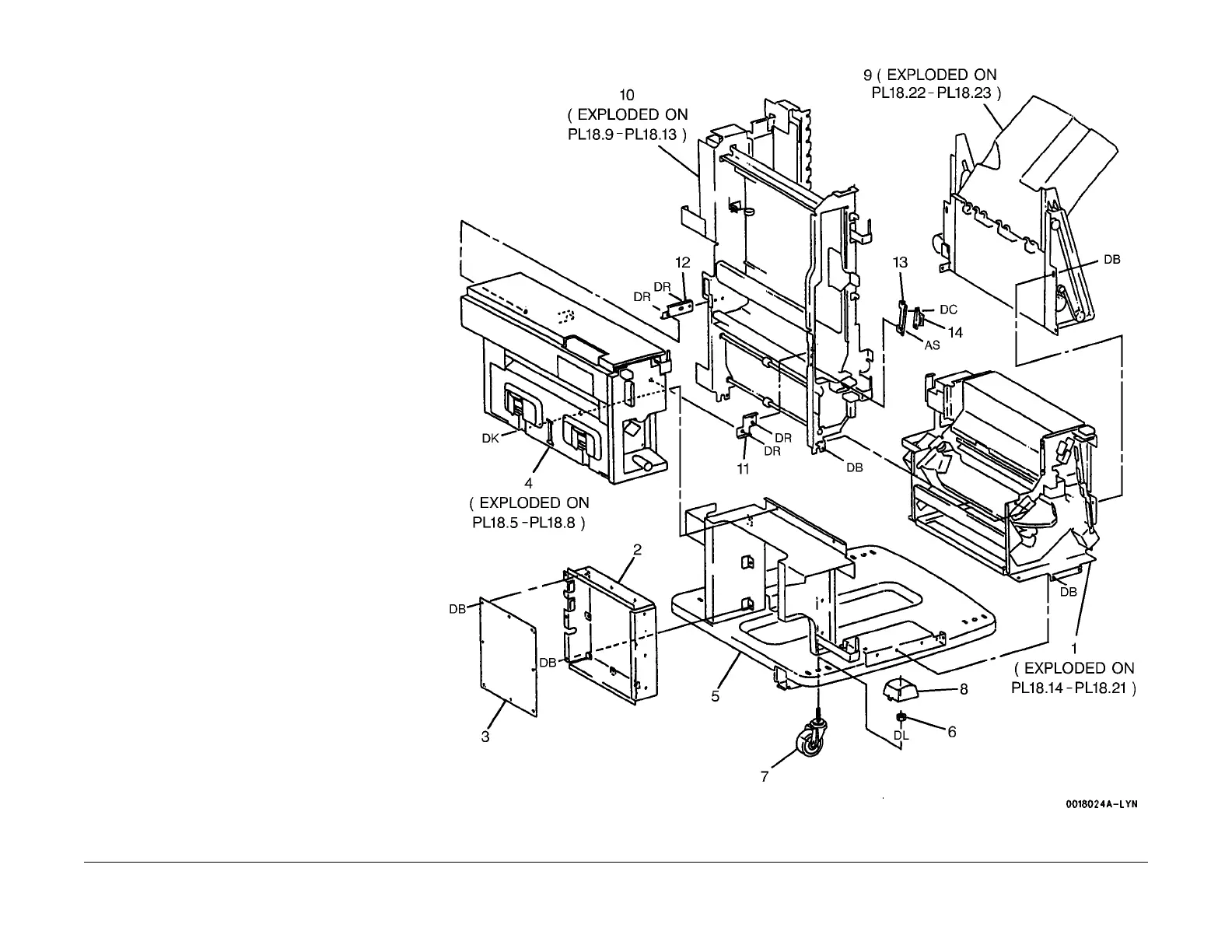

PL 18.4 Finisher Components

Item Part Description

1 – Stapler (Not Spared)

2 – PWB Chassis (Not Spared)

3 160K67951 Finisher PWB (REP 15.3.28)

4 – Decurler (Not Spared) (REP

15.

1.1)

5 – C

abinet (Not Spared)

6 – Nut (Not Spared) (4 Places)

7 417W30349 Caster (4 Places)

8 021E96430 Caster Cap (4 Places)

9 050K41320 Stacker

10 – Mailbox (Not Spared)

11 – Front Bracket (Not Spared)

12 – Rear Bracket (Not Spared)

13 – Magnet Bracket (Not Spared)

14 121E87250 Magnet Catch
