1/05
4-165
DocuColor 12/DCCS50
REP 12.5.3, REP 12.5.4
Repairs and Adjustments
Reissue

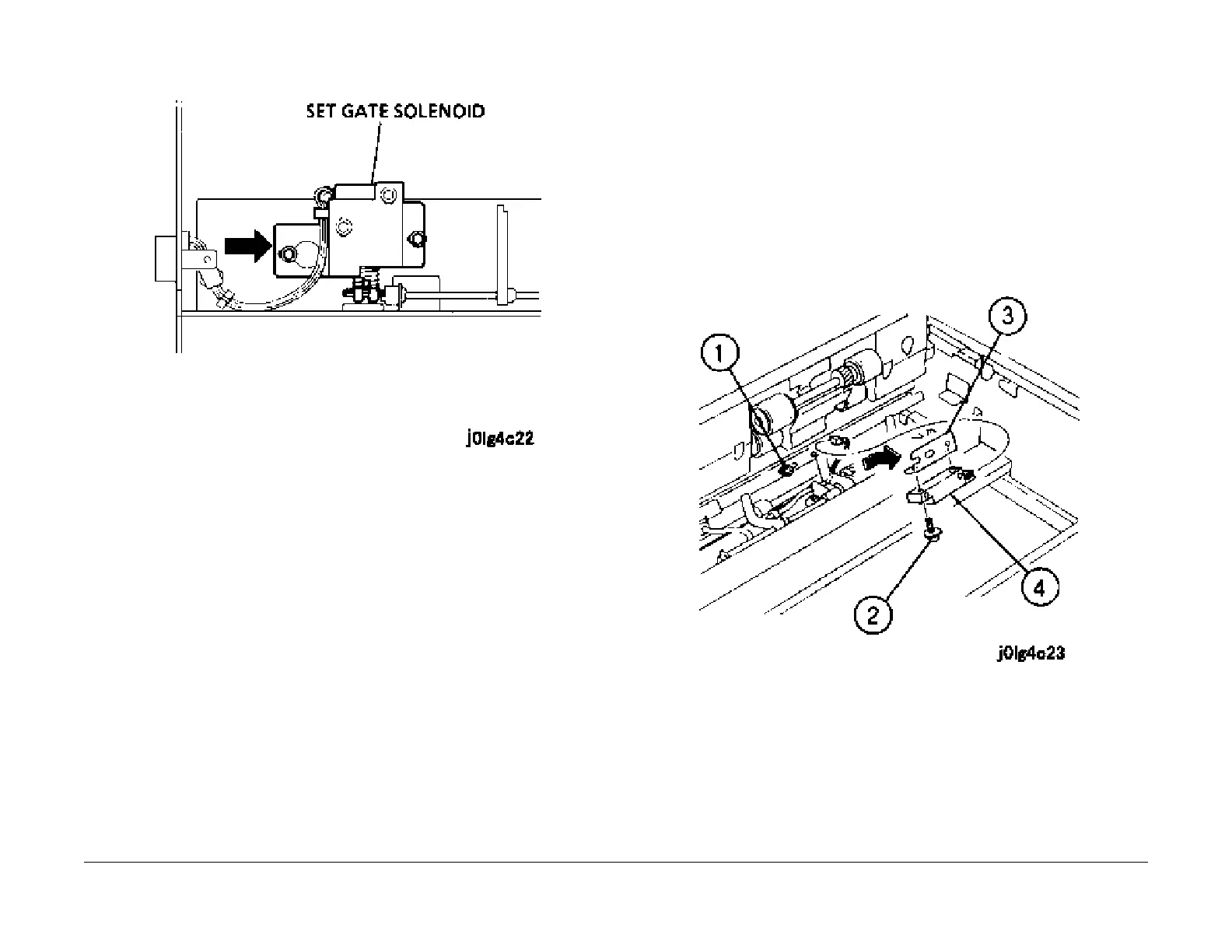

Figure 3 Lock the Set Gate Solenoid
3. Reinstall the remaining parts in the reverse order of disassembly.
REP 12.5.4 Registration Sensor
Parts List on PL 12.5
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Document Feed Lower Chute (REP 12.5.
1).
2. Disconnect P/J580
and remove the Registration Sensor (Figure 1).
1. Loosen the screw.
2. Remove the screw.
3. Remove the bracket.
4. Remove the Registration Sensor.
Figure 1 Remove the Registration Sensor
Installation
1. When installing the Registration Sensor, lock it by matching the bracket hole with the half-
punch (Figure 2).
To Next Page
