DocuColor 12/DCCS50
PL 3.5
Reissue
Parts Lists

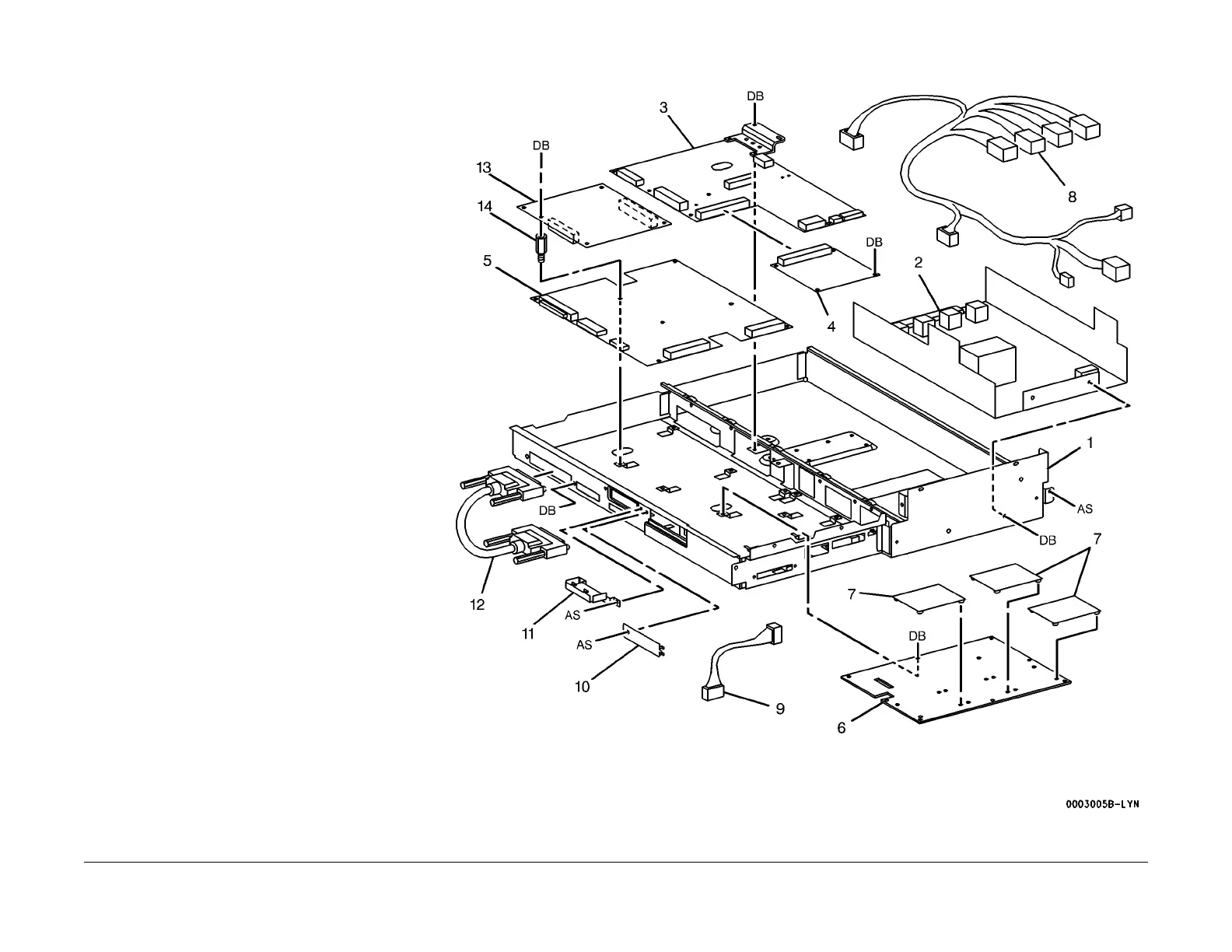

PL 3.5 IPS
Item Part Description
1 – IPS Chassis (Not Spared) (REP
3.5.1 )
2 105E073
51 IIT/IPS LVPS (50 Hz)
– 105E07322 IIT/IPS LVPS (60 Hz)
3 160K57369 Pre. IPS PWB
4 160K42710 BR PWB
– 160K60380 XCD PWB
5 160K84771 Post. IPS PWB
6 160K57375 Mem. Sys PWB
7 160K46113 Option Memory PWB (Duplex)
8 – Wire Harness (DC) (Not Spared)
9 – Wire Harness (AC) (Not Spared)
10 048E62151 Cover
11 – Cover (Not Spared)
12 117E15951 Cable
13 160K53462 IPS Edit PWB
14 – Spacer Screw (Not Spared)
