Xerox DocuColor 12/DCCS50 User Manual

1/05
4-156
DocuColor 12/DCCS50
REP 12.2.2, REP 12.3.1
Reissue
Repairs and Adjustments
REP 12.2.2 Registration Gate Solenoid
Parts List on PL 12.2
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Front Cover (PL 1
2.1).
2. Remove the Registration Gate Solenoid (Figu
re 1).
1. Disconnect the connector.
2. Release the clamps (2) and remove the wire.
3. Loosen the screws (2).
4. Remove the Registration Gate Solenoid.

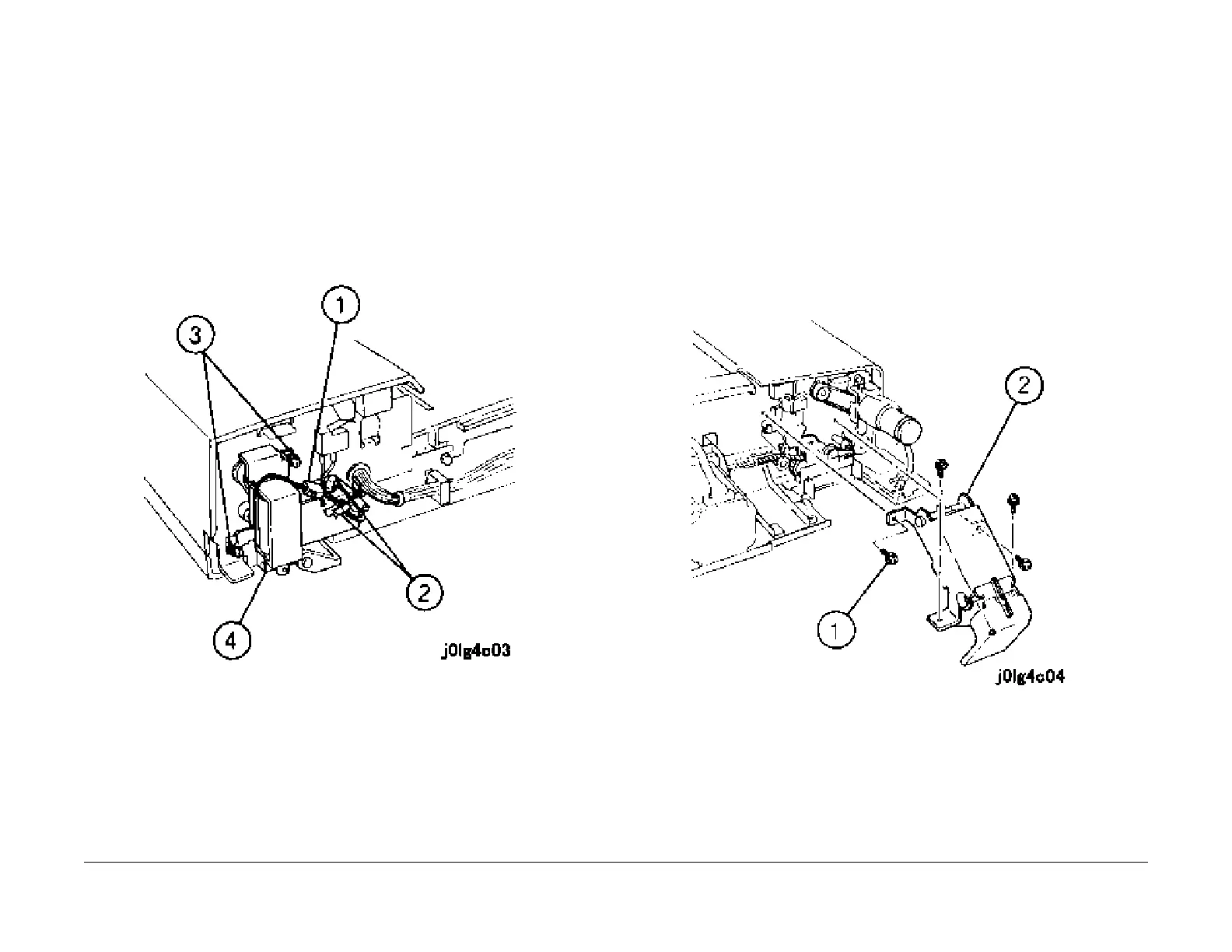

Figure 1 Remove the Registration Gate Solenoid
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 12.3.1 Left/Right Counter Balance
Parts List on PL 12.3
Removal
WARNING
Turn power off and disconnect the power plug.
WARNING
The DADF is heavy (37.5lbs). Take care to avoid injury when handling the DADF.
1. Remove the DADF (REP 12.1.
1).
2. Remove the Rear Cover (PL 12.1).
3. Remove the Left Counter Balance (Figure 1
).
1. Remove the screws (4).
2. Remove the Left Counter Balance.
Figure 1 Remove the Left Counter Balance
4. Remove the Right Counter Balance (Figure
2).
1. Remove the screws (4).
2. Remove the fastening terminals (2).
3. Remove the Right Counter Balance.
