Xerox DocuColor 12/DCCS50

1/05
4-157
DocuColor 12/DCCS50
REP 12.3.1
Repairs and Adjustments
Reissue

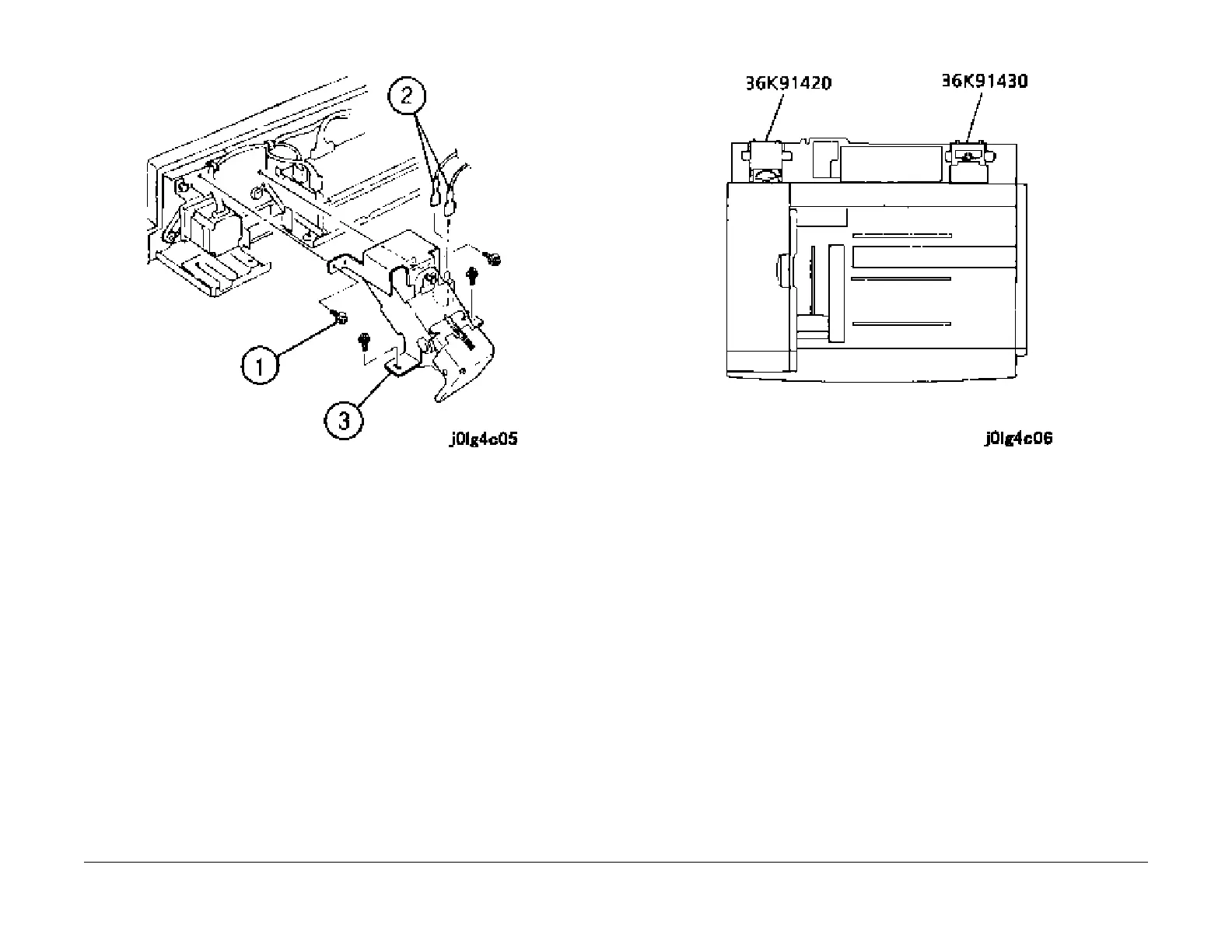

Figure 2 Remove the Right Counter Balance
Installation
1. Make sure to install each counter balance (left/right) on the correct side since the load
applied to each balance is different (Figure 3).
Figure 3 Install the Left/Right Counter Balance
2. Reinstall the remaining parts in the reverse order of disassembly.
