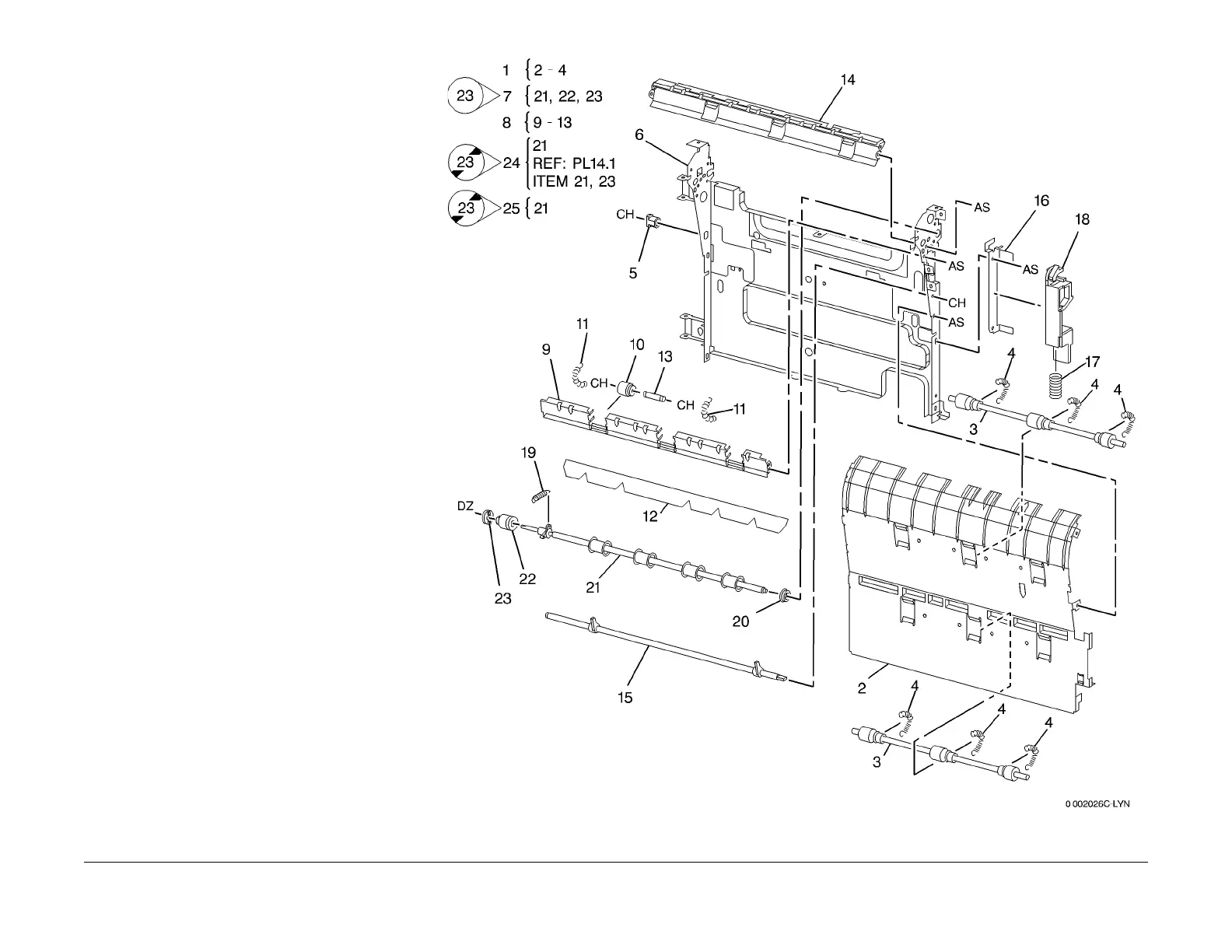

PL 2.26 Inverter 2 Component (Part 2
of 2)
Item Part Description
1 054K10323 Inverter 2 Lower Baffle
2 – Inverter 2 Lower Chute (P/O PL
2.26 It
em 1)
3 – Pinch Roll (P/O PL 2.26 Item 1)
4 009E62420 Spring
5 – Bearing (P/O PL 2.25 Item 3)
6 001K57333 Frame
7 059K14872 Exit Roll Assembly (W/TAG P23)
(RE
P 2.
26.1)
8 054K10333 Inverter 2 Mid.1 Baffle
9 – Chute (P/O PL 2.26 Item 8)
10 059E92841 Pinch Roll
11 – Spring (P/O PL 2.26 Item 8)
12 038E88772 Guide
13 – Shaft (P/O PL 2.26 Item 8)
14 054K11161 Inverter 2 Mid. 2 Baffle
15 – Link Shaft (P/O PL 2.25 Item 3)
16 – Bracket (P/O PL 2.25 Item 3)
17 809E09530 Spring
18 011K94391 Lever
19 – Spring (P/O PL 2.25 Item 3)
20 413W66250 Bearing
21 – Roller Shaft (P/O PL 2.26 Item 7)
22 005K82470 Clutch (One-way)
23 – Stopper (P/O PL 2.26 Item 7)
24 600K79560 Offset Roller Kit (W/O TAG P23)
25 600K83590 Offset Corrugation Mark Roller Kit
(
W/
O TAG P23)
To Next Page
