Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-66
DocuColor 12/DCCS50
REP 15.1.8
Reissue
Finisher/Sorter
REP 15.1.8 Cam Drive Shaft
Parts List on PL 18.7
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Door Assembly (REP 15.
3.4).
2. Decurler Rear Cover (REP 15.3.
13).
3. Decurler Top Cover (REP 15.3
.12).
4. Decurler Inner Cover (REP 15.3.14
).
5. Remove the Reflector and Cam (REP 15.1.
3).

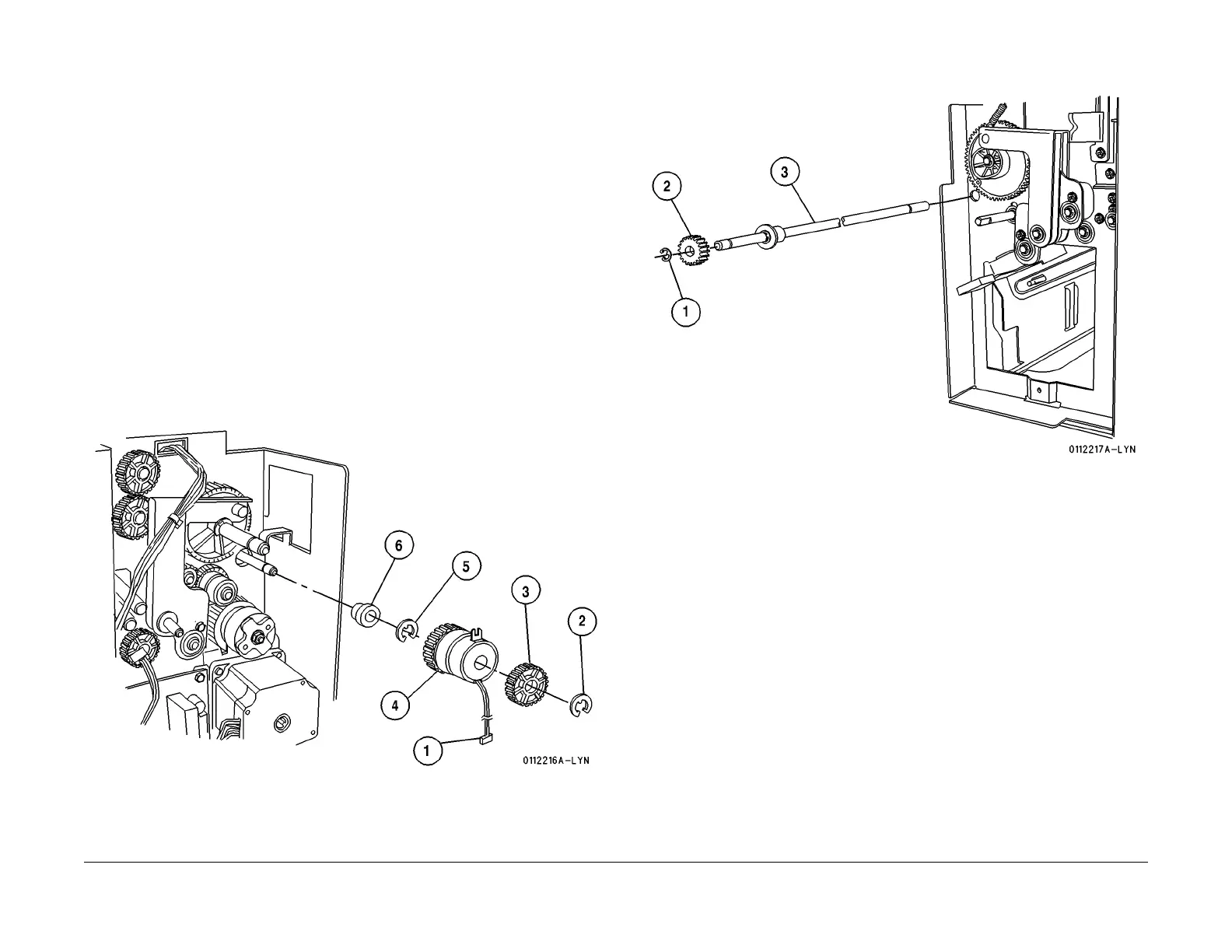

6. Remove the Gear and Decurler Cam Clutch (Figu
re 1).
1. Disconnect the connector from Clutch.
2. Remove E-clip.
3. Remove the Gear.
4. Remove the Decurler Cam Clutch.
5. Remove the E-clip.
6. Remove the Bearing.
Figure 1 Remove the Gear and Decurler Cam Clutch
7. Remove the Cam Drive Shaft (Fi
gu
re 2).
1. Remove the E-Clip.
2. Remove the Gear.
3. Remove the Cam Drive Shaft.
Figure 2 Remove the Cam Drive Shaft
8. Remove the Bearing from the Shaft (Figure 3).
1.
Remove E-Clip
2. Remove Bearing.
