Xerox DocuColor 12/DCCS50 User Manual

1/05
4-49
DocuColor 12/DCCS50
REP 2.26.1
Repairs and Adjustments
Reissue
REP 2.26.1 Exit Roll
Parts List on PL 2.26
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Inverter 2 (REP 2.23.
2).
2. Remove the Exit Roll (Figure 1).
1.
Raise the chute.
2. Remove the spring.
3. Remove the E-clip.
4. Move the bearing in the direction of the arrow.
5. Remove the Exit Roll.
6. Remove the bearing.

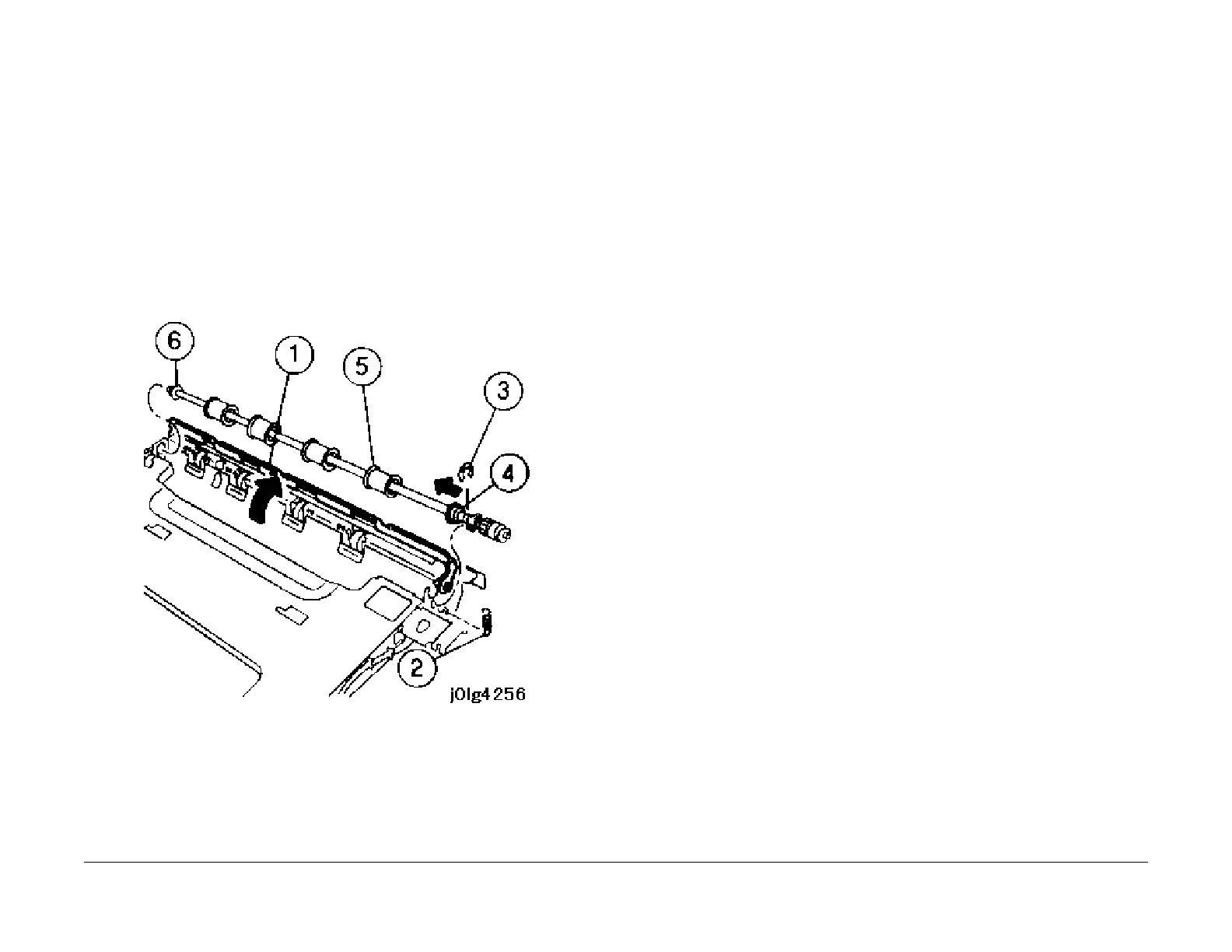

Figure 1 Removing the Exit Roll
Installation
1. Reinstall the parts in the reverse order of disassembly.
