DocuColor 12/DCCS50
Eject/Offset Functional Description
Principles of Operation
Reissue

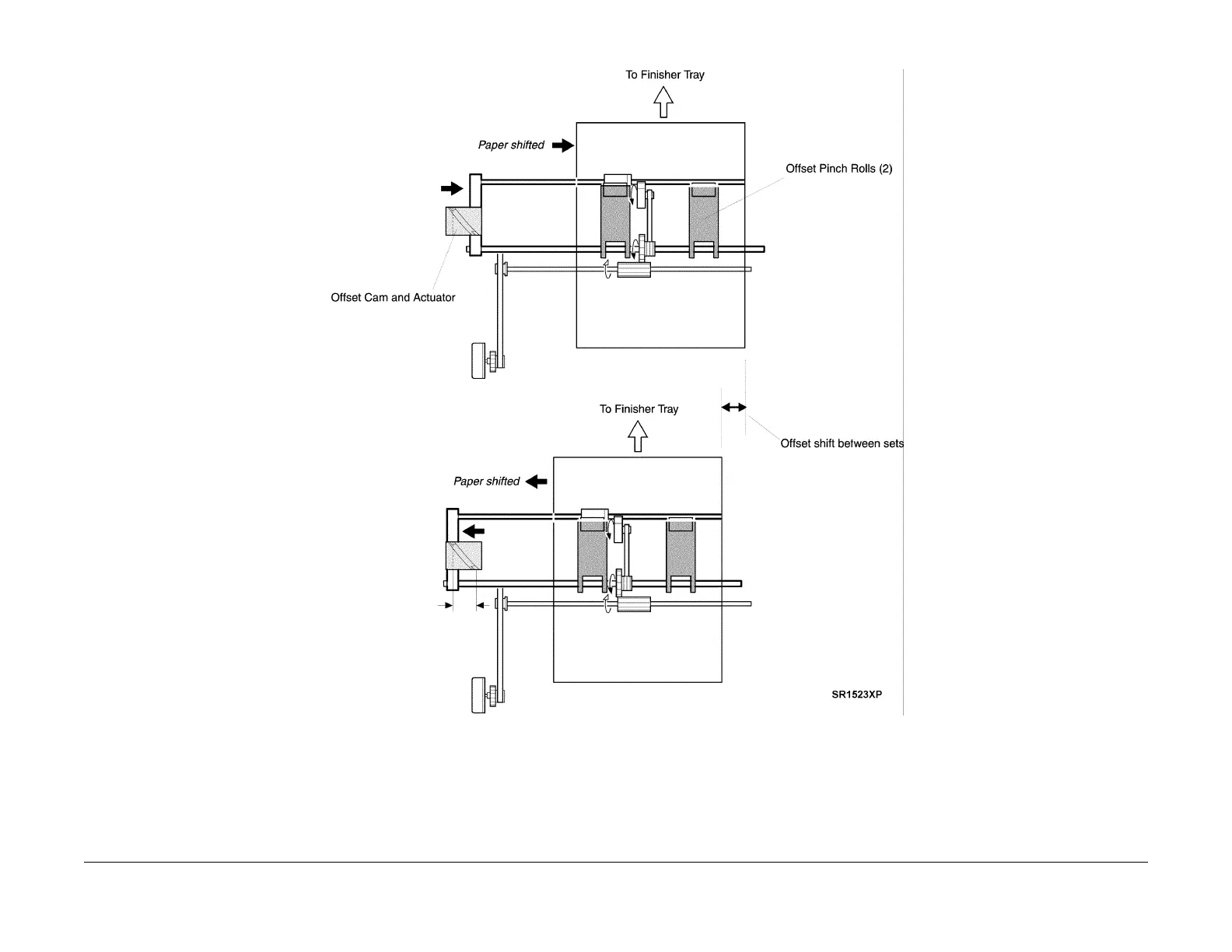

Figure 2 Set Offest Mechanism
Eject/Offset Paper Path Components
1. Pinch Roll Assembly
Shifts alternate paper sets back and forth so they are offset as they stack in the Stacker.
2. Pinch Roll Assembly
Helps drive paper out of the Compiler Tray and into the Stacker.
