Repairs and Adjustments

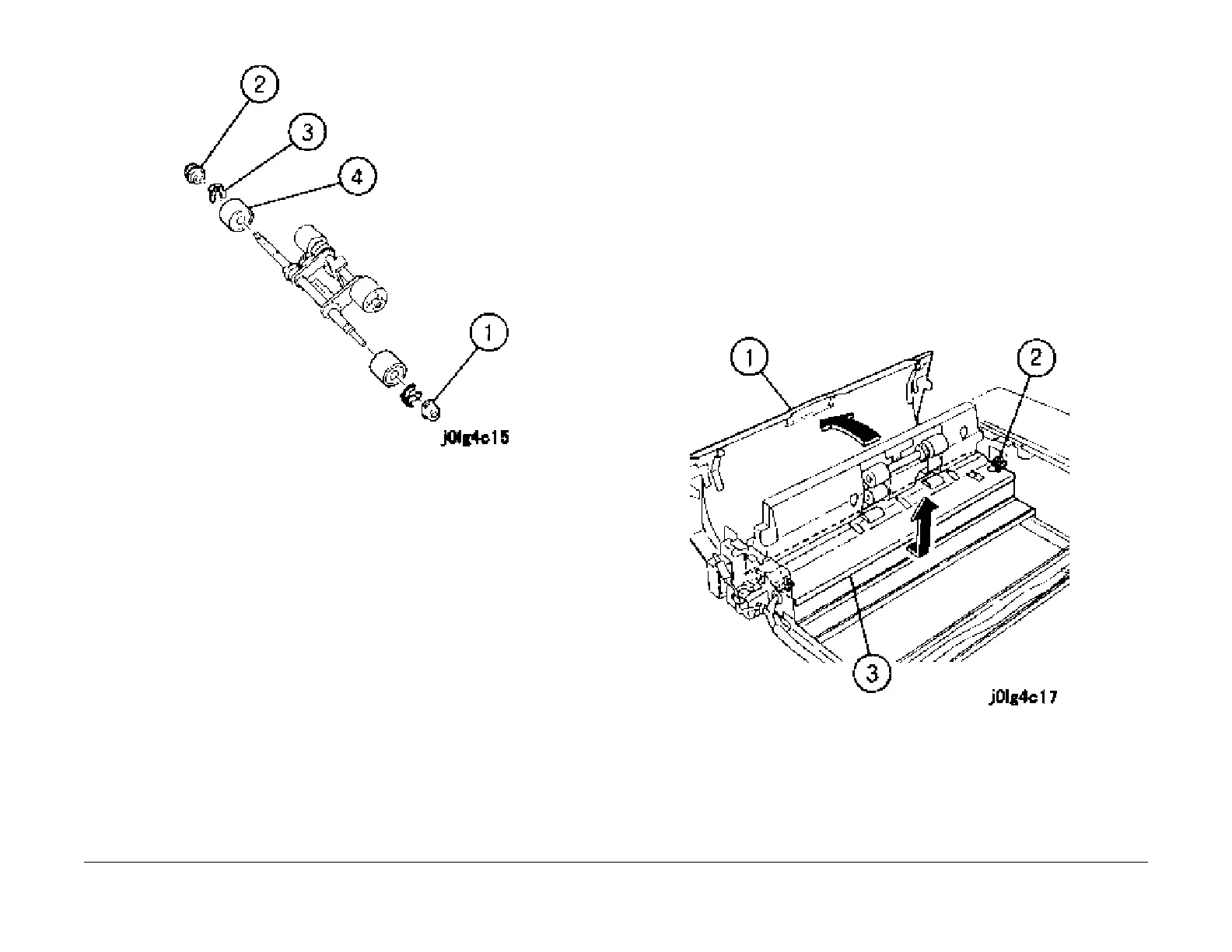

Figure 3 Remove the Feed Roll
Installation
NOTE: The Feed Rolls have a one-way clutch structure. Install them so that they rotate freely
in the clockwise direction.
1. Reinstall the parts in the reverse order of disassembly.
REP 12.5.1 Document Feed Lower Chute
Parts List on PL 12.5
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following parts:
a. Entrance Tray (PL 12.1)
b.
Front Cover (PL 12.1
)
2. Open the Document Feed Upper Chute.
3. Remove the Document Feed Lower Chute (Figure 1
).
1. Open the Top Cover.
2. Loosen the screws (2).
3. Remove the Document Feed Lower Chute.
Figure 1 Remove the Document Feed Lower Chute
Installation
1. Reinstall the parts in the reverse order of disassembly.
