Xerox DocuColor 12/DCCS50

1/05
5-262
DocuColor 12/DCCS50
PL 3.3
Reissue
Parts Lists

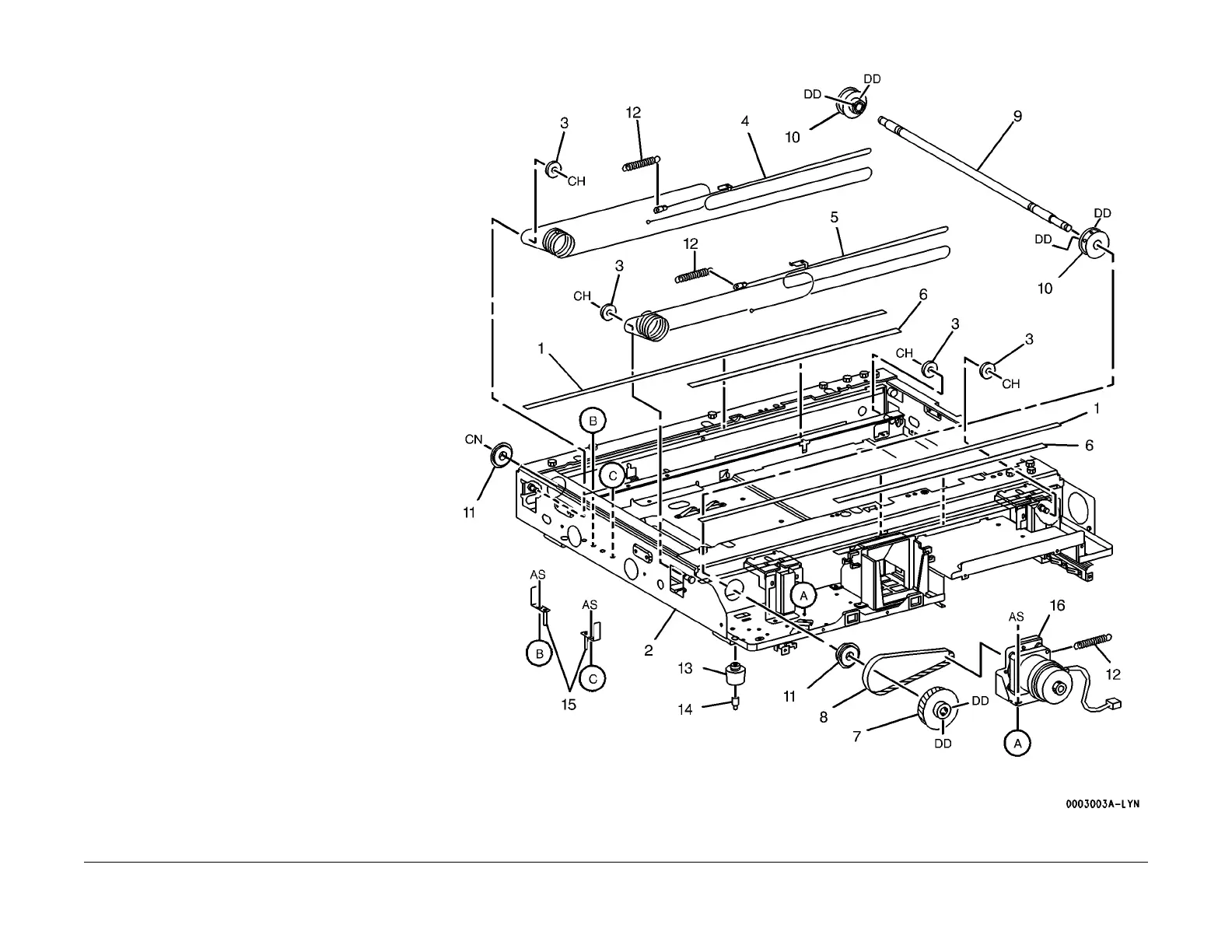

PL 3.3 Carriage Cable/Motor
Item Part Description
1 063E94040 Tape
2 – Frame (Not Spared)
3 020K94970 Pulley
4 012K93440 Front Carriage Cable (REP 3.3.1 )
5 012K93450 Rear Carriage Cable (REP 3.3.1 )
6 063E94050 Tape
7 020E25100 Timing Pulley
8 023E15550 Belt
9 – Capstan Shaft (Not Spared)
10 020E25090 Capstan Pulley
11 – Bearing (Not Spared)
12 009E62830 Spring
13 017E92140 Foot
14 – Stud (Not Spared)
15 – Pin (Not Spared)
16 127K21513 Carriage Motor (REP 3.3.2 )
