Xerox DocuColor 12/DCCS50 User Manual

1/05
4-25
DocuColor 12/DCCS50
REP 2.8.1
Repairs and Adjustments
Reissue

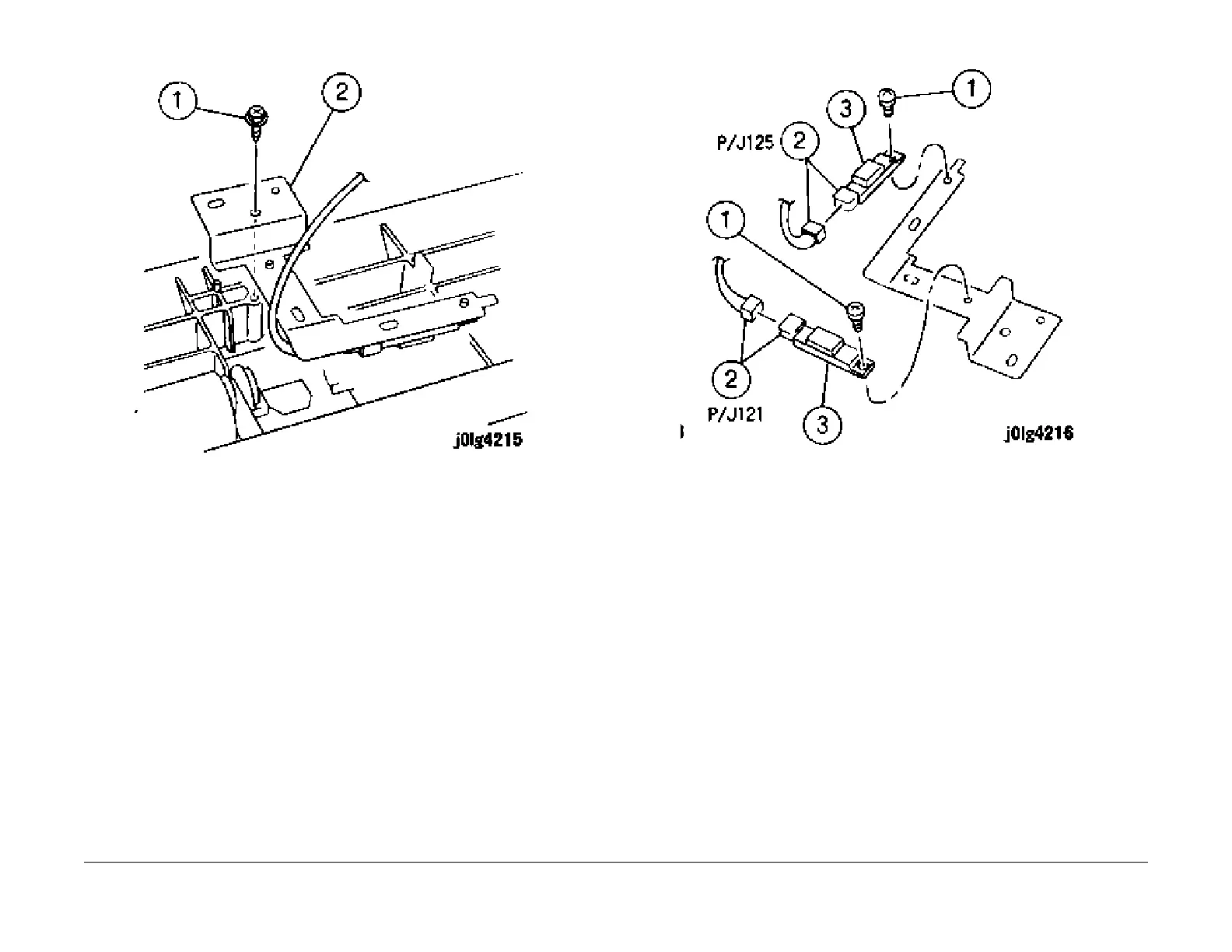

Figure 2 Moving the Sensor
4. Remove the Tray 1 Feedout Sensor and T/A Sensor (Figure
3).
1. Remove the screws (2).
2. Disconnect the connector.
3. Remove the sensors (2).
Figure 3 Removing the Tray 1 Feedout Sensor and T/A Sensor
Installation
1. Reinstall the parts in the reverse order of disassembly.
