Xerox DocuColor 12/DCCS50 User Manual

1/05
4-180
DocuColor 12/DCCS50
REP 13.13.1
Reissue
Repairs and Adjustments
REP 13.13.1 Decurler Rolls 1/2
Parts List on PL 13.13
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following parts:
a. Decurler Rear Cover (PL 13.1
1)
b. Decurler Top Cover (PL 1
3.11)
c. Decurler Inner Cover (PL 13.11)
2. Remov
e the bearings (Figur
e 1).
1. Remove the E-clips (2).
2. Remove the bearings (2).

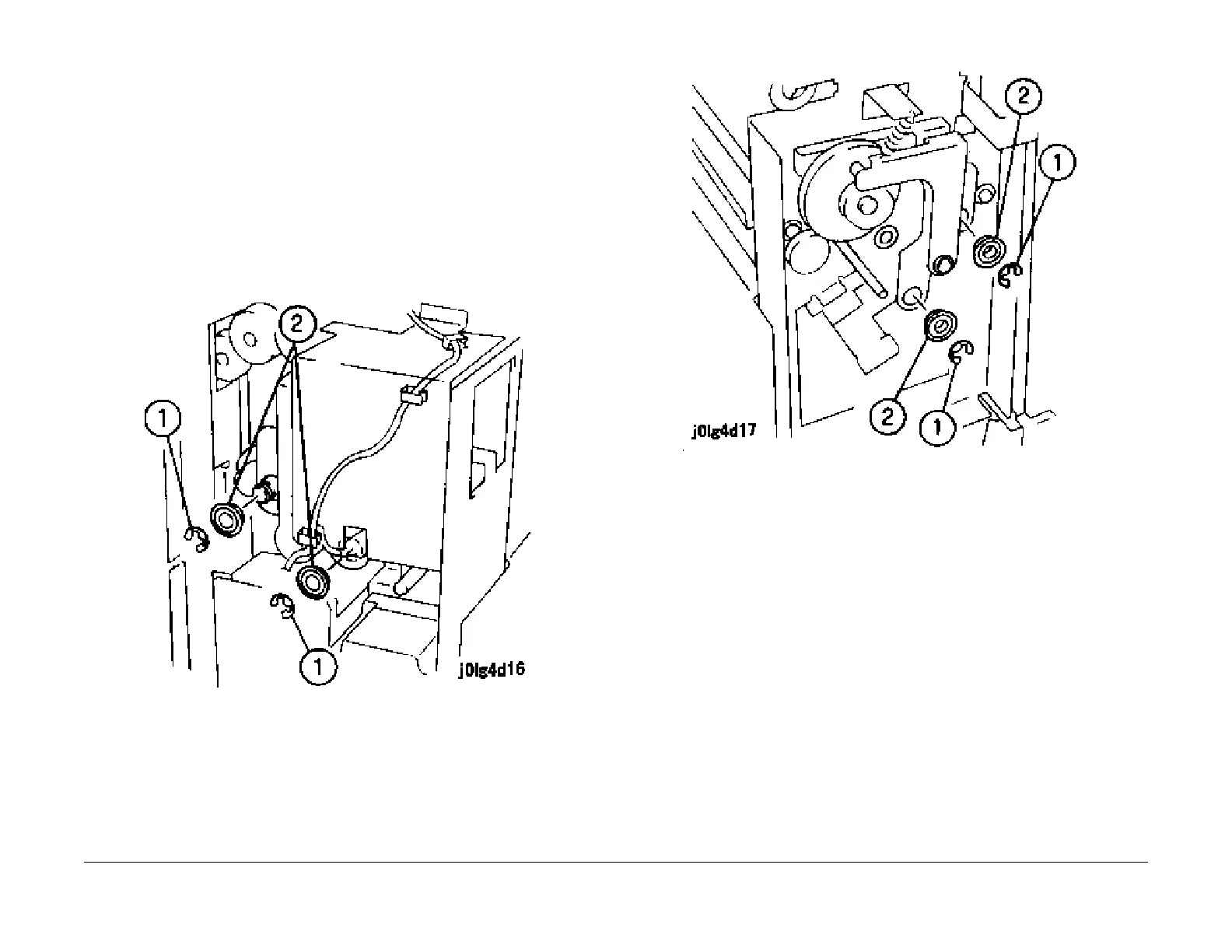

Figure 1 Remove the Bearings
3. Remove the bearings (Figur
e 2).
1. Remove the E-clips (2).
2. Remove the bearings (2).
Figure 2 Remove the Bearings
4. Remove Decurler Roll 1 (F
igur
e 3).
1. Remove Decurler Roll 1.
