DocuColor 12/DCCS50
REP 13.13.1
Repairs and Adjustments
Reissue

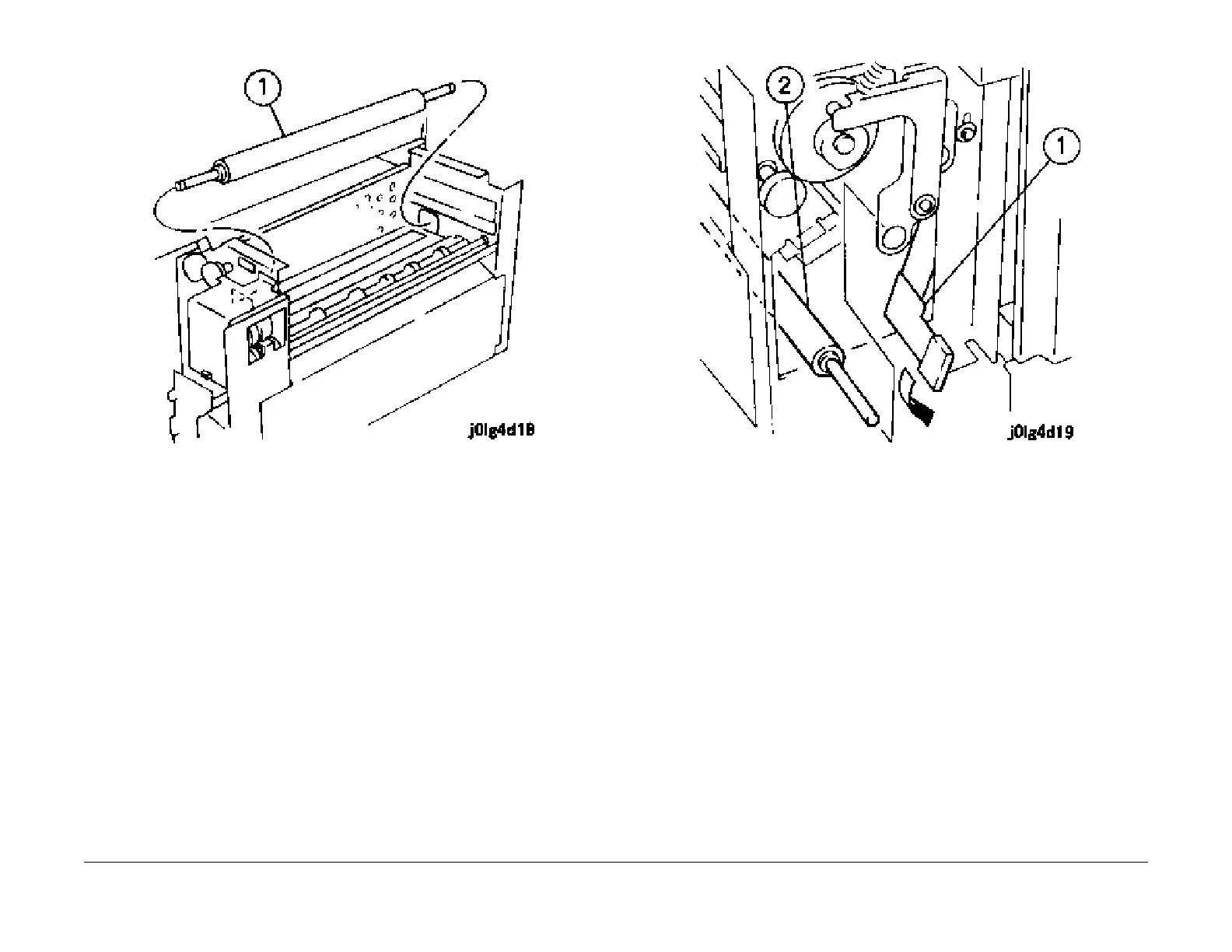

Figure 3 Remove Decurler Roll 1
5. Remove Decurler Roll 2 (Figure 4).
1.
Lower the baffle.
2. Remove Decurler Roll 2.
Figure 4 Remove Decurler Roll 2
Installation
1. Install Decurler Rolls 1/2. Identify them by their markings (Figure 5).
