Xerox DocuColor 12/DCCS50 User Manual

1/05
4-58
DocuColor 12/DCCS50
REP 3.3.1
Reissue
Repairs and Adjustments

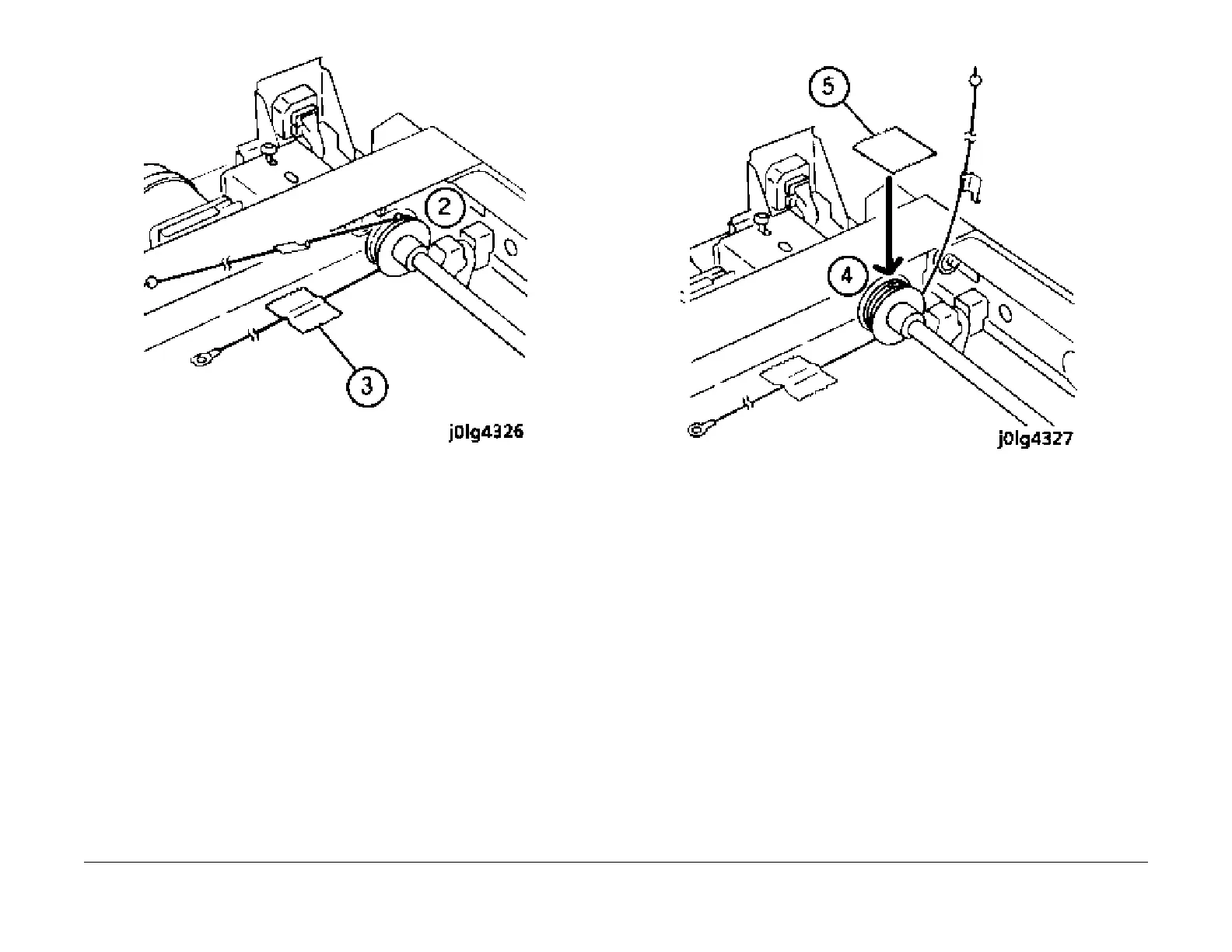

Figure 6 Locking the Cable
4. Wind the cable (ball side) onto the pulley for 2.4 turns (Figure 7
).
5. Tape and lock the cable wound on the pulley (Figu
re 7).
Figure 7 Locking the Cable
6. The following figure shows the number of carriage
cable windings (front/rear) (Fig-
ure 8).
