DocuColor 12/DCCS50
Reissue
Installation Instructions
Electronic Pre-Collation (EPC) Kit Installation
Purpose
The purpose of this kit is to install the EPC (Electronic Pre-Collation) option on machines man-
ufactured with TAG P
38.
Prerequisites
The machine must have the following Tags installed:
• TAG P38
• TAG P39 (E
nsure that NVM location 752-017 is set to 1).
Kit Contents
The EPC Kit consists of the following items:
• EPC Print Cable - qty. 1
• EPC Assembly - qty. 1
• P-Clamp (6N) - qty. 1
• P-Clamp (7N) - qty. 1
• Screw M3 - qty. 2
• Screw M4x6mm - qty. 4
Procedure
1. For DCCS50:
• Switch off the power. Wait 30 seconds, then unplug the power cord. Remove the
IDFE
DDI Cables.
For DC12 with attached Splash DFE:
• Obtain permission from the network administrator and perform the proper shut down
procedure.
Switch off the Server power. Disconnect the DocuColor 12 interface
cables (print and scan) from the IOT.
• Switch off the machine power. Unplug the power cord.
For DC12 with attached Fiery DFE:
• Obtain permission from the network administrator and perform the proper shut down
procedure.
Switch off the Server power. Disconnect the Copier Interface Cables
(print and scan) from the interface ports on the copier.
• Switch off the machine power. Unplug the power cord.
For DC12 without an attached DFE:
• Switch off the power and disconnect the power cord.
2. Undock the Finisher or Mailbox/Sorter, if present.
3. Remove the Right Upper Cover (PL 11.
2).
Print Cable Installation

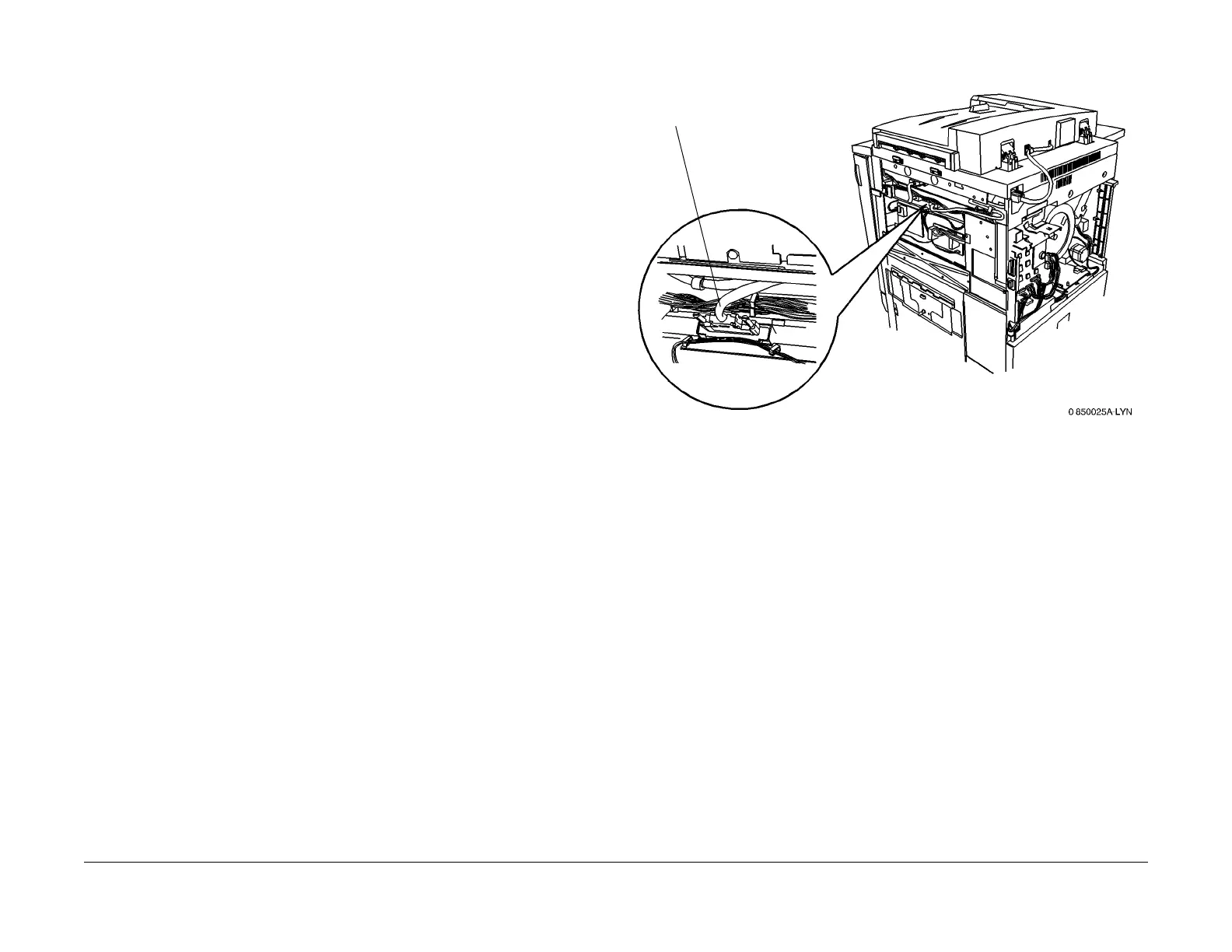

1. Disconnect the Scan Cable (Figure 1):
F
igure 1 Disconnecting the Scan Cable From the Terminator
2. If the EPC Enablement Kit is being installed at the same time as the EPC kit: Con-
nect
the Print cable as shown in Figure 2
, then return to Installing the Scan Cable Step 17
of the EPC Enablement Kit installation instructions.
If the EPC Enablement Kit is not being installed at the same time: Connect t
he Print
cable as shown in Figure 2, then continue with these instructions.
1
Disconnect the
Scan cable
