1/05
9-41
DocuColor 12/DCCS50
Installation Instructions
Reissue

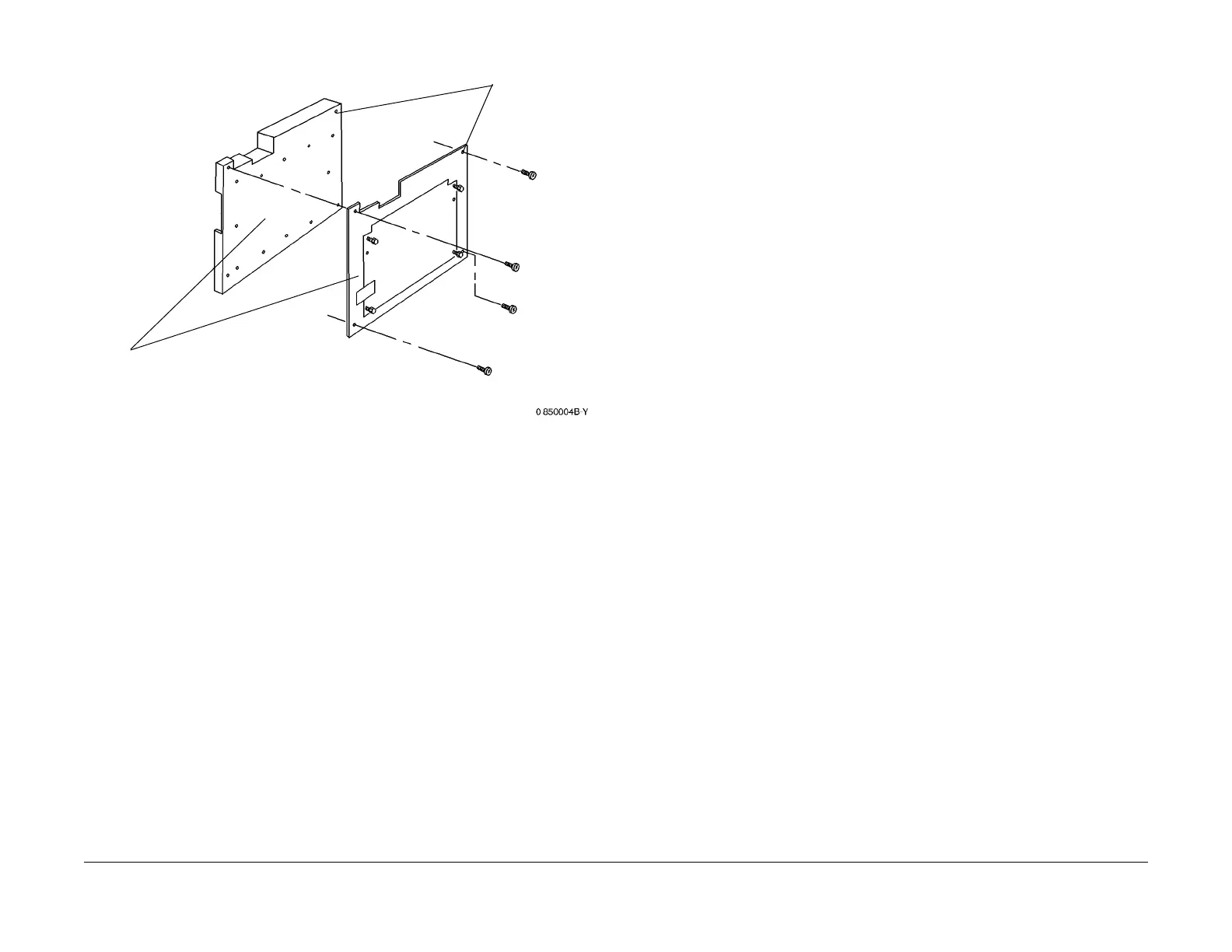

Figure 8 Installing the Mounting Plate
9. For DCCS50:
• Reinstall the IDFE (REP 19.1).
F
or DC 12:
• Continue with this installation at step 10.
10. Mark off Tag 38 on the IOT Tag Matrix.
11. I
f the EPC Kit is being installed at the same time as the enablement kit: Go t
o the
EPC Assembly Installation instructions in the EPC Kit installation instructions and com-
plete the installation.
If the EPC Kit is not being installed at this time:
Continue wit
h these instructions.
12. Dock the Finisher.
13. For DC 12 with attached Splash DFE:
• Reconnect the DocuColor 12 interface Cables (left
side print and right side scan) to
the IOT.
• Switch On the Server power.
For DC 12 with attached Fiery DFE:
• Reconnect the Copier Interface Cables (left side print and righ
t side scan) to the
interface ports on the copier.
• Switch On the Server power.
14. Reconnect the machine power cord; switch On the power.
1
Line up the 4
holes
2
Install the IOT Rear Cover and the
EPC Mounting Plate at the same
time. Use the same screws (4)
To Next Page
