1/05
4-182
DocuColor 12/DCCS50
REP 13.13.1, REP 13.13.2
Reissue
Repairs and Adjustments

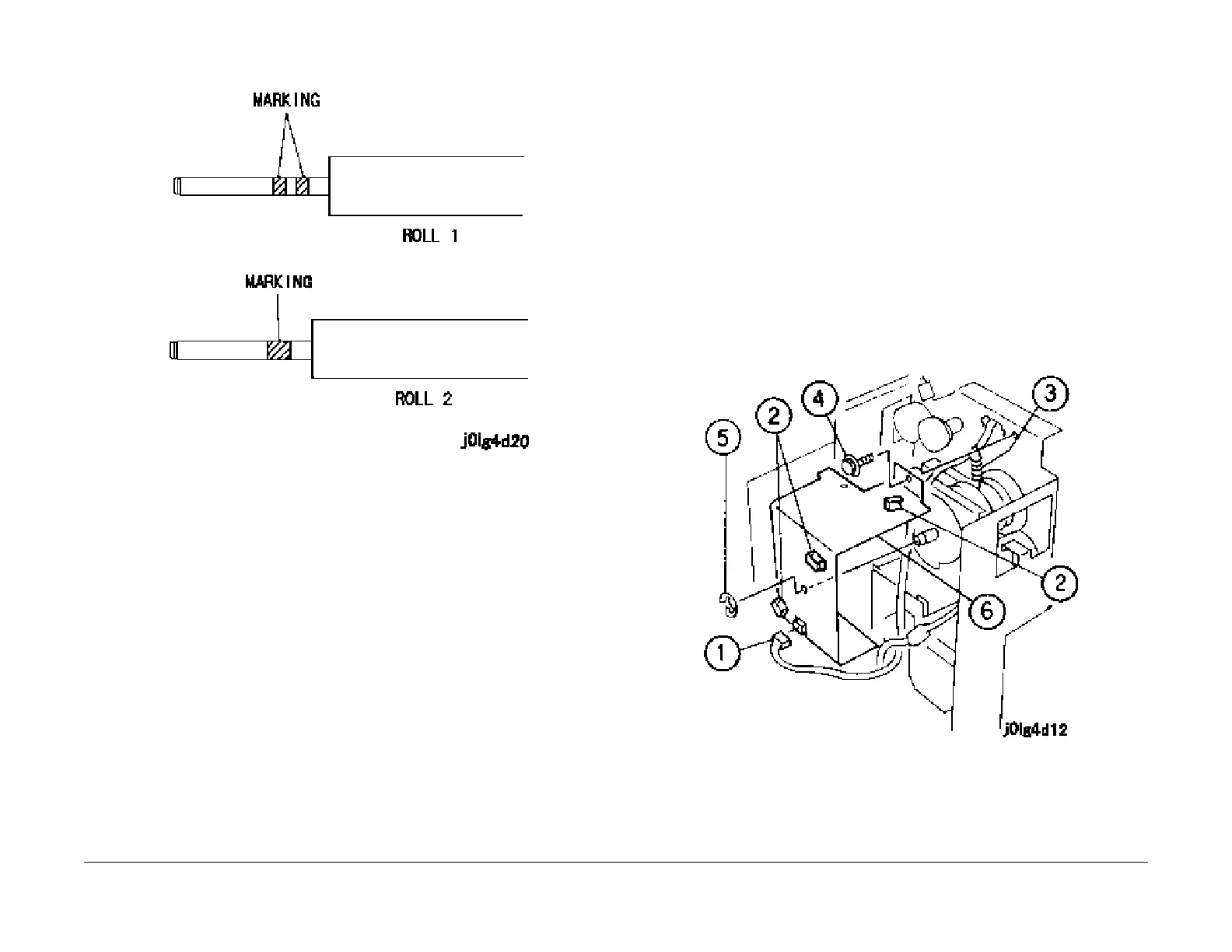

Figure 5 Install Decurler Rolls 1/2
2. Reinstall the remaining parts in the reverse order of disassembly.
REP 13.13.2 Gear and Cam
Parts List on PL 13.13
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following parts:
a. Decurler rear cover (PL 13.11
)
b. Decurler top cover (PL 13.11
)
2. Remove the bracket (Figur
e 1).
1. Disconnect the connector.
2. Release the clamp and remove the wire.
3. Hook the spring to the wire.
4. Remove the screw.
5. Remove the E-clip.
6. Remove the bracket.
Figure 1 Remove the Bracket
3. Remove the gear (F
igure
2).
1. Remove the E-clip.
2. Remove the gear.
