Xerox DocuColor 12/DCCS50 User Manual

1/05
4-183
DocuColor 12/DCCS50
REP 13.13.2
Repairs and Adjustments
Reissue

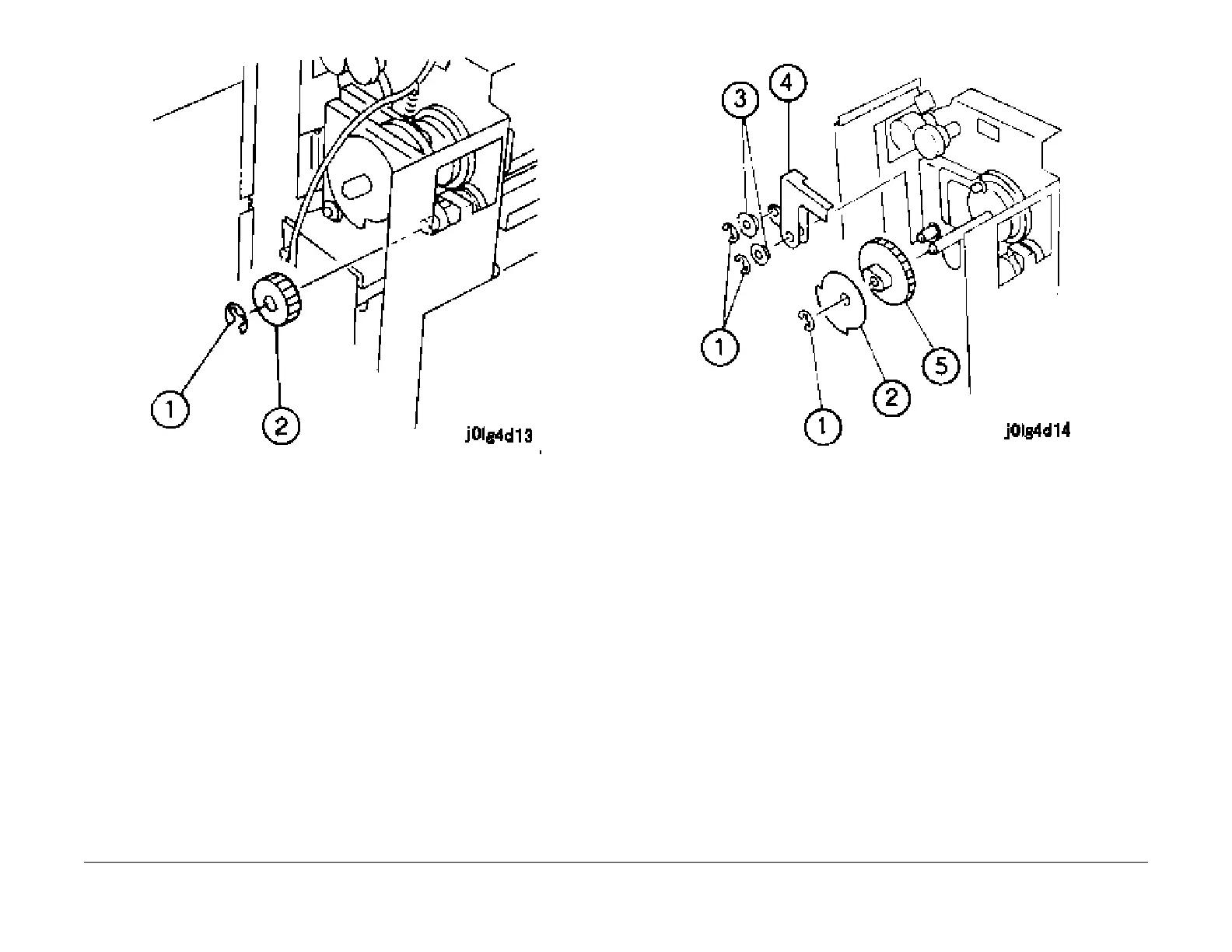

Figure 2 Remove the Gear
4. Remove the Cam (Figu
re 3).
1. Remove the E-clips (3).
2. Remove the reflector.
3. Remove the bearings (2).
4. Remove the lever.
5. Remove the cam.
Figure 3 Remove the Cam
Installation
This illustration shows installation for the rear side. Install the gear and cam for the front in the
same way as for the rear.
1. Install the gear and cam. Align the holes in the two parts (Figure 4
).
