1/05
5-265
DocuColor 12/DCCS50
PL 4.1
Parts Lists
Reissue

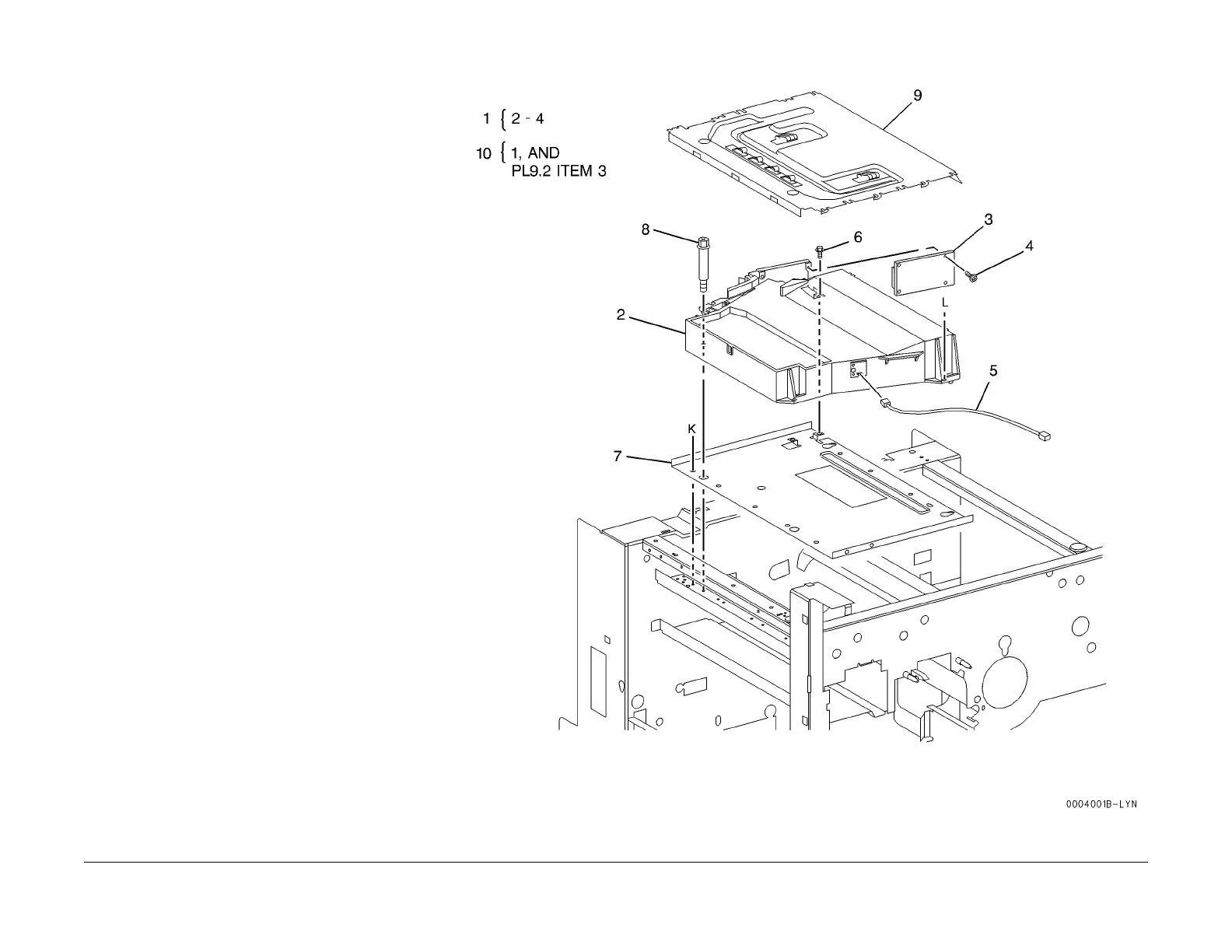

PL 4.1 ROS
Item Part Description
1 062K10670 ROS Assembly (W/TAG P5, TAG
P32) (REP
4.1.1)
2 – ROS (P/O PL 4.1 Item 1)
3 160K42851 Ldd PWB
4 – Screw (P/O PL 4.1 Item 1)
5 – Wire Harness (Not Spared)
6 – Screw (Not Spared)
7 – Bracket (Not Spared)
8 – Screw (Not Spared)
9 048K76921 ROS Top Cover
10 600K86001 ROS and Halftone PWB Repair Kit
(
W/T
AG P32)
