DocuColor 12/DCCS50
PL 2.3
Parts Lists
Reissue

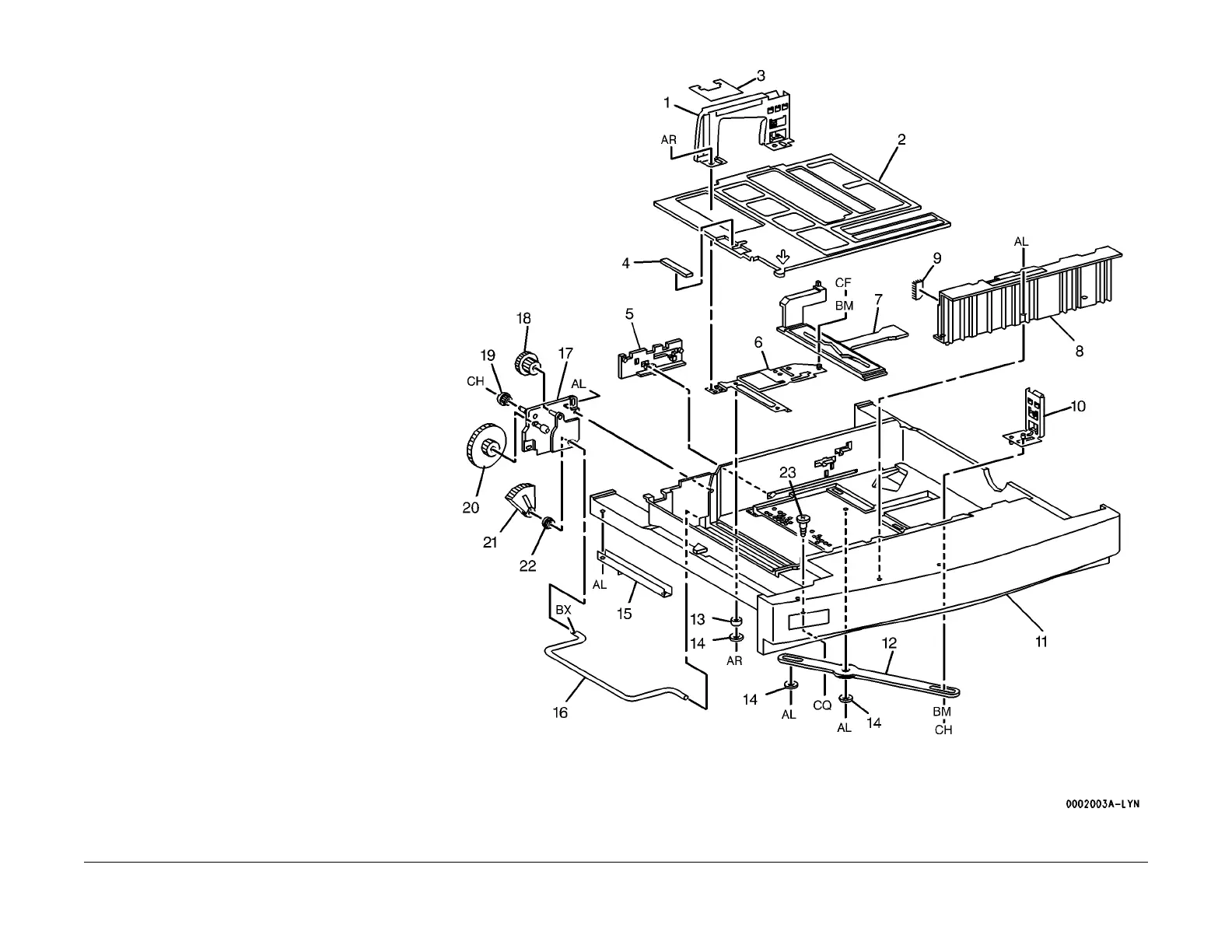

PL 2.3 Tray 2/3/4 Component
Item Part Description
1 038K84621 Side Guide Plate
2 – Bottom Plate (P/O PL 2.1 Item 8)
3 – Plate (P/O PL 2.1 Item 8)
4 019K94400 Pad
5 – Actuator End Guide (P/O PL 2.1
It
em
8)
6 015K41503 Plate
7 – Actuator Side Guide (P/O PL 2.1
It
em
8)
8 038E88922 Regi. Side Guide
9 019E39131 Pad
10 038K83973 End Guide
11 050E88159 Cassette
12 – Link (P/O PL 2.1 Item 8)
13 – Roll (P/O PL 2.1 Item 8)
14 – Spacer (P/O PL 2.1 Item 8)
15 – Plate (P/O PL 2.1 Item 8)
16 – Shaft (P/O PL 2.1 Item 8)
17 – Plate (P/O PL 2.1 Item 8)
18 007E50410 Gear (18/30)
19 007E30970 Gear (13)
20 007E50420 Gear (20/53)
21 007E50430 Gear (60)
22 – Bearing (P/O PL 2.1 Item 8)
23 – Screw (P/O PL 2.1 Item 8)
