Electronic Pre-Collation (EPC)

REP 20.2 EPC Hard Drive

Parts List on PL 20.1

Removal

CAUTION

Use the ESD Kit and the established ESD procedures when replacing the EPC PWB. The EPC

PWB

can be damaged by electrostatic discharge.

1. For DCCS50:

• Switch Off the power. Wait 30 seconds, then unplug the power cord. Disconnect the

IDFE

DDI Cables.

For DC12 with attached Fiery or Splash DFE:

• Perform the correct power down procedure. Disconnect

the DFE DDI cables.

For DC12 without an attached DFE:

• Switch off the power and disconnect the power cord.

2. Access the EPC Hard Drive (Figur

e 1).

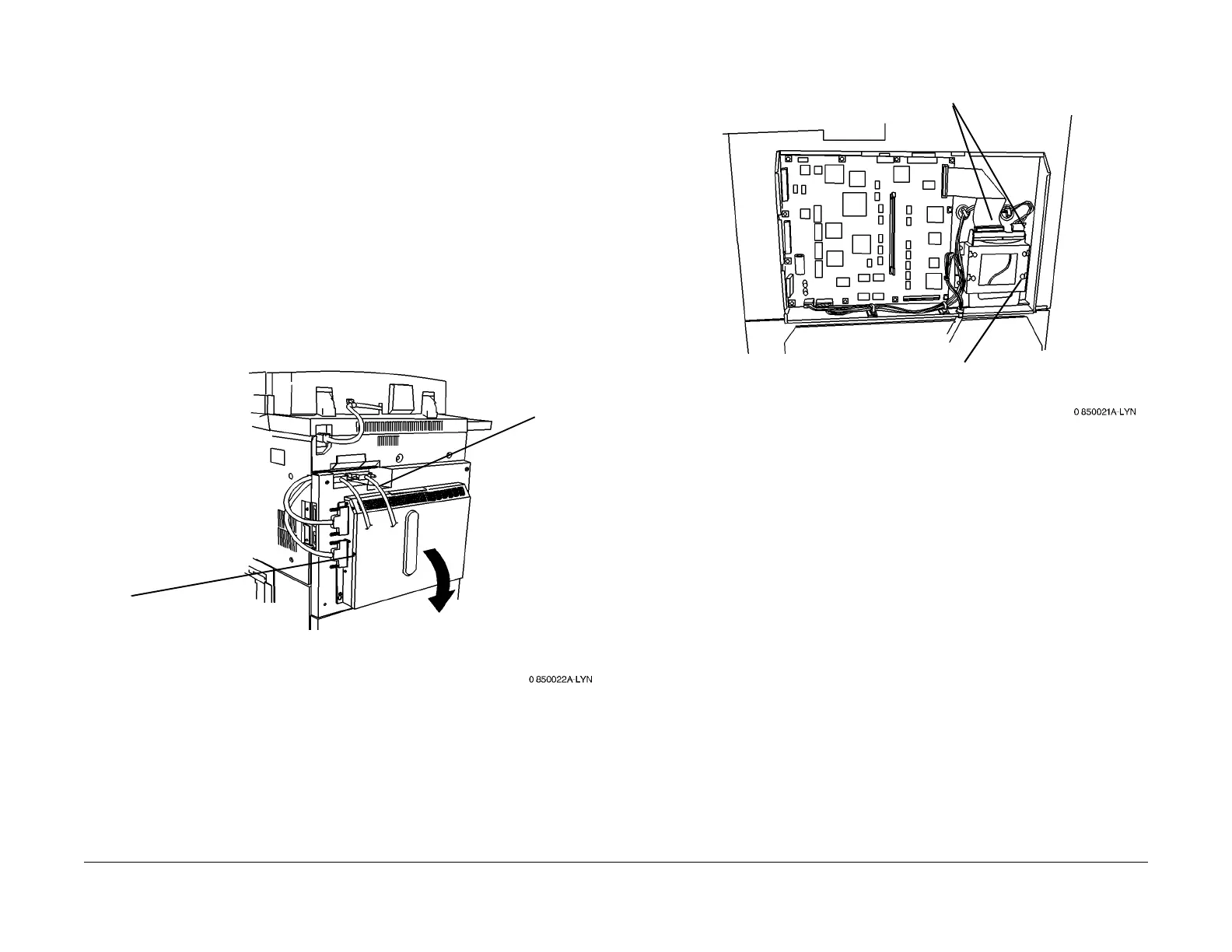

Figure 1 Accessing the EPC Hard Drive

3. Remove the EPC Hard Drive (Figu

re 2).

Figure 2 Removing the EPC Hard Drive.

Replacement

1. Reinstall the parts in the reverse order of disassembly.

2. Initialize the EPC (GP 1).

Loosen the screws (6)

Lower the Cover

Disconnect the

Connectors (2)

Remove the

screws (4)

Remove the EPC Hard Drive
