Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-117
DocuColor 12/DCCS50
REP 15.3.13, REP 15.3.14
Finisher/Sorter
Reissue
REP 15.3.13 Decurler Rear Cover
Parts List on PL 18.3
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Move the Finisher away from the printer until the Finisher stops.
3. Remove the Decurler Top Cover (REP 15.
3.12).
4. Remove the Decurler Rear Cover (Figu
re 1).
1. Remove the three screws securing the Decurler Rear Cover.
2. Disengage the wire harness from the cover at the bottom, as you remove the
Decurler Rear
Cover.
Replacement
1. Reinstall the Decurler Rear Cover in the reverse order of removal.

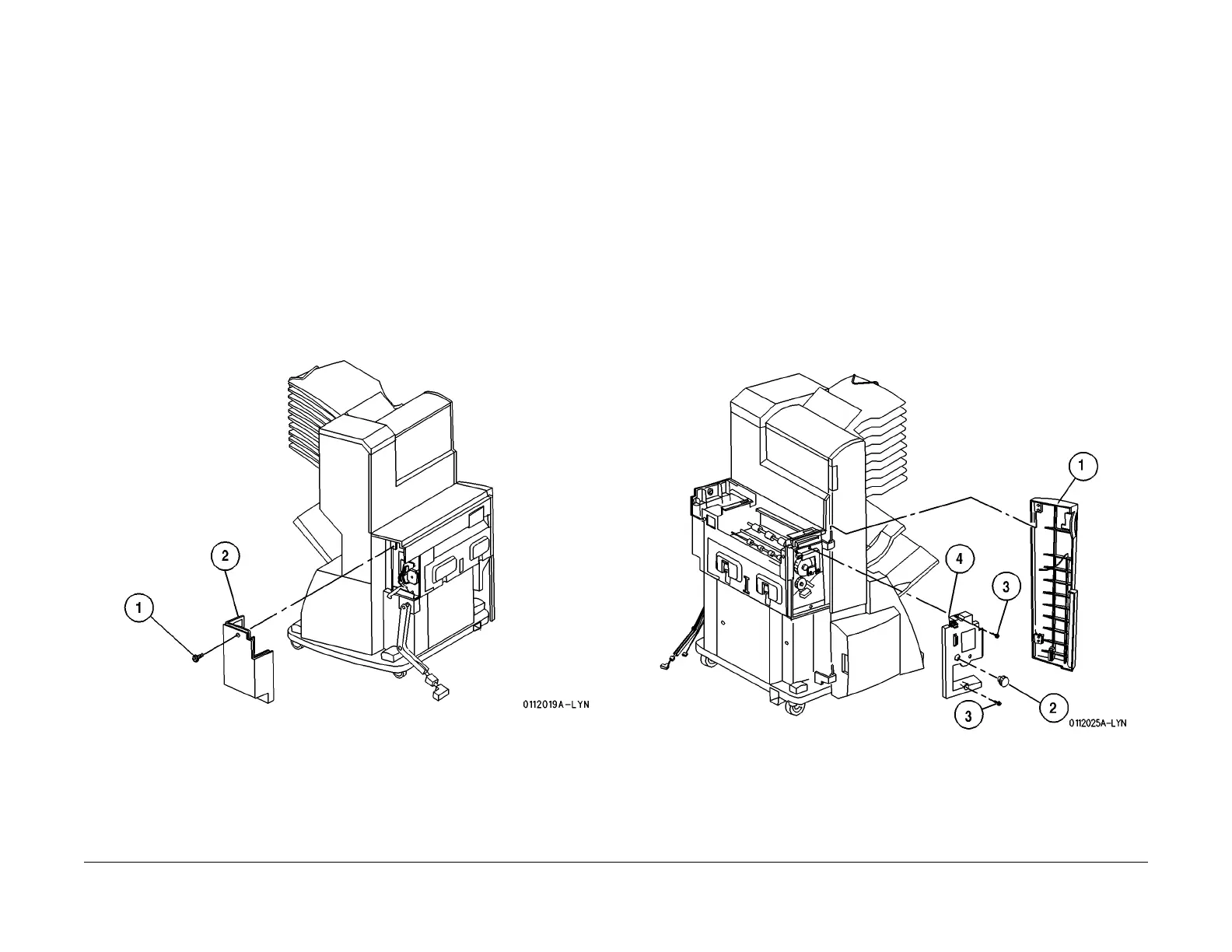

Figure 1 Remove the Decurler Rear Cover
REP 15.3.14 Decurler Inner Cover
Parts List on PL 18.5
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Decurler Top Cover (REP 15.3.
12).
3. Remove the Decurler Inner Cover (Figure
1).
1. Open the Decurler Door.
2. Remove the 6 Knob.
3. Rem
ove the two screws securing the Decurler Inner Cover.
4. Disconnect the connector to the Decurler Door Interlock Switch as you remove the
Decurler
Inner Cover.
Replacement
1. Reinstall the Decurler Inner Cover in the reverse order of removal.
Figure 1 Remove the Decurler Inner Cover
