REP 9.2.1 Opening/Closing the IOT Control PWB Chassis
Parts List on PL 9.2
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the IOT Rear Cover (PL 1
1.3).
2. Remove the IOT Control PWB Cover (PL 9.
2).
3. Open the IOT Control PWB Chassis (Figu
re 1).
1. Disconnect the connector.
2. Remove the screws (3).
3. Open the PWB chassis.

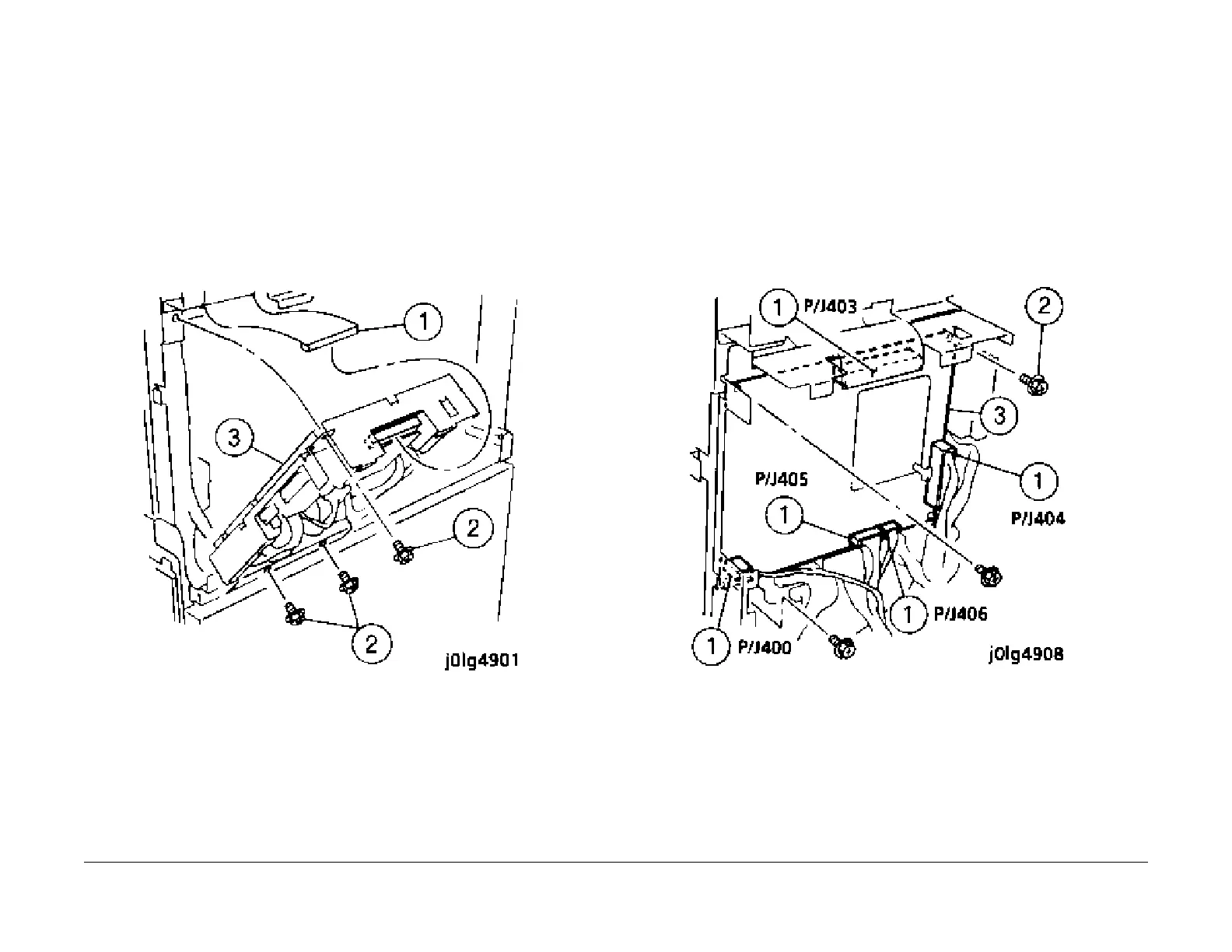

Figure 1 Open the IOT Control PWB Chassis
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 9.2.2 IOT Drive PWB
Parts List on PL 9.2
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the IOT Rear Cover (PL 11.3).
2. Remove the IOT Control PWB Cover (PL 9.
2).
3. Remove the IOT CPU PWB (Figu
re 1).
1. Disconnect the connectors (5).
2. Remove the screws (3).
3. Remove the IOT CPU PWB.
Figure 1 Remove the IOT CPU PWB
4. Disconnect the IOT Drive PWB connectors (12) (Figure 2
).
