DocuColor 12/DCCS50
REP 5.1.1
Repairs and Adjustments
Reissue
REP 5.1.1 Erase Lamp
Parts List on PL 5.1
Removal
WARNING
Turn power off and disconnect the power plug.
NOTE: When removing the Drum Unit, do not expose the Drum to direct sunlight or strong
light.
NOT
E: Do not touch the Drum surface.
1. Remove the Drum Unit (REP 5.3.
1).
2. Remove the Erase Lamp (Figu
re 1).
1. Disconnect the connector.
2. Remove the Erase Lamp.

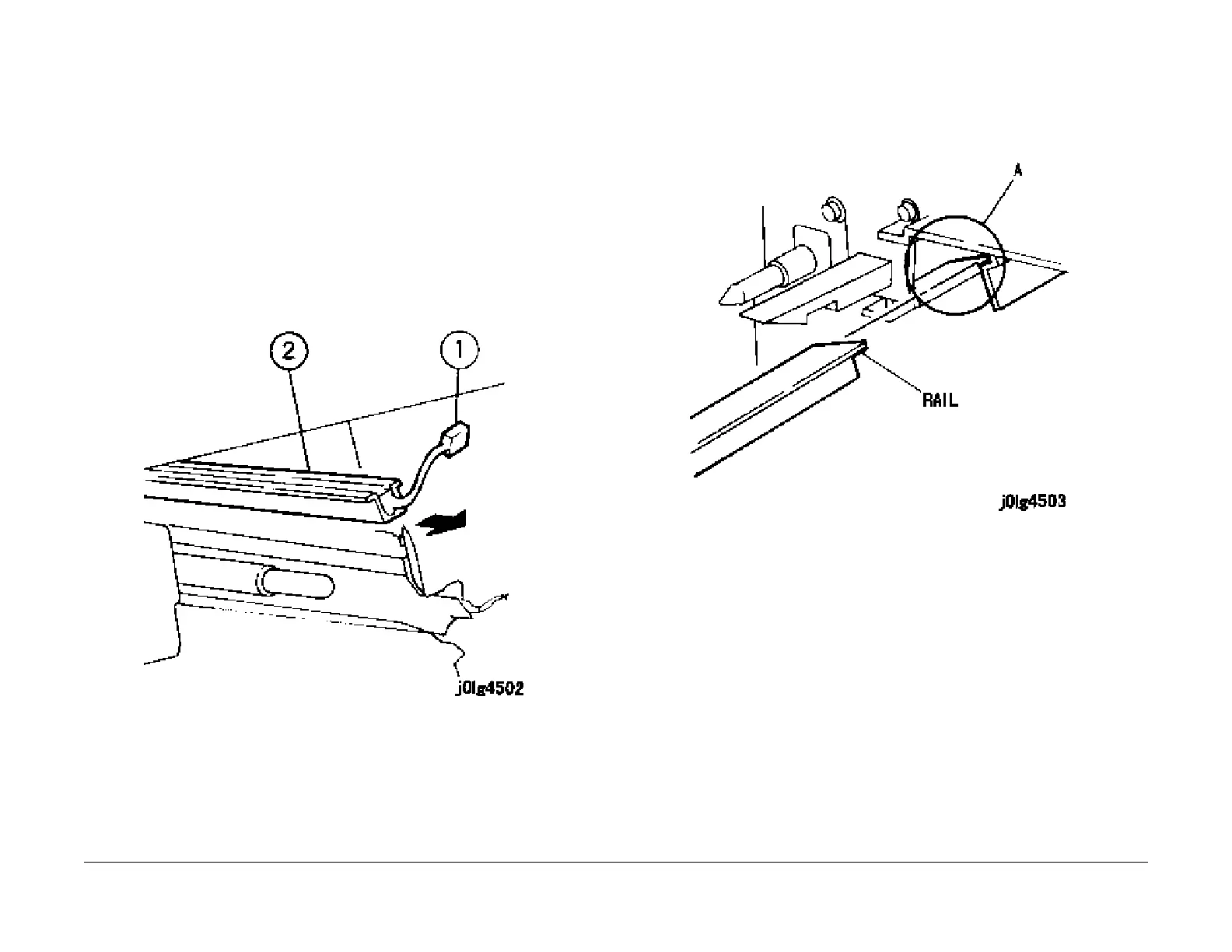

Figure 1 Remove the Erase Lamp
Installation
NOTE: When installing the Erase Lamp, match the rails (on both sides of the Erase Lamp) with
groove A (Figure 2).
Figure 2 Reassembly
1. Reinstall the parts in the reverse order of disassembly.
