Xerox DocuColor 12/DCCS50 User Manual

1/05
5-229
DocuColor 12/DCCS50
PL 1.3
Parts Lists
Reissue

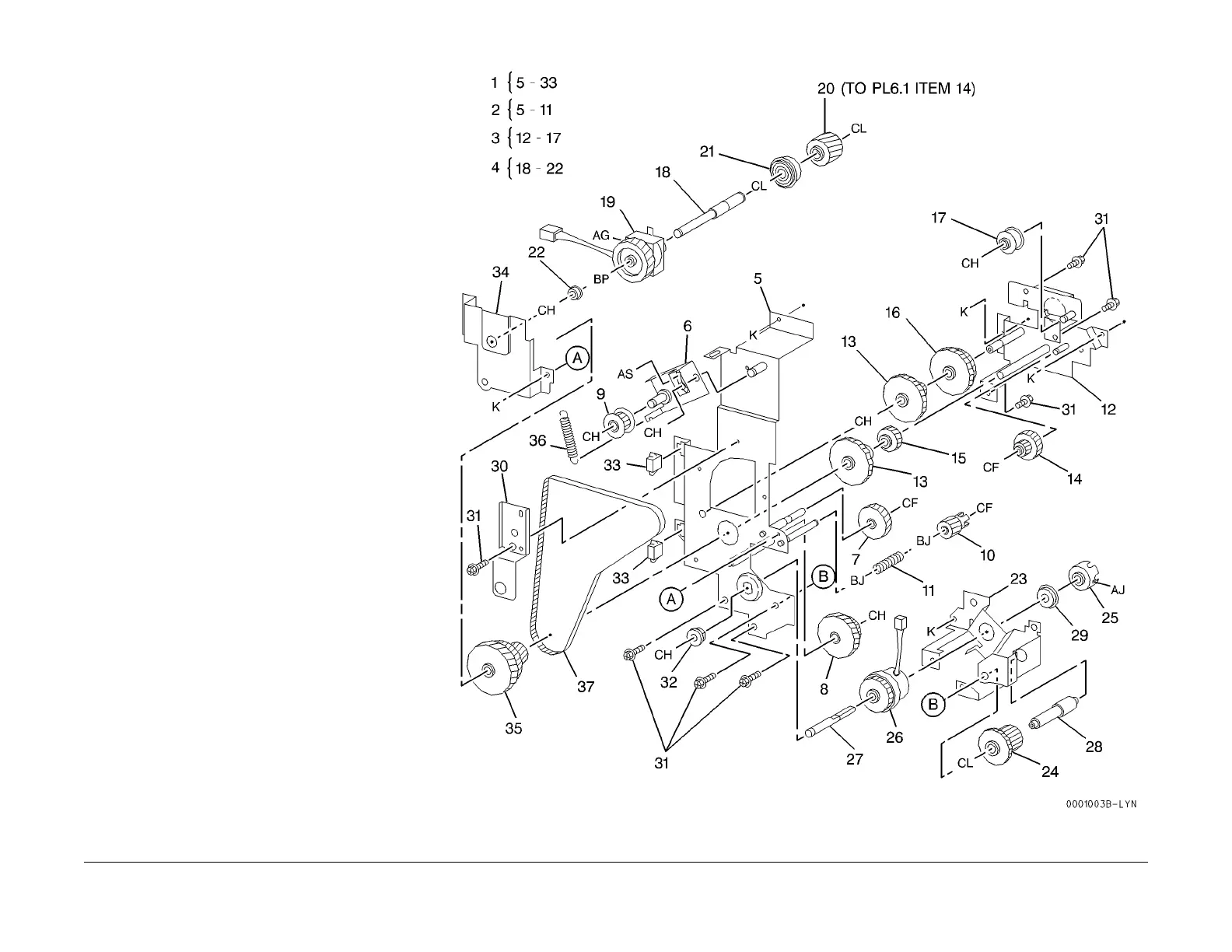

PL 1.3 Deve./BPD Drive, IBT Cleaner
Retract
Item Part Description
1 007K84468 Developer/BPO Drive and IBT
Cleaner Retra
ct Assembly
2 007K84282 BPO Roll Drive Assembly
3 007K84291 Developer Drive
4 006K84003 Developer Housing Drive Shaft
5 – Bracket (P/O PL 1.3 Item 2)
6 – Bracket (P/O PL 1.3 Item 2)
7 007E51790 Gear
8 007E50052 Gear
9 – Pulley (P/O PL 1.3 Item 2)
10 – Coupling (BPO Drive) (P/O PL 1.3
It
em
2)
11 809E08690 Spring
12 – Bracket (P/O PL 1.3 Item 3)
13 007E50030 Gear (18/44 )
14 007E51800 Gear (16/26 )
15 007E51810 Gear (22)
16 – Gear (P/O PL 1.3 Item 3) (40/44 )
17 – Pulley (P/O PL 1.3 Item 3)
18 – Shaft (P/O PL 1.3 Item 4)
19 121K14881 Developer Clutch
20 007K84332 Gear (Developer Housing Drive)
21 – Bearing (P/O PL 1.3 Item 4)
22 – Bearing (P/O PL 1.3 Item 4)
23 – Bracket (P/O PL 1.3 Item 1)
24 007E52290 Gear
25 – Coupling (IBT Cleaner Retract)
(P/
O P
L 1.3 Item 1)
26 121K17941 Cleaner Retract Clutch
27 – Shaft (P/O PL 1.3 Item 1)
28 – Shaft (P/O PL 1.3 Item 1)
29 – Bearing (P/O PL 1.3 Item 1)
30 – Bracket (P/O PL 1.3 Item 1)
31 – Screw (P/O PL 1.3 Item 1)
32 – Bearing (P/O PL 1.3 Item 1)
33 – Connector (P/O PL 1.3 Item 1)
34 – Bracket (Not Spared)
35 007E50042 Gear Pulley
36 – Spring (Not Spared)
37 423W55355 Belt (Developer Drive) (REP 1.3.1 )
