DocuColor 12/DCCS50
PL 5.1
Reissue
Parts Lists

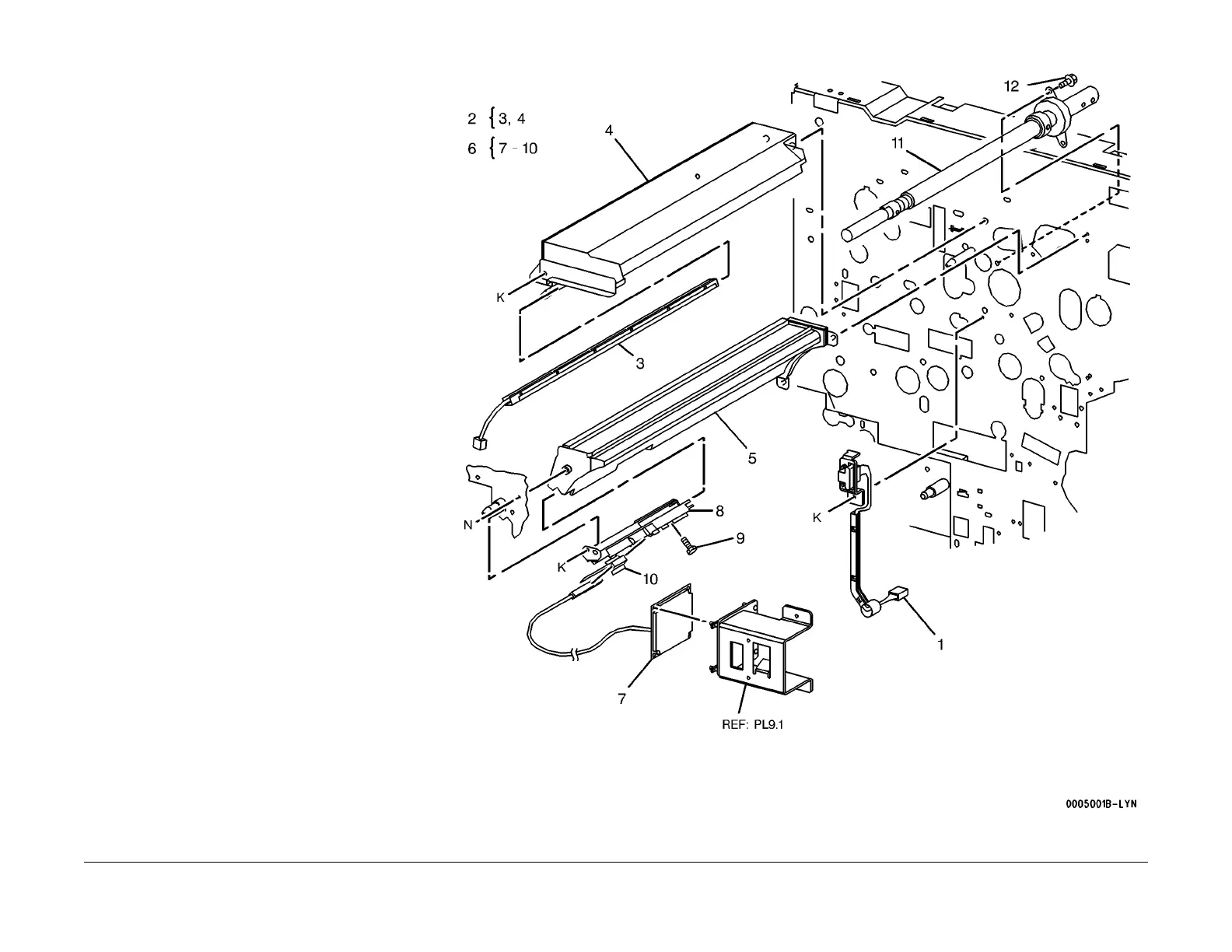

PL 5.1 ESV Sensor, Erase Lamp
Item Part Description
1 114K81062 Connector (EP ROM PWB)
2 054K10151 Duct and Erase Lamp Assembly
3 122K92892 Erase Lamp (REP 5.1.1 )
4 – Duct (P/O PL 5.1 Item 2)
5 – Duct (Not Spared)
6 – ESV Sensor and Cover Assembly
(Not
Sp
ared)
7 130K57720 ESV Sensor
8 – ESV Sensor Cover (P/O PL 5.1
It
em
6)
9 – Screw (P/O PL 5.1 Item 6)
10 – Plate (P/O PL 5.1 Item 6)
11 006K84192 Drum Shaft
12 – Screw (Not Spared)
