Finisher/Sorter
REP 15.2.2 Stacker Tray Assembly
Parts List on PL 18.27
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Stapler Cover Assembly (REP 15.3.
3).
3. Remove the Rear Lower Cover (REP 15.3.
15).
4. Remove the front wheel Caster Cap (PL 18.4 it
em 8).
5. Disconnect P/J1090, P/J1
071, P/J1067 and P/J1064 and remove the wire harness from
the harness clips.
6. Remove the Stacker Tray Assembly (Figure 1
).
1. Remove the screws (5) securing the Stacker Tray Assembly to the Finisher frame
fron
t and rear.
2. Lift the Stacker Tray Assembly off the screws and remove the assembly from the
fram
e.

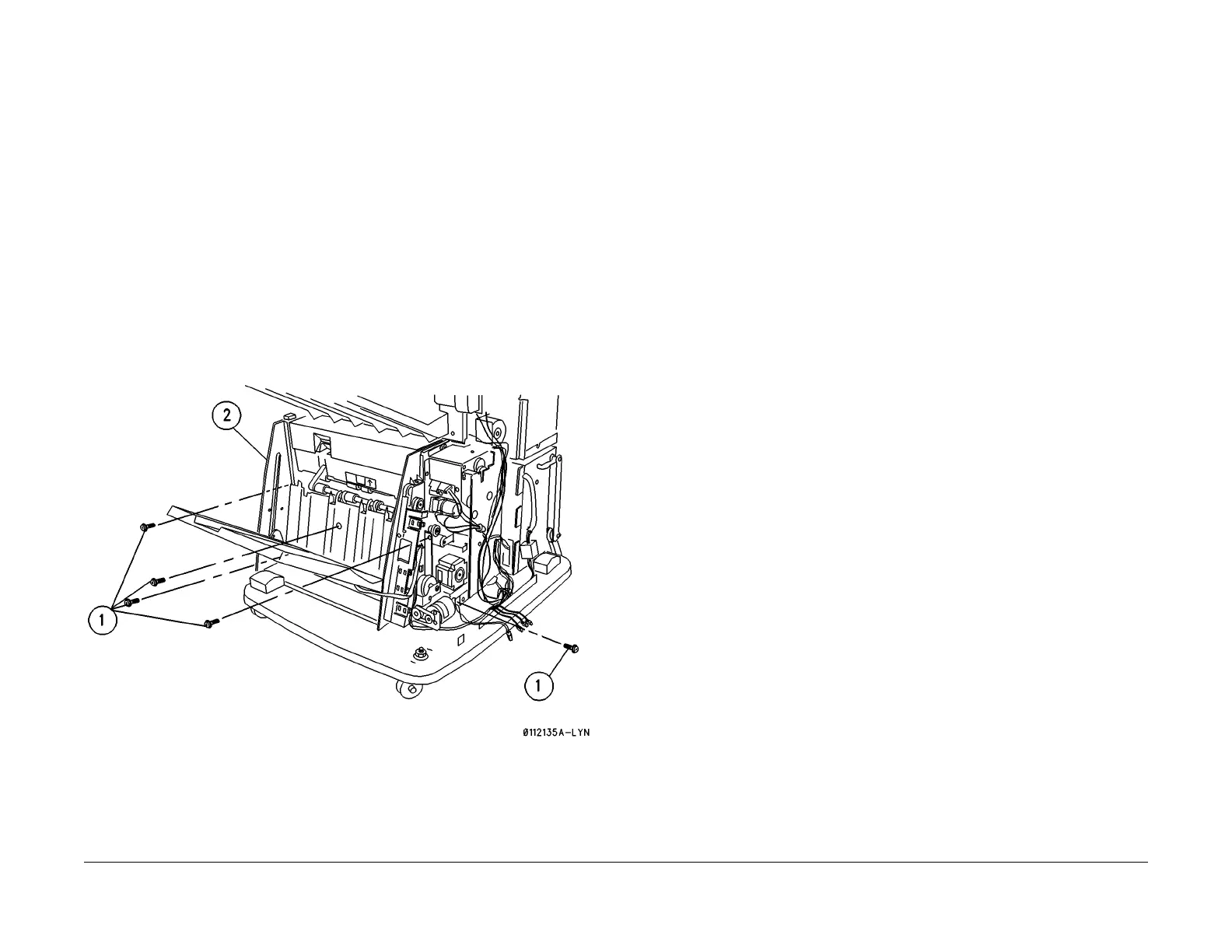

Figure 1 Remove the Stacker Tray Assembly
Replacement
1. Reinstall the Stacker Tray Assembly by hooking the keyhole screw holes at the middle of
the Assembly over the two screws on the frame.
2. Use two screws to secure the bottom of the Assembly to the frame.
3. Tighten the two middle screws.
4. Reconnect P/J
1090, P/J1071, P/J1067 and P/J1064 (Figure 1).
5. Secure the wire harness into the harness clips.
6. Install the Front Wheel Caster Cap.
7. Install the Rear Lower Cover.
8. Install the Stapler Cover Assembly.
