Xerox DocuColor 12/DCCS50

1/05
4-175
DocuColor 12/DCCS50
REP 13.3.1
Repairs and Adjustments
Reissue
REP 13.3.1 Decurler
Parts List on PL 13.3
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Decurler Front Cover (PL 13
.11).
2. Disconnect the connector (Figu
re 1).
1. Disconnect the connector.

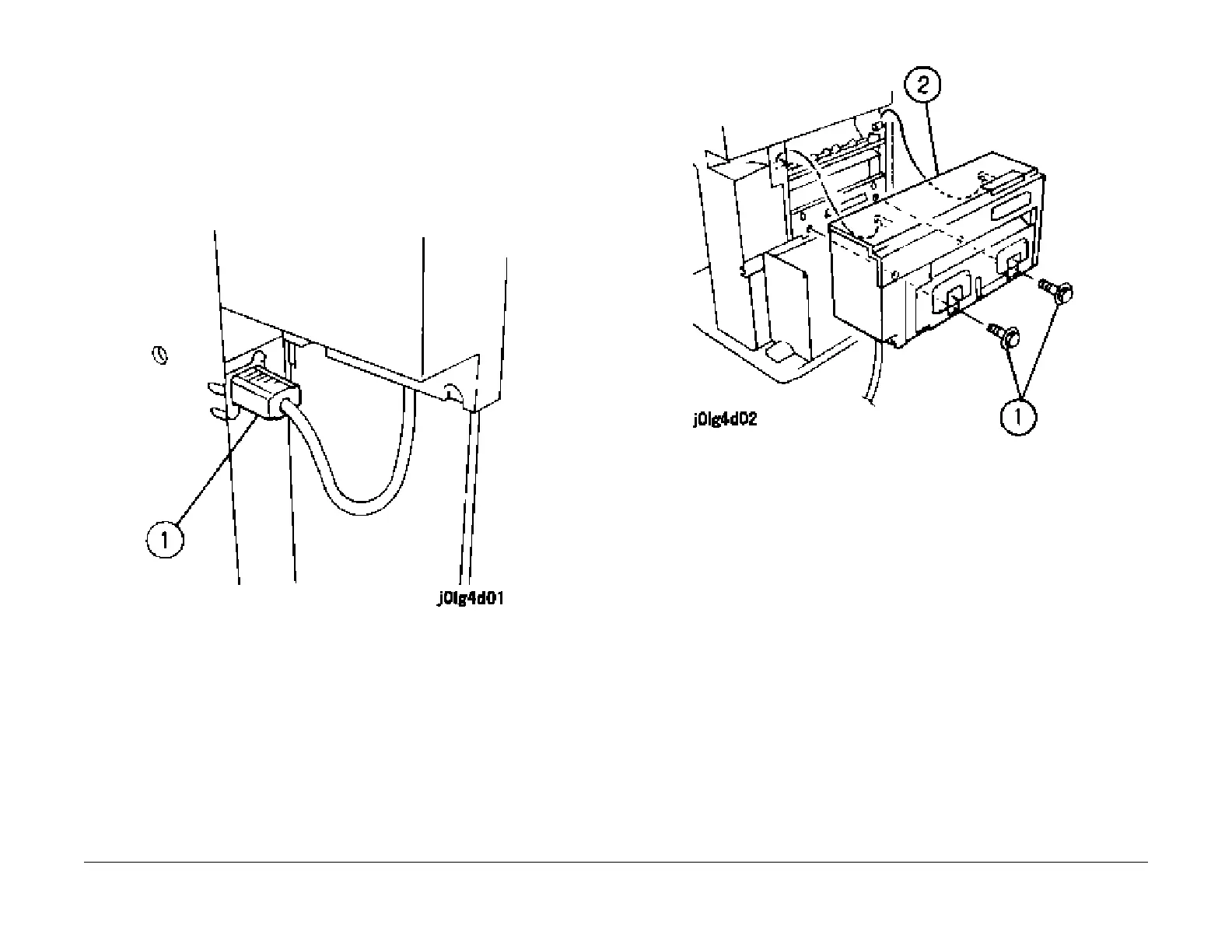

Figure 1 Disconnect the Connector
3. Remove the Decurler (Figu
re 2).
1. Remove the screws (2).
2. Remove the Decurler.
Figure 2 Remove the Decurler
Installation
1. Reinstall the parts in the reverse order of disassembly.
