Xerox DocuColor 12/DCCS50 User Manual

1/05
5-246
DocuColor 12/DCCS50
PL 2.13
Reissue
Parts Lists

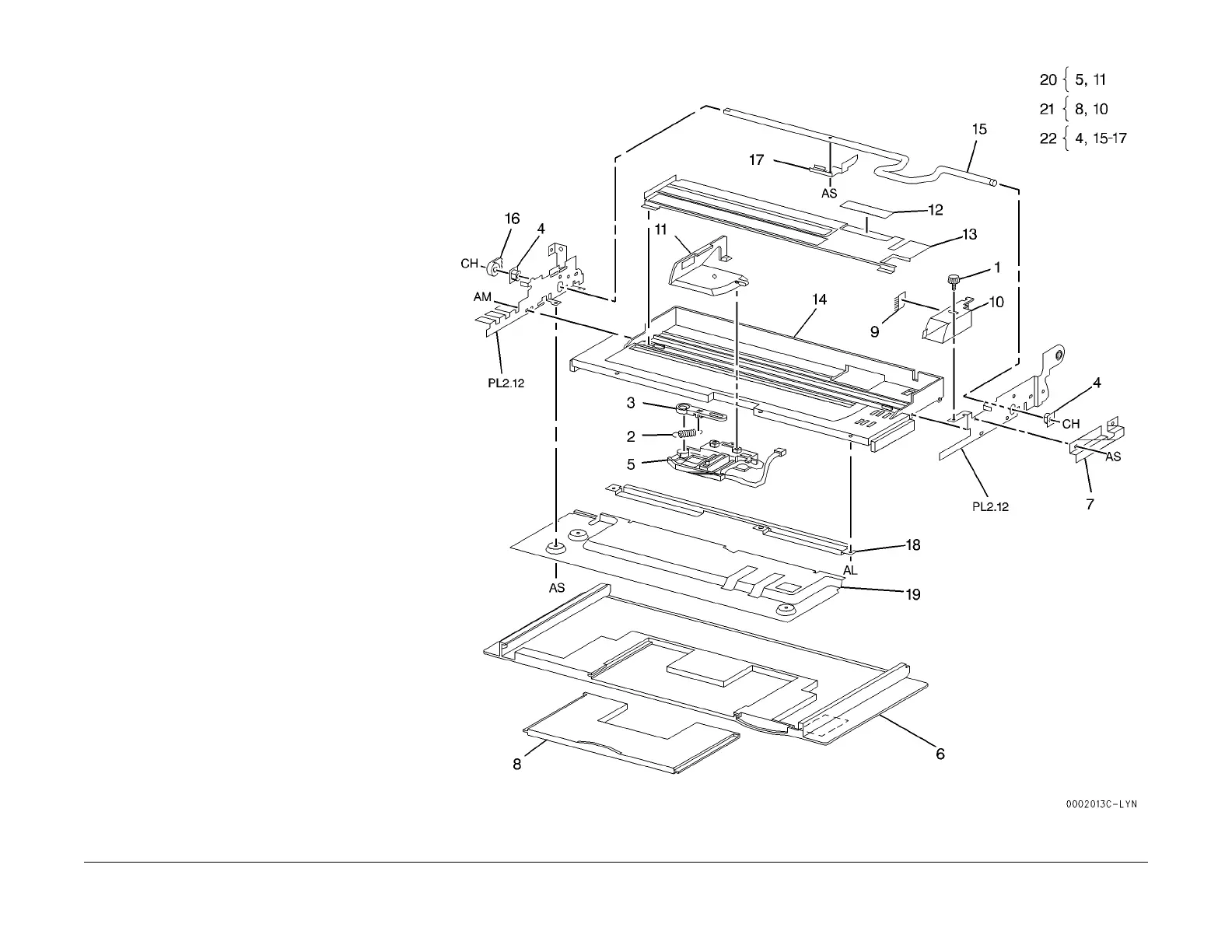

PL 2.13 Tray 5 Tray
Item Part Description
1 – Screw (P/O PL 2.9 Item 14)
2 009E53370 Spring
3 – Link (P/O PL 2.9 Item 14)
4 – Bearing (P/O PL 2.9 Item 14)
5 130K58001 Tray 5 Size Sensor
6 – Tray (Lower) (P/O PL 2.9 Item 14)
7 – Rail Bracket (P/O PL 2.9 Item 14)
8 – Tray (Extension) (P/O PL 2.13 Item
21)
9 – Pad (P/O PL 2.9 Item 14)
10 038K14700 Regi. Guide
11 038E89060 Side Guide
12 019K93320 Pad (Bottom)
13 – Bottom Plate (P/O PL 2.9 Item 14)
14 – Tray 5 Tray (P/O PL 2.9 Item 14)
15 – Lift Shaft (P/O PL 2.9 Item 14)
16 007E66030 Gear
17 – Actuator (P/O PL 2.9 Item 14)
18 – Tie Plate (P/O PL 2.9 Item 14)
19 – Lower Cover (P/O PL 2.9 Item 14)
20 600K82960 Size Sensor Kit
21 604K07960 Tray 5 Extension Kit
22 600K85970 Lift Shaft and Gear Kit
