DocuColor 12/DCCS50
Eject Clamp/Offset Motor, Stacker Tray Motor and
Principles of Operation
Reissue
Offset Mechanical Drive Components
1. Eject Clamp/Offset Motor
A +24 VDC motor. Provides drive for both the Eject
Clamp Pinch Rolls and the Eject Rolls.
2. Offset Cam
Driven by the Eject Clamp Offset Motor. As the
cam rotates, the high and low points slide
the Offset Rolls across the paper path.
3. Eject Clamp Cam
Driven by the Eject Clamp Offset Motor. As the cam rotates, the high and low points move
t
he
Eject Clamp Pinch Rolls up and down.
4. Eject Clamp Sensor
Monitors the position of the Eject Clamp Cam.
(See Figure 2.)

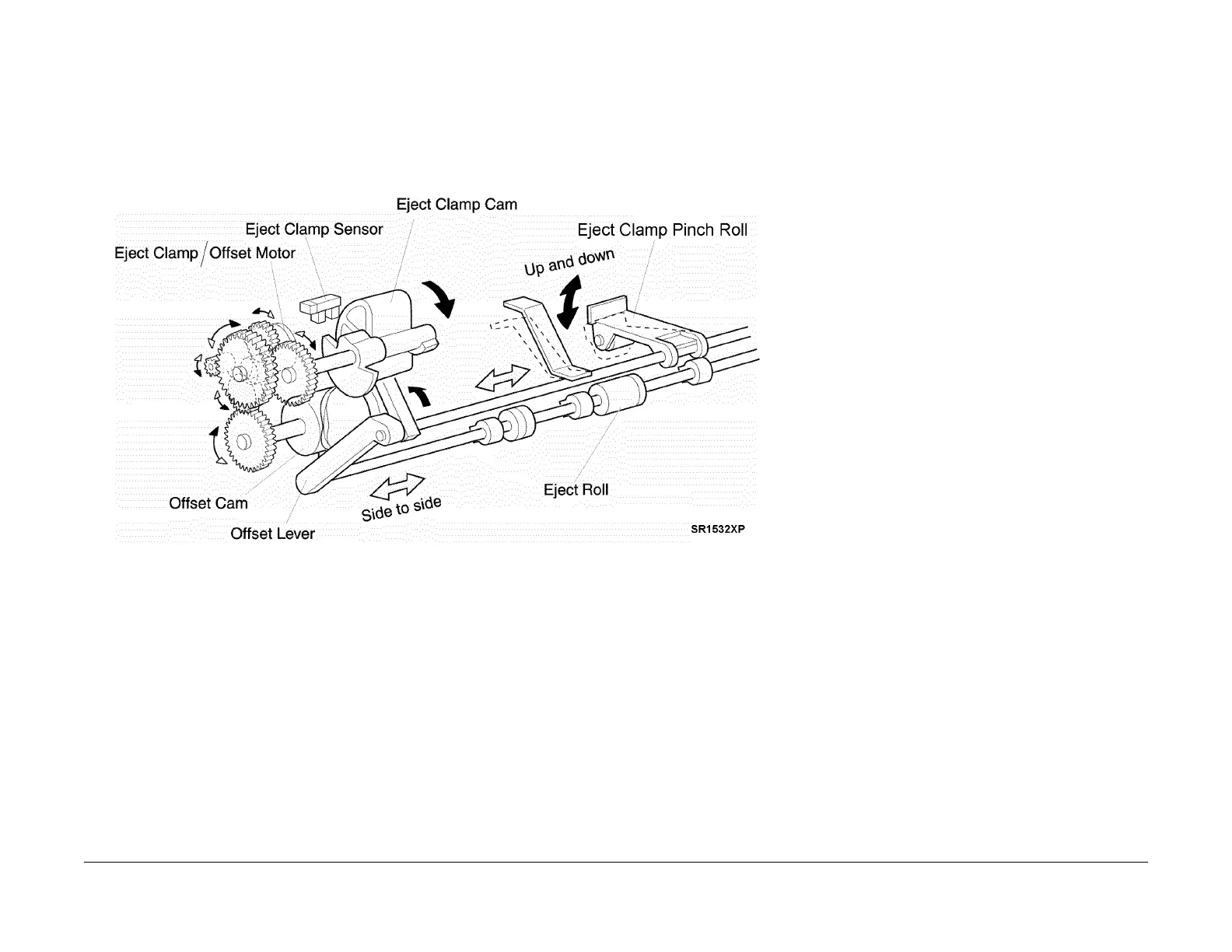

Fi
gure 2 Eject/Offset Mechanical Details 2
Stacker Tray Motor and Sensors
The Stacker Tray has a separate Motor that raises or lowers the Tray to accommodate the
amount of paper sent to it. The Stacker Tray is moved by Stacker Tray Drive Belts that are
driven by the Stacker Motor. As the Belts rotate, the Tray raises or lowers depending on the
direction of Belt rotation. Sensors monitor the presence of paper and the position of the Tray.
(See F
igure 1.)
