1/05
4-151
DocuColor 12/DCCS50
REP 10.2.1
Repairs and Adjustments
Reissue
REP 10.2.1 Fuser Fan
Parts List on PL 10.2
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open/close the IOT Control PWB Chassis (REP 9.
2.1).
2. Remove the Fuser Cover (Figu
re 1).
1. Disconnect the connector.
2. Remove the Fuser Cover.

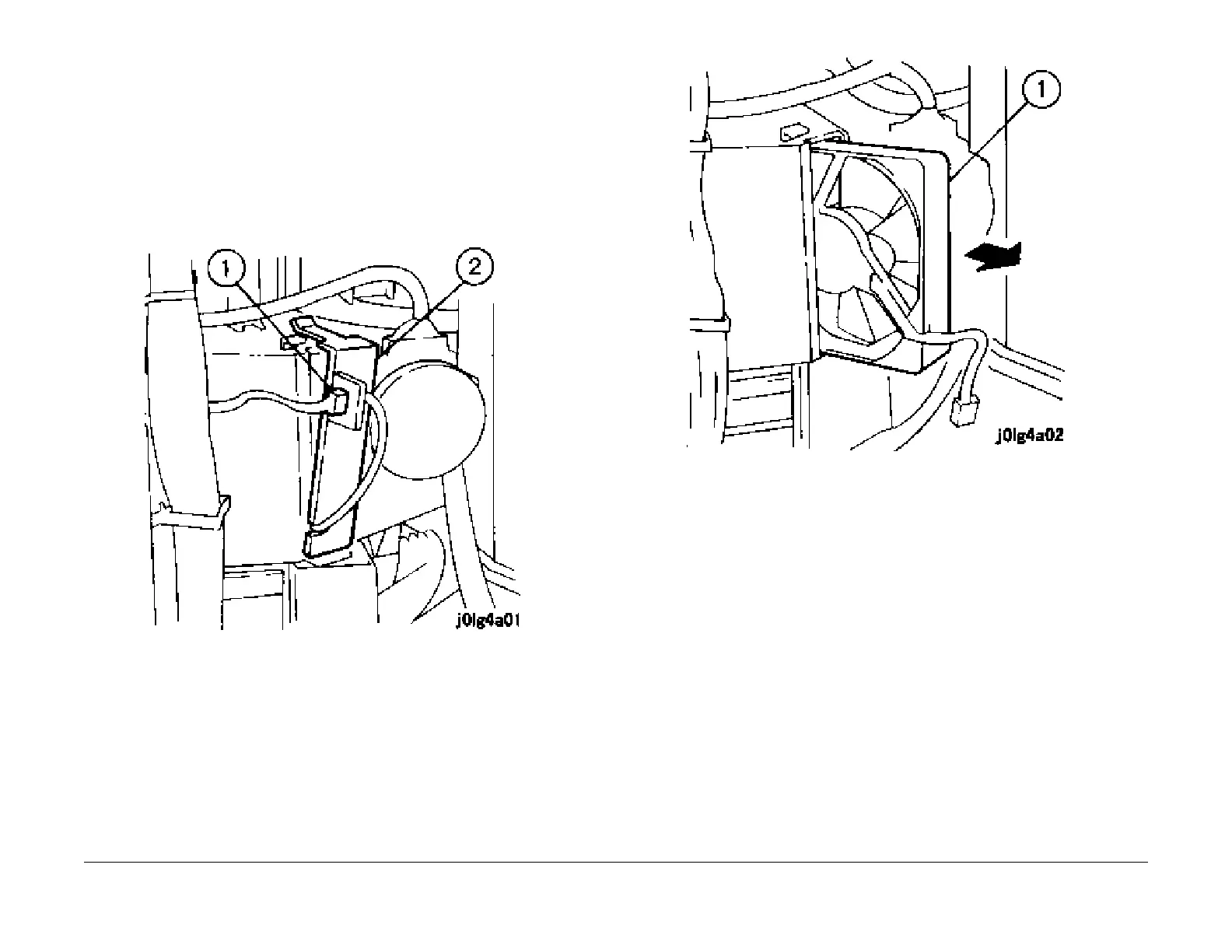

Figure 1 Remove the Fuser Cover
3. Remove the Fuser Fan (Figu
re 2).
1. Remove the Fuser Fan.
Figure 2 Remove the Fuser Fan
Installation
1. Reinstall the parts in the reverse order of disassembly.
