DocuColor 12/DCCS50
REP 9.3.3
Reissue
Repairs and Adjustments
REP 9.3.3 B3/B3H (ESS) LVPS
Parts List on PL 9.3
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following covers:
a. Tray Module Rear Cover (PL 1
1.3)
b. Filter Unit Cover (PL 11.2)
c.
Power chassis cover (PL 1
1.2)
2. Remove the duct (Figu
re 1).
1. Remove the screws (2).
2. Release the hook and remove the duct.

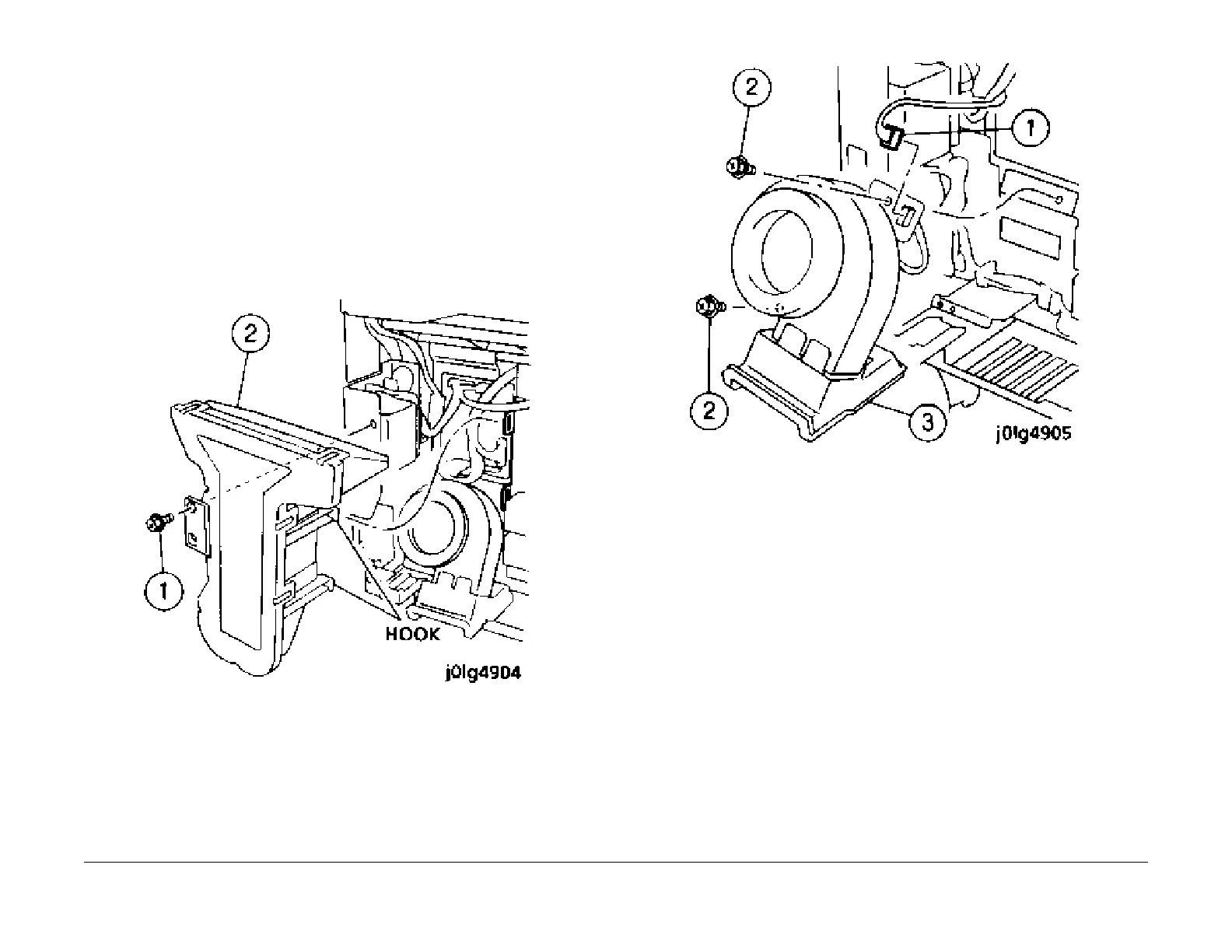

Figure 1 Remove the Duct
3. Remove the Suction Blower (Figu
re 2).
1. Disconnect the connector.
2. Remove the screws (2).
3. Remove the Suction Blower.
Figure 2 Remove the Suction Blower
4. Disconnect the AC Drive PWB connectors (F
igure 3).
1.
Release the clamps (2).
2. Disconnect the ESS SSR connectors (2).
3. Disconnect the AC Drive PWB connectors (8).
4. Disconnect P/J20.
