Xerox DocuColor 12/DCCS50 User Manual

1/05
4-74
DocuColor 12/DCCS50
REP 5.5.2
Reissue
Repairs and Adjustments
REP 5.5.2 Auger Belt
Parts List on PL 5.5
Removal
WARNING
Turn power off and disconnect the power plug.
NOTE: Protect the floor with a sheet of paper where the
removed Waste Toner Auger is to be
placed.
1. Remove the Waste Toner Auger (REP 5.
5.1).

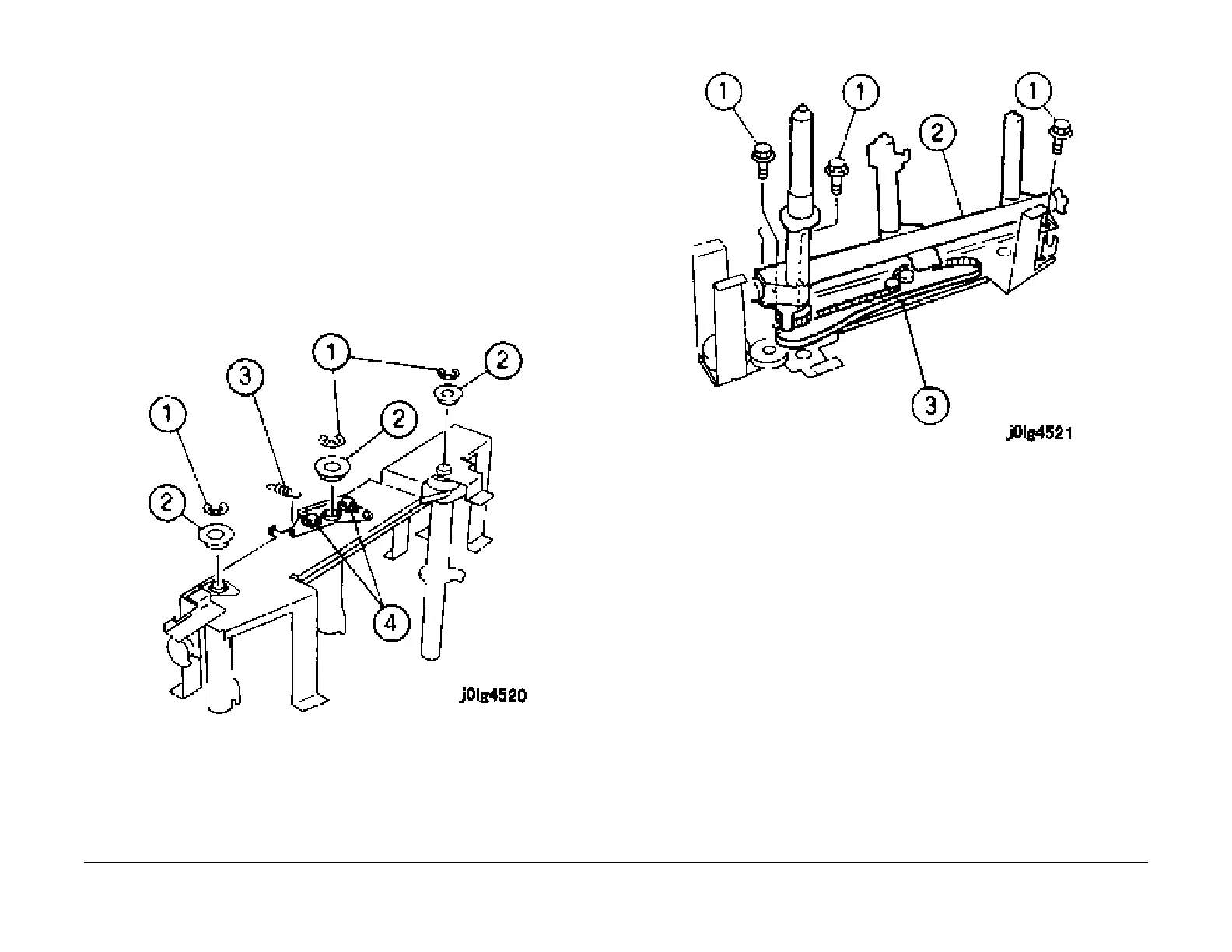

2. Remove the spring (Figu
re 1).
1. Remove the E-clips (3).
2. Remove the bearings (3).
3. Remove the spring.
4. Loosen the screws (2).
Figure 1 Remove the Spring
3. Remove the Auger Belt (Figu
re 2).
1. Remove the screws (3).
2. Remove the Auger Assembly.
3. Remove the Auger Belt.
Figure 2 Remove the Auger Belt
