REP 5.5.2
Repairs and Adjustments
Reissue
Installation
NOTE: Install the Auger Belt as shown in the figure below (Figure 3).
NOTE: Protect the floor with a sheet of paper where the Waste Toner Auger is to be installed.

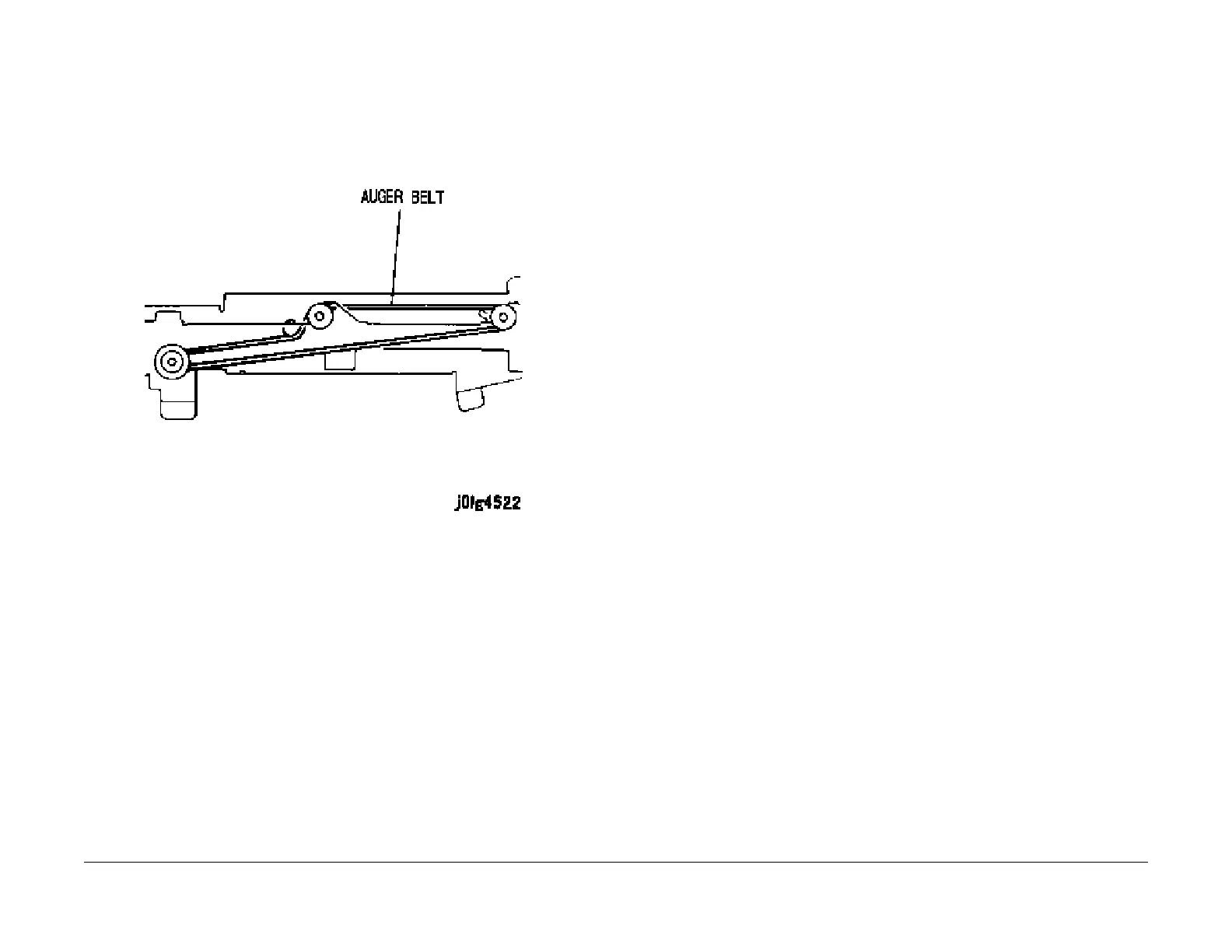

Figure 3 Install the Auger Belt
1. Reinstall the parts in the reverse order of disassembly.
