DocuColor 12/DCCS50

PL 3.2

Parts Lists

Reissue

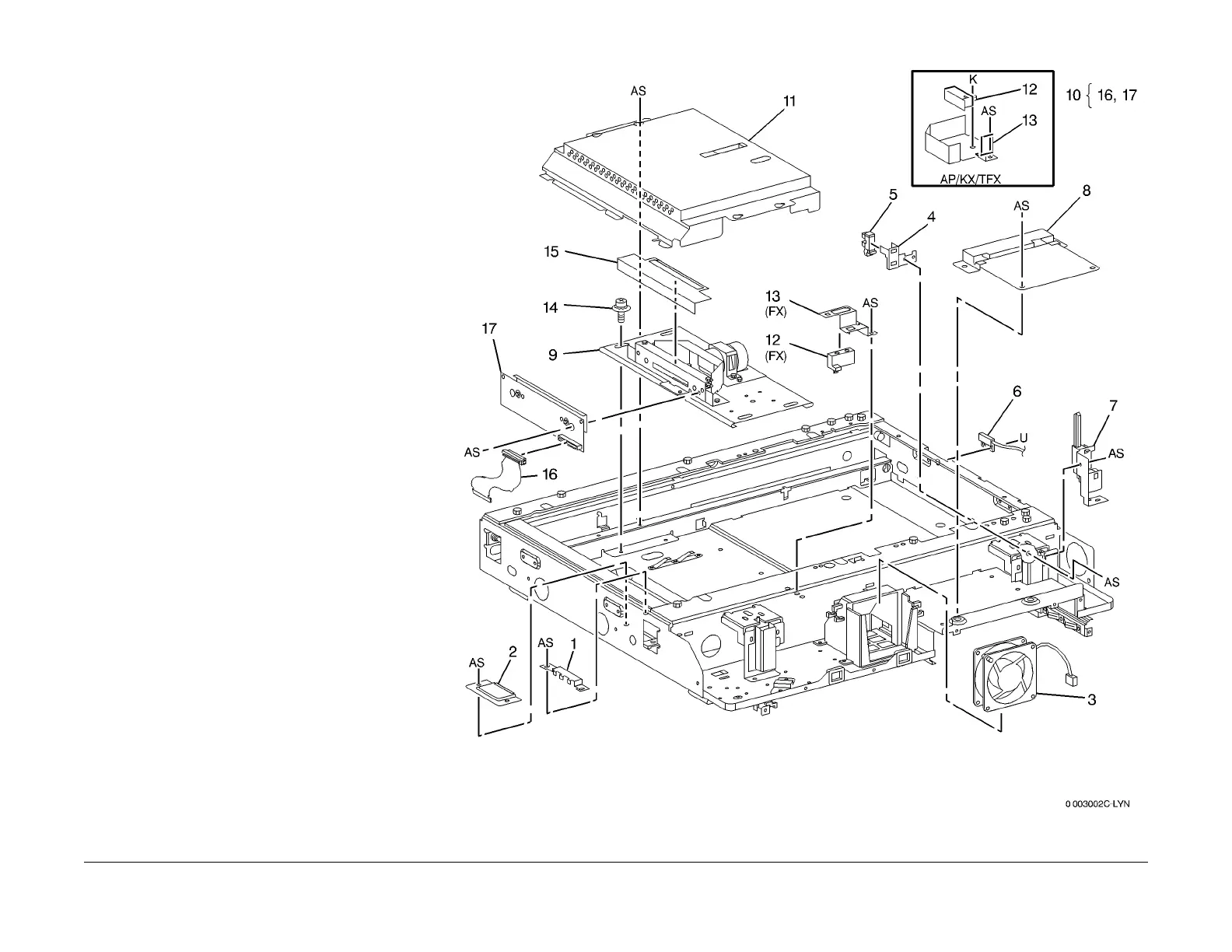

PL 3.2 CCD PWB, Sensor

Item Part Description

1 – Cable Stopper (Not Spared)

2 048K71860 Cable Stopper

3 127K23590 IPS Fan

4 – Bracket (Not Spared)

5 107E06650 IIT Regi. Sensor

6 110K08471 Platen Open Switch

7 130K57990 Platen Angle Sensor

8 160K48230 IIT Driver PWB

9 – Lens Assembly (Not Spared)

10 160K51931 CCD PWB Assembly (REP 3.2.1 )

11 – Lens Cover (Not Spared)

12 130K87150 APS Sensor

13 – Bracket (Not Spared)

14 – Screw (Not Spared)

15 – Shield (Not Spared)

16 – Ribbon Cable (P/O PL 3.2 Item 10)

17 – CCD PWB (P/O PL 3.2 Item 10)
