1/05

5-268

DocuColor 12/DCCS50

PL 5.3

Reissue

Parts Lists

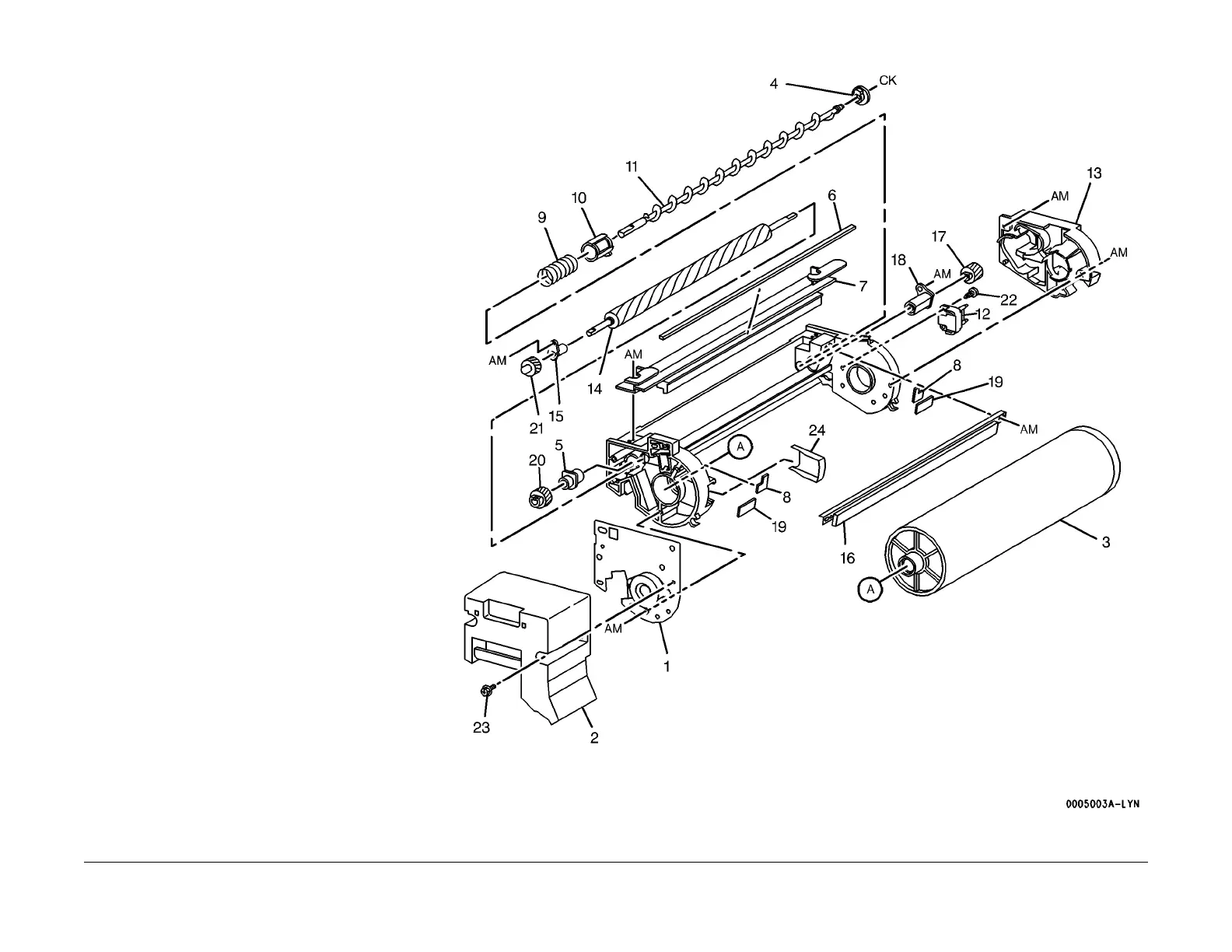

PL 5.3 Drum Component

Item Part Description

1 – Front Plate (Not Spared) (REP

5.3.1 )

2 802K044

28 Front Cover

3 – Drum (REP 5.3.1)

4 – Bearing (Not Spared)

5 – Bearing (Not Spared)

6 – Seal (Top Cover) (Not Spared)

7 – Top Cover (Not Spared)

8 – Seal (Blade Side) (Not Spared)

9 – Shutter Spring (Not Spared)

10 – Shutter Pipe (Not Spared)

11 059K09532 Auger (Not Spared)

12 – EP ROM PWB (Not Spared)

13 – Rear Cover (Not Spared)

14 042K91811 Cleaning Brush (REP 5.3.3 )

15 – Bearing (Not Spared)

16 033K92970 Cleaning Blade (REP 5.3.4 )

17 – Gear (Not Spared)

18 – Bearing (Not Spared)

19 035E40690 Side Seal

20 – Gear (Not Spared)

21 – Gear (Not Spared)

22 – Screw (Not Spared)

23 – Screw (Not Spared)

24 – Stopper (Not Spared)
