Stapler Functional Description
Reissue
Principles of Operation
Stapler Functional Description
The Stapler staples sets of paper.
1. Stapler Front Corner Sensor
Monitors the position of the Stapler Head for stapling in the front corner of a paper set.
2. Stapler Front Straight Sensor
Monitors the position of the Stapler Head for stapling at the front edge of a paper set.
3. Stapler Rear Straight Sensor
Monitors the position of the Stapler Head for
stapling at
the rear edge of a paper set.
4. Stapler Position Motor
Moves the Stapler Head into position (Figure 1
).

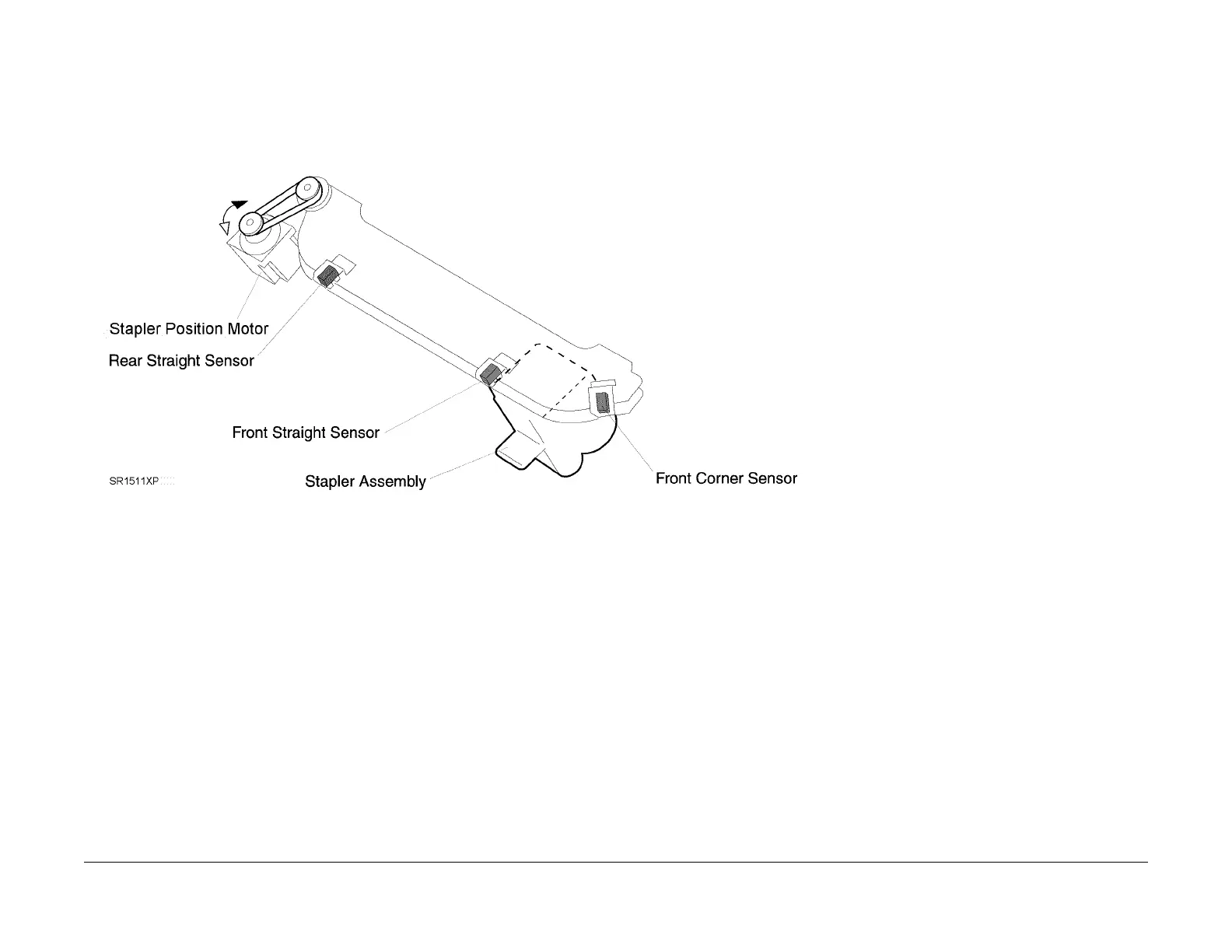

Figure 1 Stapler Unit and Position Motor
5. Stapler Position Motor
Drives the Stapler Head while it is stapling a paper set.
6. Eject Paddle Home Sensor
Monitors whether or not the Eject Paddle is in the home position.
7. Eject Paddle Motor
Drives the Eject Paddles to clamp a paper set onto the Compiler Tray prior to stapling.
8. Eject Paddle Drive Belt
Drives the Eject Paddles to clamp a paper set onto the Compiler Tray prior to stapling.
(Fi
gure 2)
