DocuColor 12/DCCS50

PL 2.1

Parts Lists

Reissue

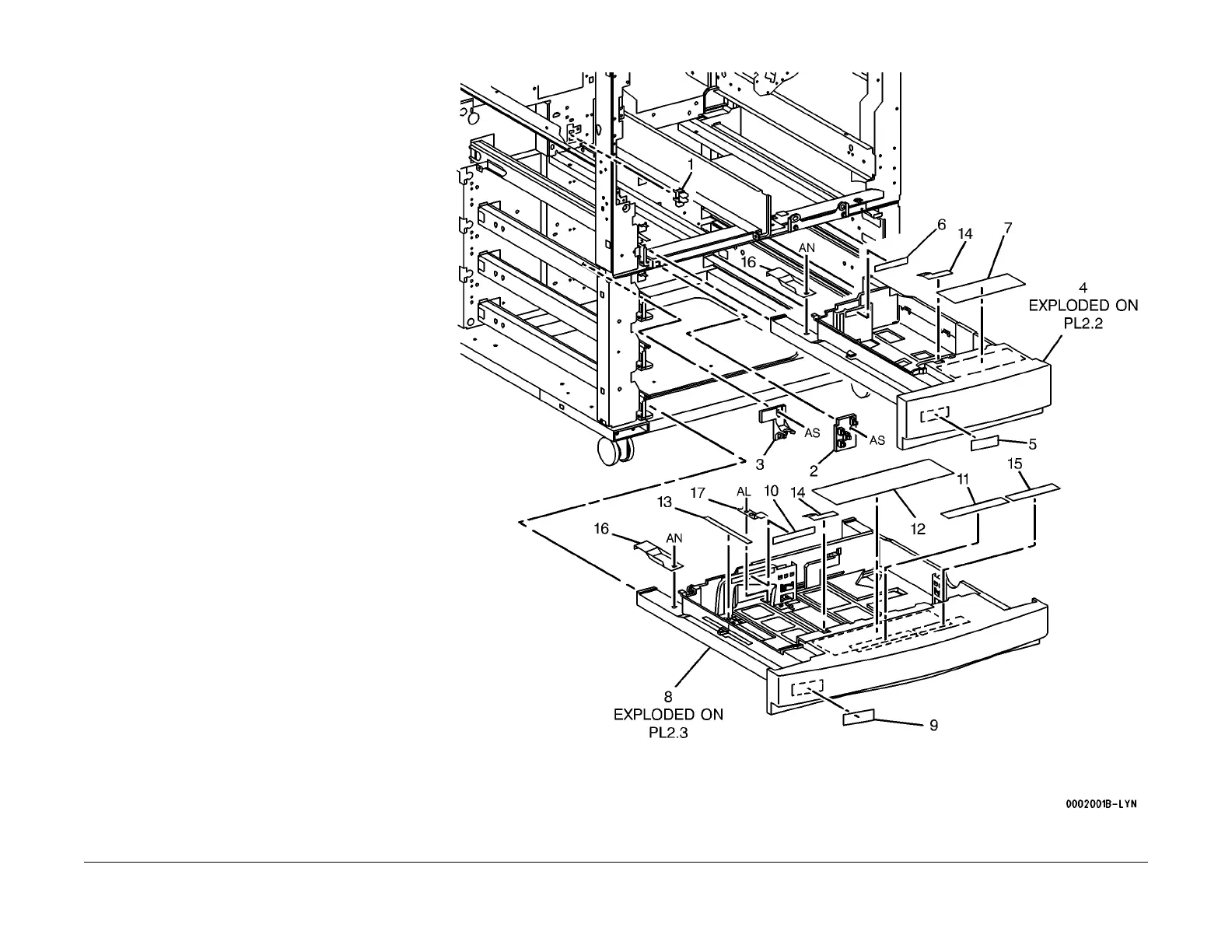

PL 2.1 Tray 1/2/3/4, Tray Sensor, Label

Item Part Description

1 130E82190 Tray 1 Set Sensor (REP 2.1.1 )

2 110K10460 Tray 2 Size Sensor, Tray 3 Size

Sensor,

Tray 4 Size Sensor (REP

2.1.2 )

3 003E38110 Stopper

4 050K33129 Tray 1 Assembly

5 891E76090 Label (Tray 1)

6 891E78030 Label (Max)

7 891E82980 Label (Installation)

8 050K40941 Tray 2 Assembly, Tray 3 Assembly,

4 Assembly

9 891E49510 Label (Tray 3)

– 891E49520 Label (Tray 4)

– 891E49060 Label (Tray 2)

10 – Label (Max) (Not Spared)

11 891E80410 Label (Size E End 1)

12 891E80481 Label (Installation)

13 891E80400 Label (Size E Side)

14 891E78020 Label (Max)

15 891E80420 Label (Size E End 2)

16 – Stopper (Not Spared)

17 – Stopper (Not Spared)
