REP 12.1.1
Repairs and Adjustments
Reissue
REP 12.1.1 DADF
Parts List on PL 12.1
Removal
WARNING
Turn power off and disconnect the power plug.
WARNING
The DADF is heavy (37.5lbs). Take care to avoid injury when handling the DADF.
1. Disconnect the connector (Figu
re 1).
1. Disconnect the connector.

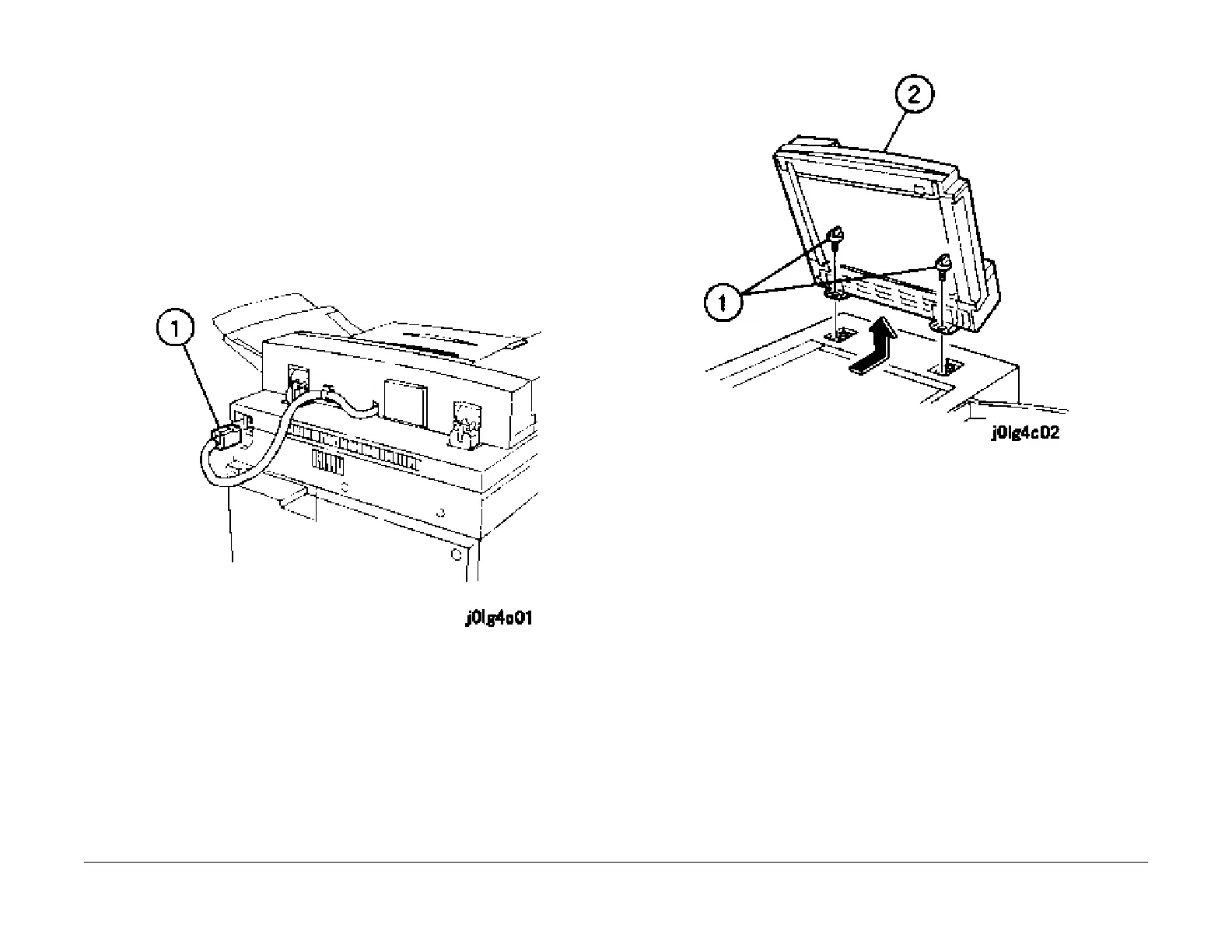

Figure 1 Disconnect the Connector
2. Remove the DADF (Fi
gu
re 2).
1. Remove the screws (2).
2. Remove the DADF.
Figure 2 Remove the DADF
Installation
1. Reinstall the parts in the reverse order of disassembly.
