1/05
4-7
DocuColor 12/DCCS50
REP 1.4.1
Repairs and Adjustments
Reissue

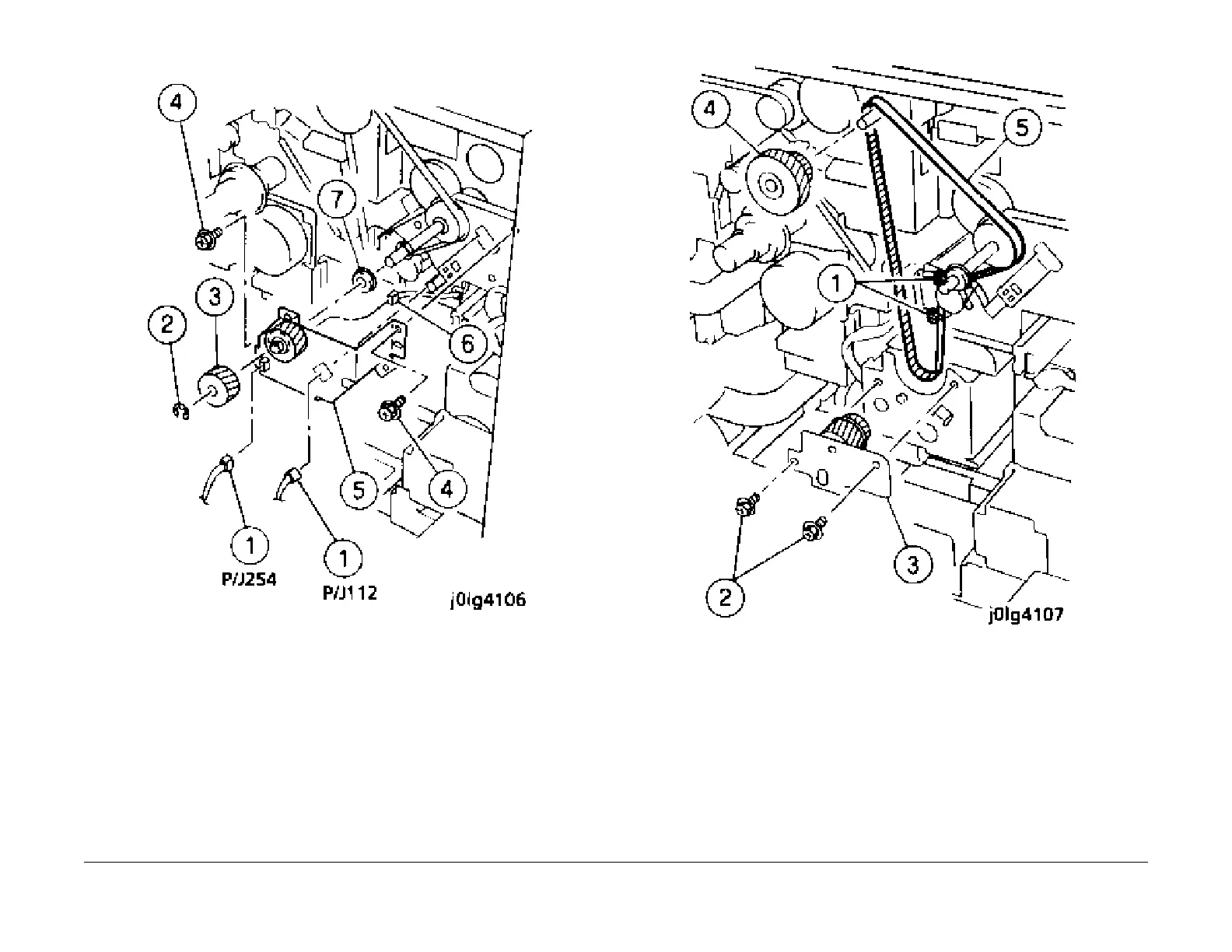

Figure 4 Removing the Auger Drive
9. Remove the belt (Figu
re 5).
1. Loosen the screws (2) and the belt tension.
2. Remove the screws (2).
3. Remove the gear pulley.
4. Remove the gear pulley.
5. Remove the belt.
Figure 5 Removing the Belt
Installation
1. Reinstall the parts in the reverse order of disassembly.
