Xerox DocuColor 12/DCCS50

1/05
8a-34
DocuColor 12/DCCS50
PL 15.2
Reissue
High Capacity Feeder

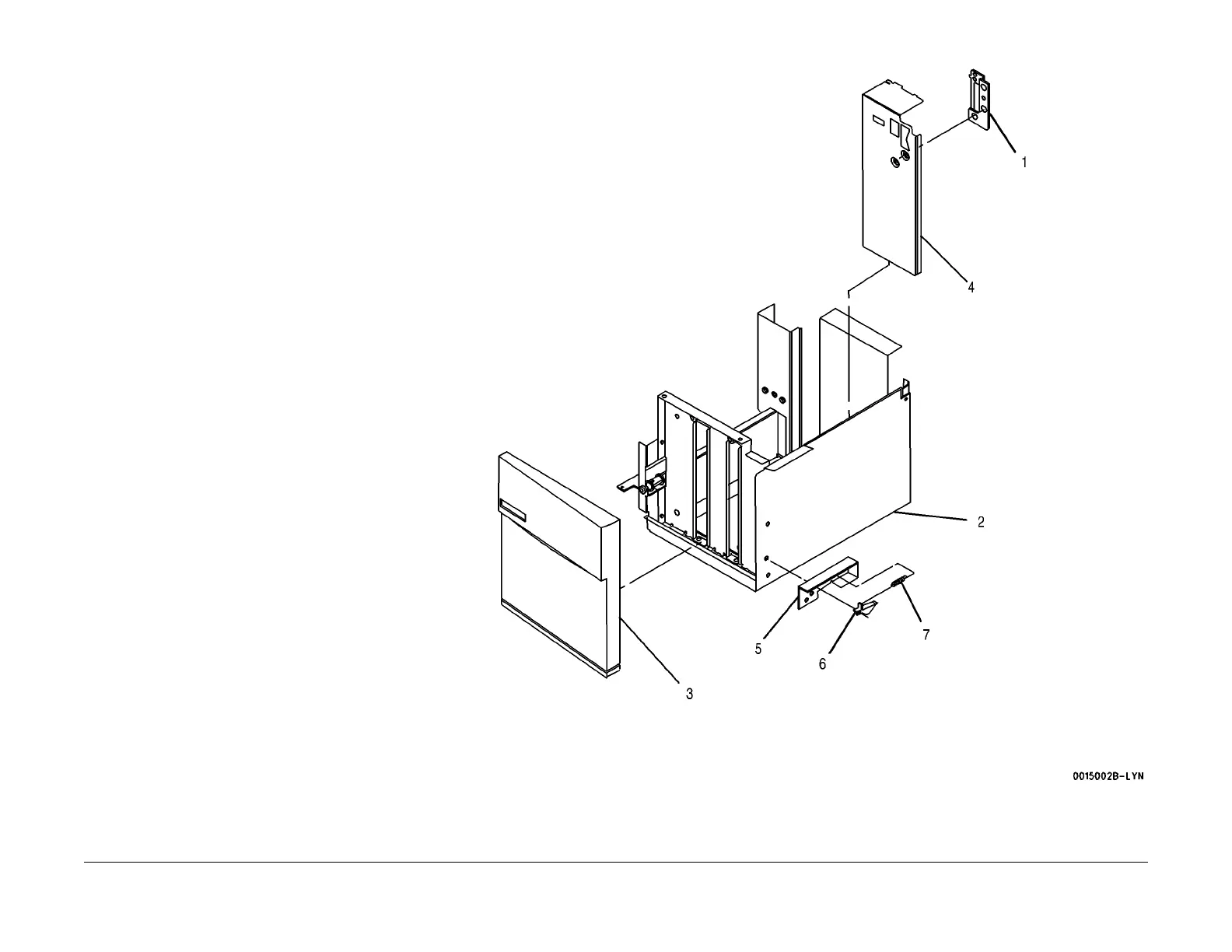

PL 15.2 Elevator Assembly: Part 2 OF
3
Item Part Description
1 – Flexure Spring (Not Spared)
2 – Elevator Housing (Not Spared)
3 802K21821 Front Cover (Includes Brackets)
4 – Paper Guide (Not Spared)
5 – Left Hand Bracket (Not Spared)
6 – Latch (Not Spared)
7 – Spring (Not Spared)
