1/05
4-37
DocuColor 12/DCCS50
REP 2.15.3
Repairs and Adjustments
Reissue
REP 2.15.3 Regi. Motor
Parts List on PL 2.15
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Remove the Regi. Unit (REP 2.14.
1).
3. Remove the Regi. Motor (Figure 1
).
1. Disconnect the connector.
2. Release the clamps (2) and remove the wire.
3. Remove the wire from the edge saddle.
4. Remove the screws (2).
5. Remove the Regi. Motor.

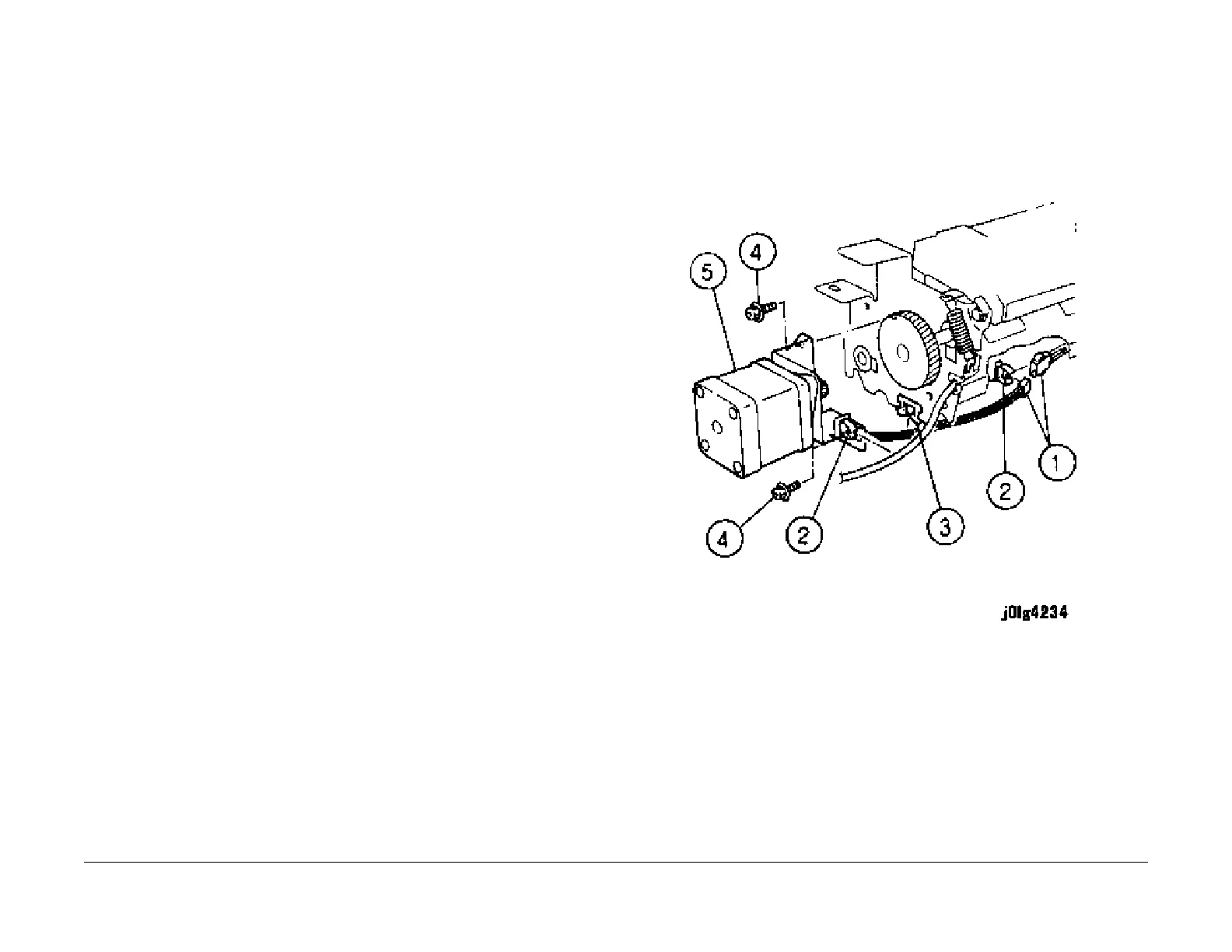

Figure 1 Removing the Regi. Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
To Next Page
