Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-65
DocuColor 12/DCCS50
REP 15.1.6, REP 15.1.7
Finisher/Sorter
Reissue
REP 15.1.6 Exit Lower Baffle and Pinch Roll
Parts List on PL 18.6
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Door Assembly (REP 15.
3.4).
2. Decurler Inner Cover (REP 15.3.14
).
3. Decurler Rear Cover (REP 15.3.
13).
4. Remove the Exit Lower Baffle (Figu
re 1).
1. Remove the screws (2).
2. Remove the Exit Lower Baffle.
3. Remove Pinch Rolls.

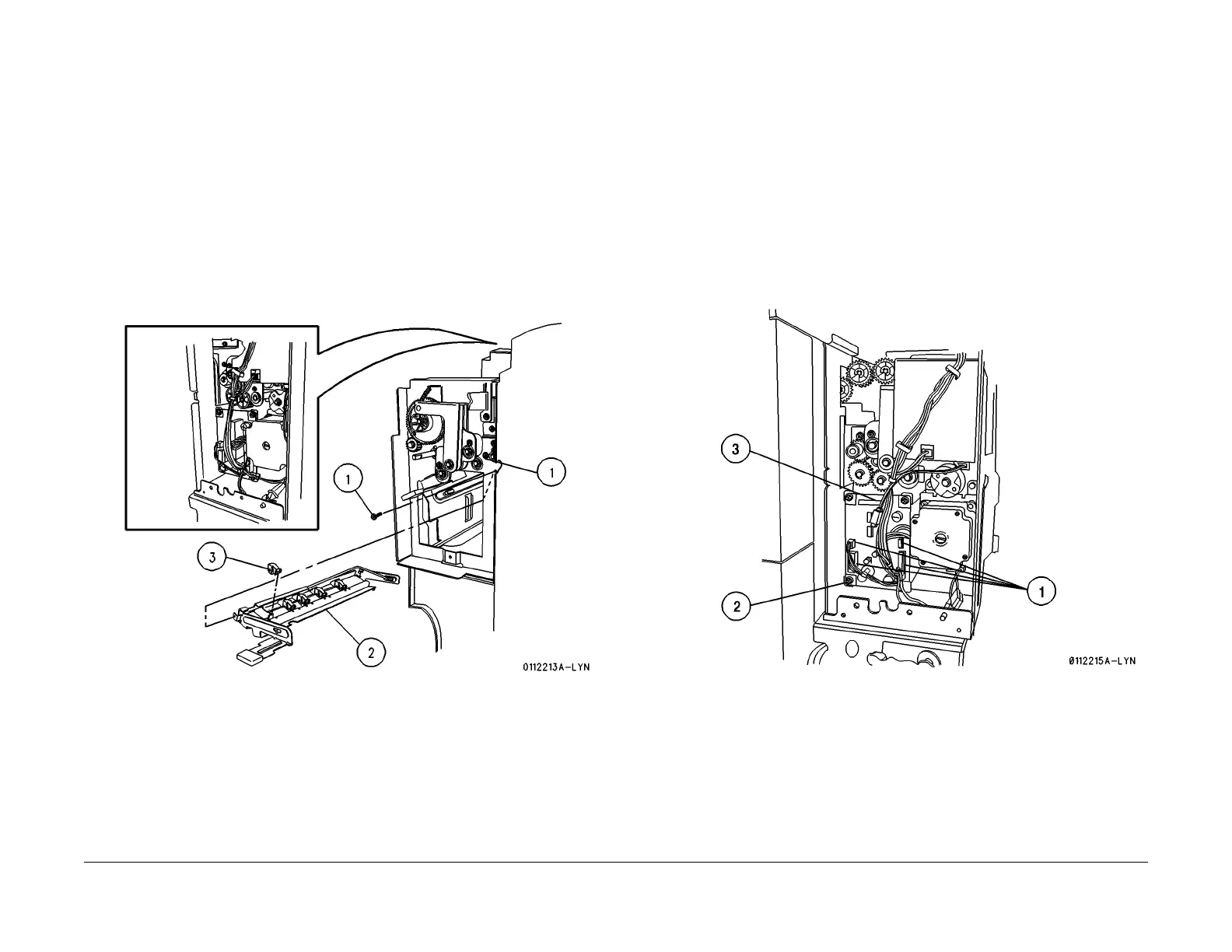

Figure 1 Remove the Exit Lower Baffle
Replacement
Reinstall the Exit Lower Baffle and Pinch Roll in the reverse order of disassembly.
REP 15.1.7 Decurler PWB
Parts List on PL 18.6
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Rear Cover (REP 15.3.
13).
NOTE: Observe the ESD procedures when removing the Decurler PWB.
2. Remove the Decurler PWB (Figure 1).
1.
Disconnect the PWB connectors (4).
2. Remove the screws (4).
3. Remove the PWB.
Figure 1 Remove the Decurler PWB
Replacement
Reinstall the Decurler PWB in the reverse order of disassembly.
