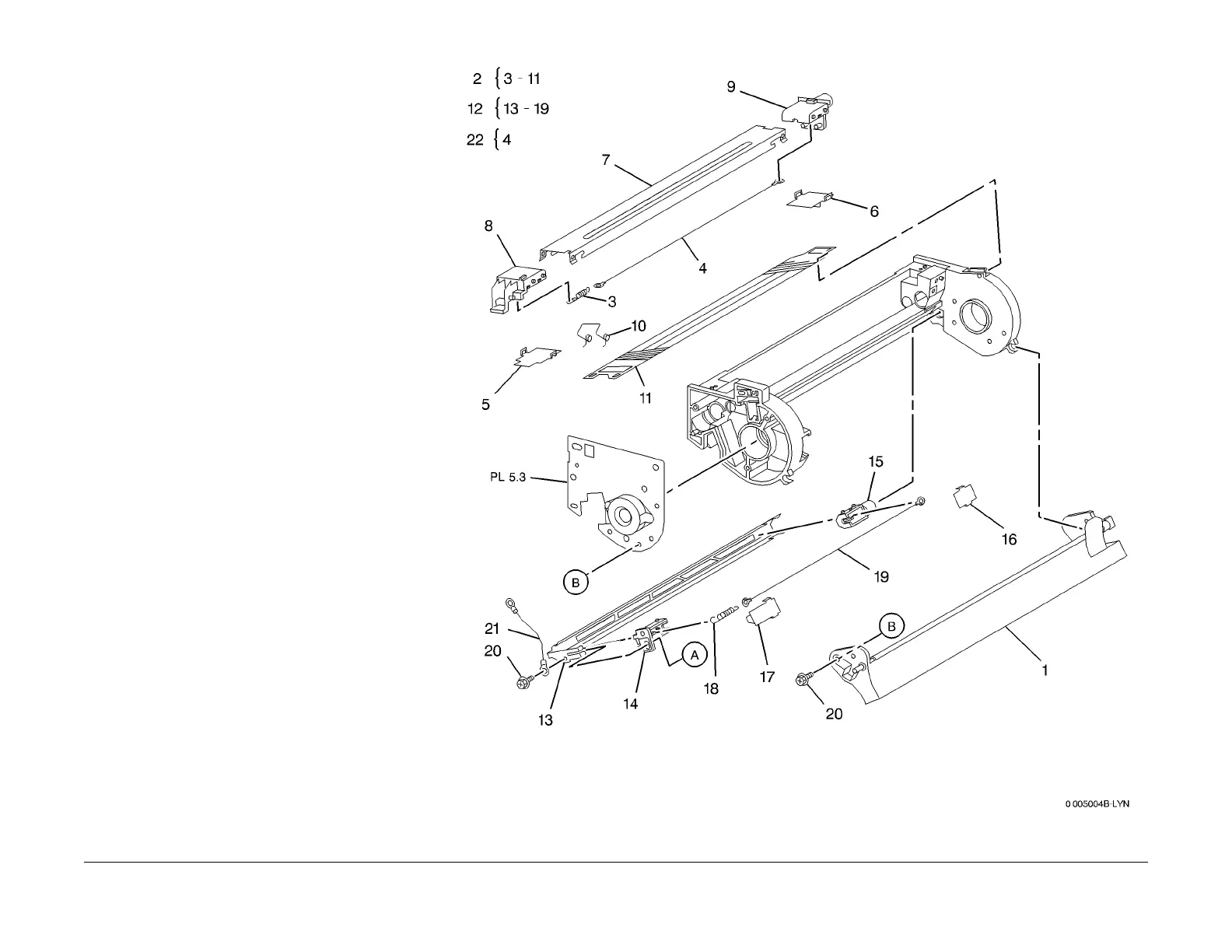

PL 5.4 Charge/Pre Clean Corotron
Item Part Description
1 – BPO Roll and Duct (Not Spared)
2 125K03650 Charge Corotron Assembly
3 – Spring (P/O PL 5.4 Item 2)
4 – CC Wire (P/O PL 5.4 Item 2) (REP
5.
4.1 )
5 – A
rc Shield (Front) (P/O PL 5.4 Item
2)
6 – Arc Shield (Rear) (P/O PL 5.4 Item
2)
7 – CC Shield (P/O PL 5.4 Item 2)
8 – Insulator (Front) (P/O PL 5.4 Item
2)
9 – Insulator (Rear) (P/O PL 5.4 Item 2)
10 – Grid Spring (P/O PL 5.4 Item 2)
11 – CC Grid (P/O PL 5.4 Item 2)
12 125K93062 Pre Clean Corotron Assembly
13 – PCC Shield (P/O PL 5.4 Item 12)
14 118E12251 Insulator (Front)
15 118K91900 Insulator (Rear)
16 – Arc Shield (Rear) (Not Spared)
17 – Arc Shield (Front) (Not Spared)
18 009P62935 Spring
19 117K92100 PCC Wire (REP 5.4.2 )
20 – Screw (Not Spared)
21 – Earth Wire (Not Spared)
22 604K22290 Wire Repair Kit
