Repairs and Adjustments
NOTE: Install the bearings at both sides of the Bias Roll in the positions shown in the figure
below (Figure 4).

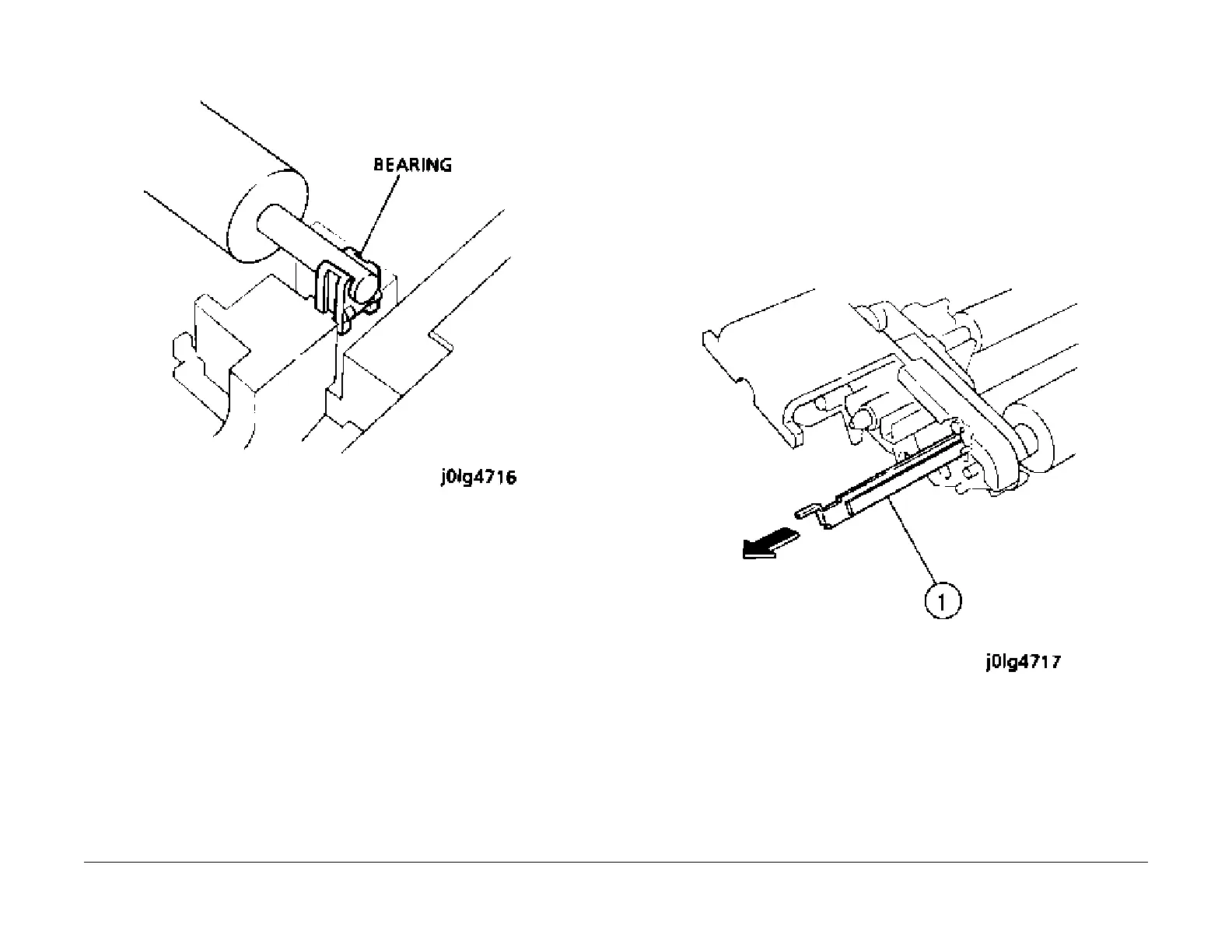

Figure 4 Install the Bearings
1. Reinstall the parts in the reverse order of disassembly.
REP 7.6.2 Drive Roll
Parts List on PL 7.6
Removal
WARNING
Turn power off and disconnect the power plug.
NOTE: When removing the IBT, make sure that the IBT Belt does not touch any other part.
NOTE: Carefully place the removed IBT on a flat surface (covered
with sheet of paper).
1. Remove the IBT Belt (REP 7.
5.1).
2. Remove the Drive Roll Cleaning Blade (Figure 1).
1.
Remove the Drive Roll Cleaning Blade.
Figure 1 Remove the Drive Roll Cleaning Blade
3. Remove the gear (Figure
2).
1. Remove the screw.
2. Remove the gear.
