1/05

3-27

DocuColor 12/DCCS50

IQ 22 Mottle RAP, IQ 23 Poor Color Balance RAP

Image Quality

Reissue

• Go to the IQ 41 1st BTR HVPS RAP. If the 1st BTR Power Supply is good, replace

the 1st BTR (PL 7.6).

The problem is present in all four colors

This appears to be a “mottle-like” bead carryout problem (see Defect Sample 28), go to IQ

19 Be

ad Carryout RAP to continue troubleshooting.

Perform ADJ 9.1.

1 Max Setup. If any Fault Codes are generated during the setup, use the

RAPs for those Fault Codes to troubleshoot the problem. If the high density areas of the copy

appear to light, perform a manual tone up and refer to the IQ 19 RAP.

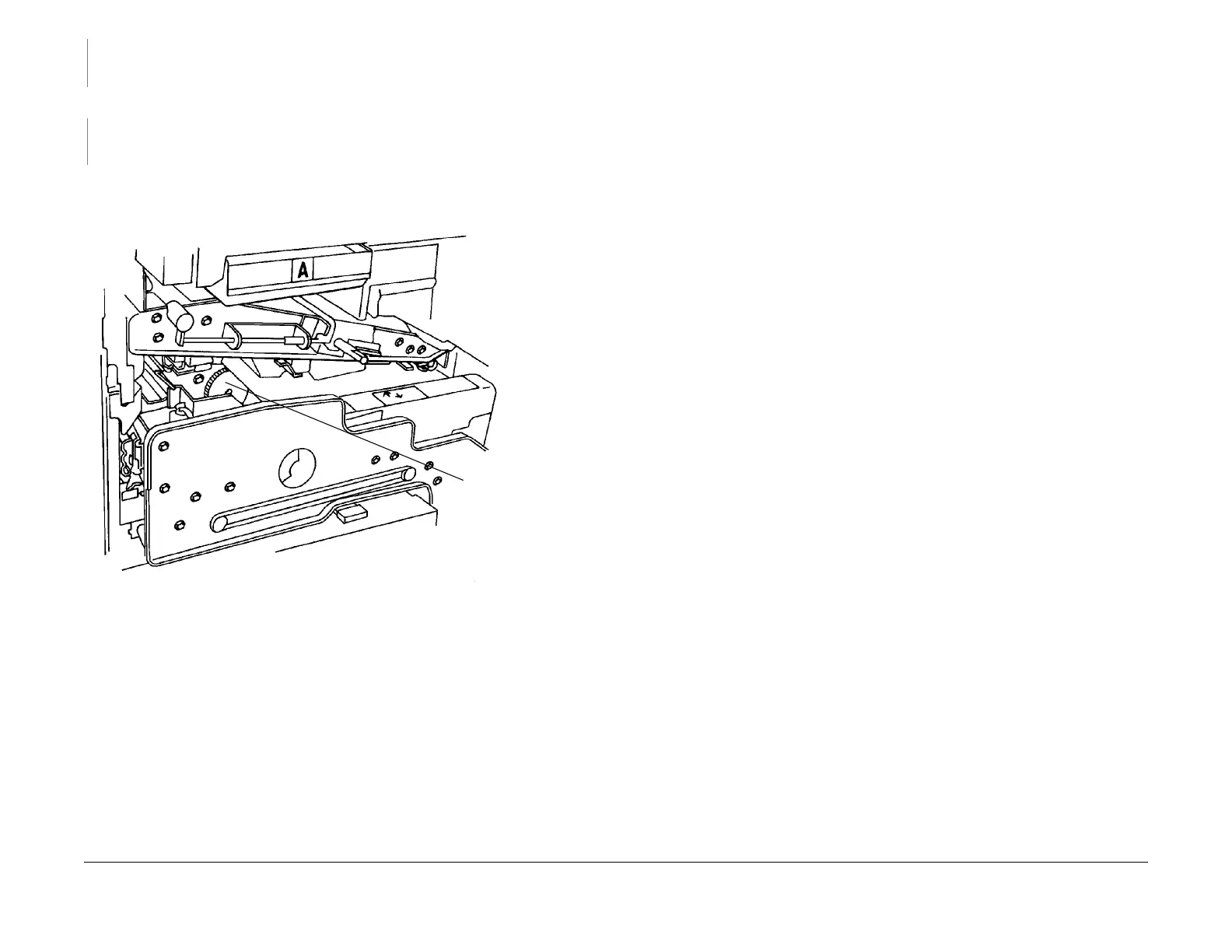

Figure 1 Registration Drive Gear

IQ 23 Poor Color Balance RAP

Procedure

Perform ADJ 9.1.1 Max Setup.

Registration

Drive Gear
