Xerox DocuColor 12/DCCS50 User Manual

1/05
10-167
DocuColor 12/DCCS50
Compiler/Tamper Functional Description
Principles of Operation
Reissue

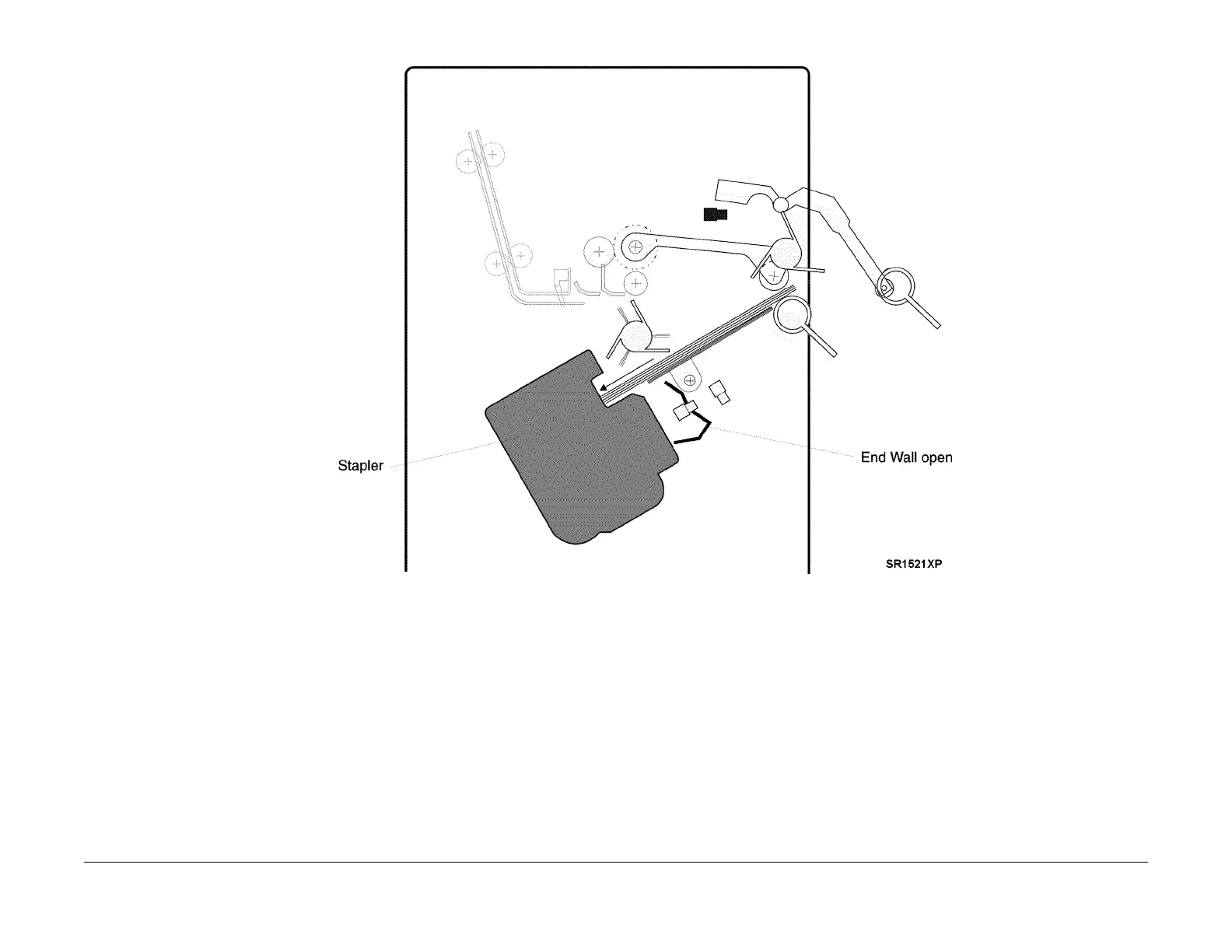

Figure 4 Paper Set Positioned for Stapling
Compiler /Tamper Paper Path Components
1. Eject Roll
Drives paper into the Compiler Tray
2. Compiler Tray
Staging area used to collect sheets of paper into sets for stapling.
3. End Wall
Closes the end of the Compiler Tray so paper can be collected into sets. Is moved out of
t
he way when t
he set is ready to be sent to the Stapler.
4. End Wall Motor
5. Tamper
Taps the sides of every sheet to square up the edges before stapling.
6. Compiler Tray Solenoid
Tilts the Compiler Tray so the paper set slides into the Stapler.
