1/05
4-77
DocuColor 12/DCCS50
REP 6.1.1
Repairs and Adjustments
Reissue
REP 6.1.1 Rotary PWB
Parts List on PL 6.1
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open/close the IOT Control PWB chassis (REP 9.2.
1).

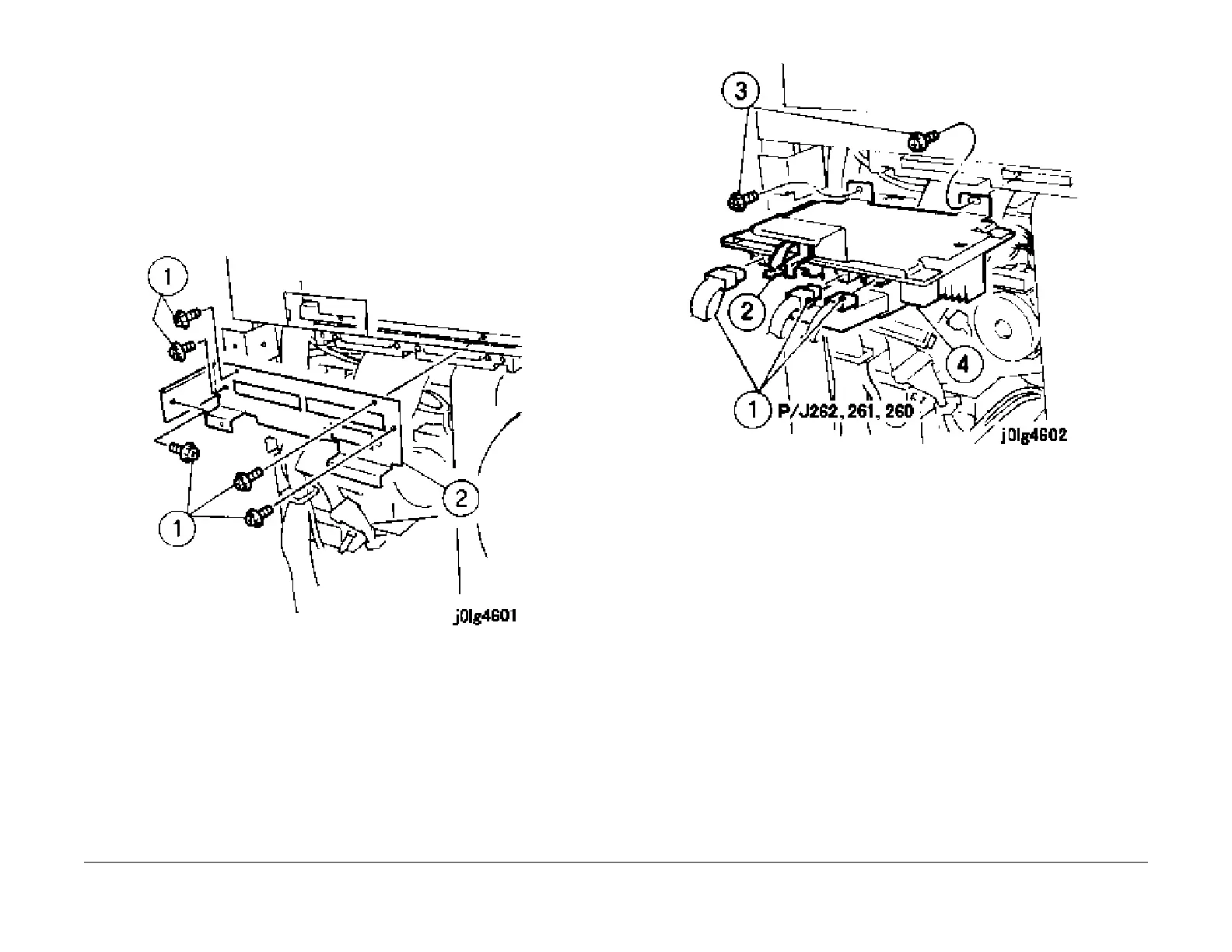

2. Remove the bracket (Figu
re 1).
1. Remove the screws (5).
2. Remove the bracket.
Figure 1 Remove the Bracket
3. Remove the Rotary PWB with the plate (Figu
re 2).
1. Disconnect the connectors (3).
2. Release the clamp and remove the wire.
3. Remove the screws (2).
4. Remove the plate.
Figure 2 Remove the Rotary PWB and Plate
4. Remove the Rotary PWB (Fi
gu
re 3).
1. Remove the screws (4).
2. Remove the Rotary PWB.
To Next Page
