1/05
4-96
DocuColor 12/DCCS50
REP 6.7.2
Reissue
Repairs and Adjustments
REP 6.7.2 Trickle Auger
Parts List on PL 6.7
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open/close the IOT Control PWB Chassis (REP 9.
2.1).
2. Remove the Flywheel (REP 1.
3.1), (See Figure 1).
3. Remove the bracket (Figu
re 1).
1. Remove the screws (5).
2. Remove the bracket.

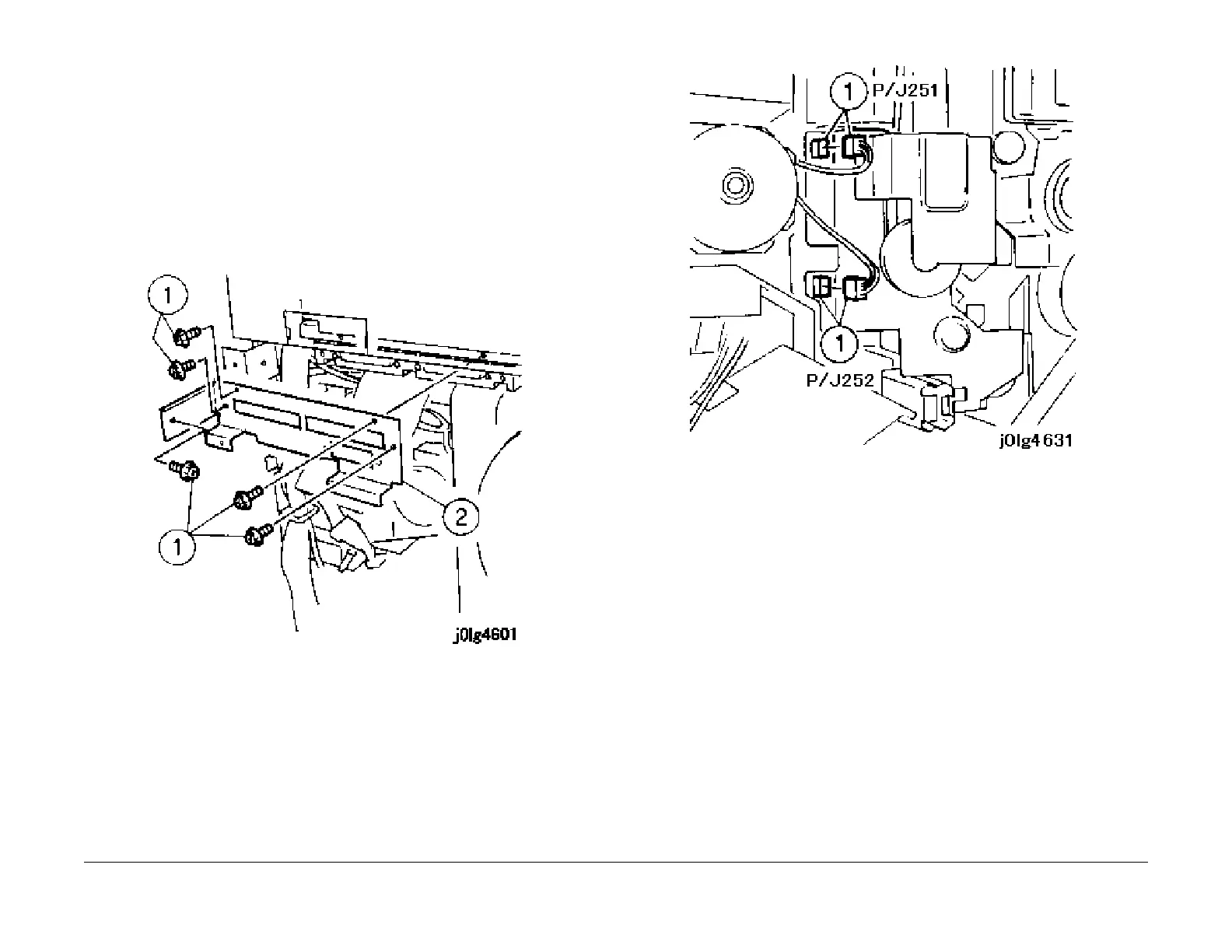

Figure 1 Remove the Bracket
4. Remove the Rotary Developer Duct (PL 10.2 I
tem 4)
5. Disconnect the connector (Figu
re 2).
1. Disconnect the connectors (2).
Figure 2 Remove the Rotary Developer Duct
6. Remove the bracket (F
igur
e 3).
1. Loosen the screw.
2. Remove the spring.
3.Remove the screws (2).
4. Remove the bracket.
manuals4you.commanuals4you.com
To Next Page
